4. Opentheprinterdoorsandlocatethetubelatchontherollerwaste
pump.

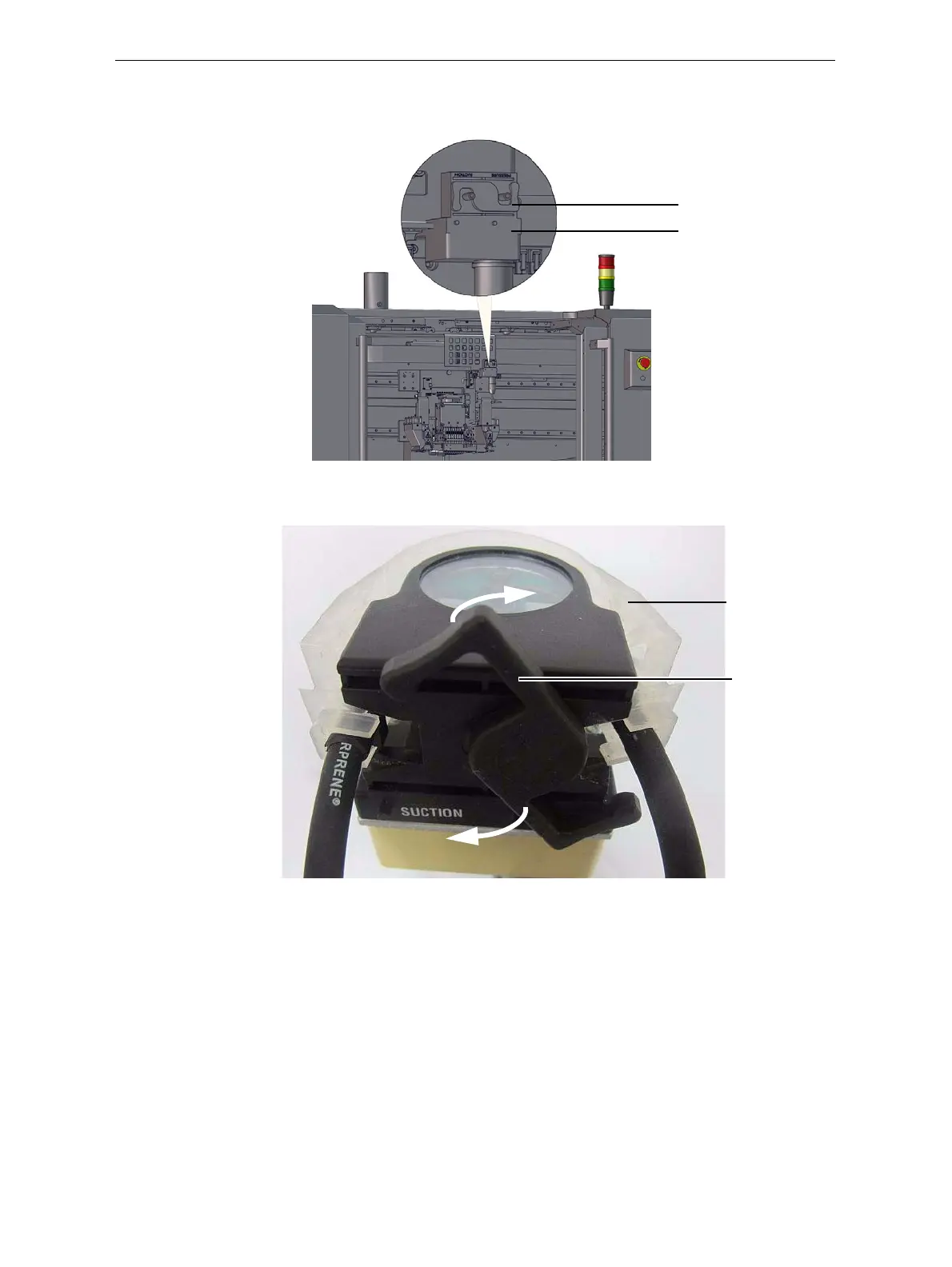

Figure 6-91: Pump tube latch
5. Releasethetubelatch,asshown.
Figure 6-92: Releasing the tube latch
Tube latch
Roller waste pump
Tube holder
Latch
