6. Separatethetubeholderfromthepumpassembly.
Figure 6-93: Tube holder removed from pump assembly
7. Removethetubefromthetubeholderandsavethetwo partsofthe
clampforre‐assembly.
8. Carefullydetachthetubeatbothends.Usethecleaningclothsto
preventmaterialleakingfromthetubes.
9. Discardtheoldtubeandthecleaningcloths.
10. Attachtheendsofthenewtube.
11. Placethe
tubeclampontothetubeasbefore,andinsertthetubeinto
thetubeholder,makingsurethattheflatsurfaceoftheclampfaces
outward.
Tube
Tube clamp
Tube holder
These items contain uncured printing material. Dispose of them in
accordance with environmental and safety requirements.

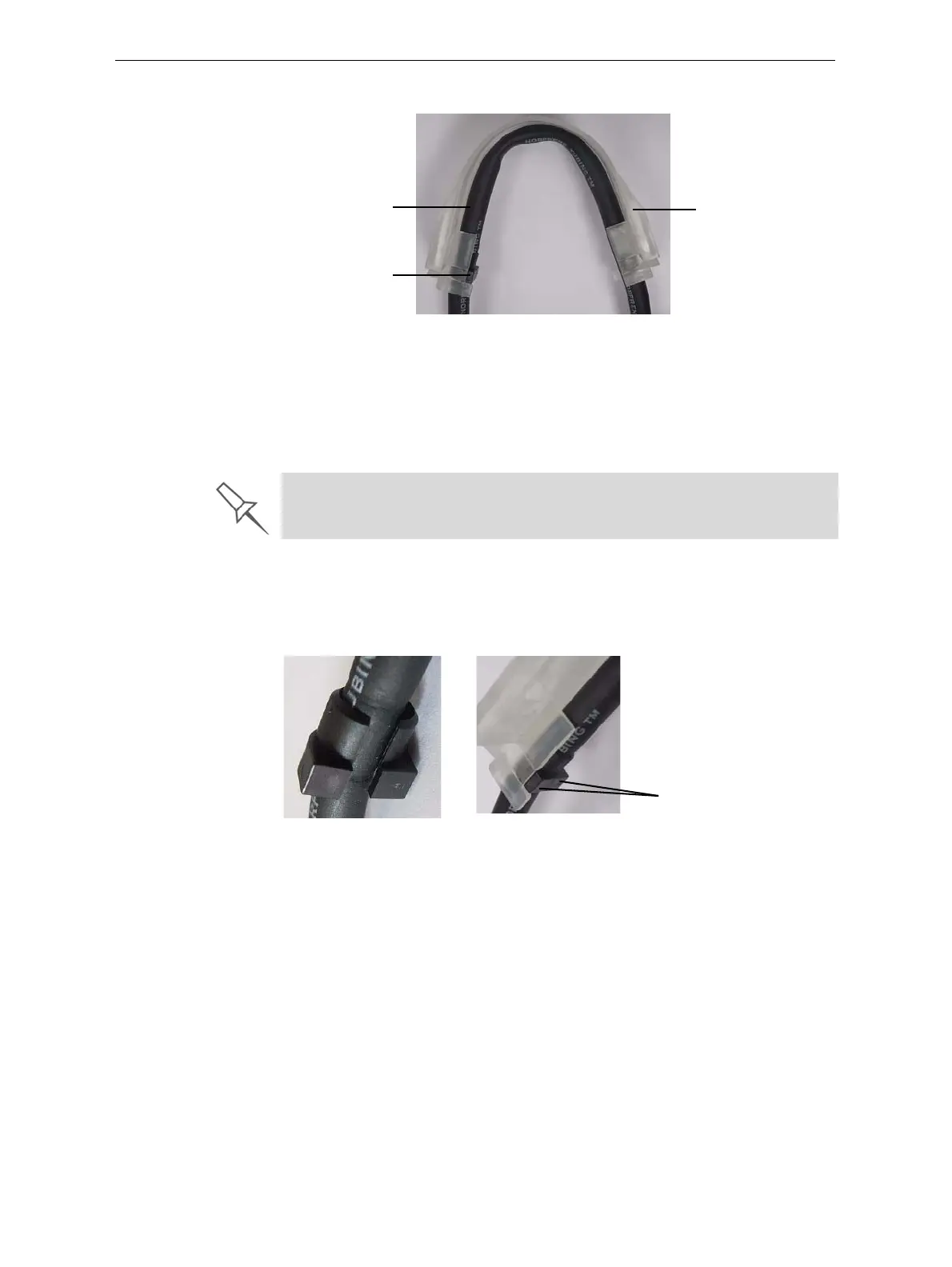

Figure 6-94: Tube clamps Figure 6-95: Tube inserted into tube holder
Flat surfaces face outward
