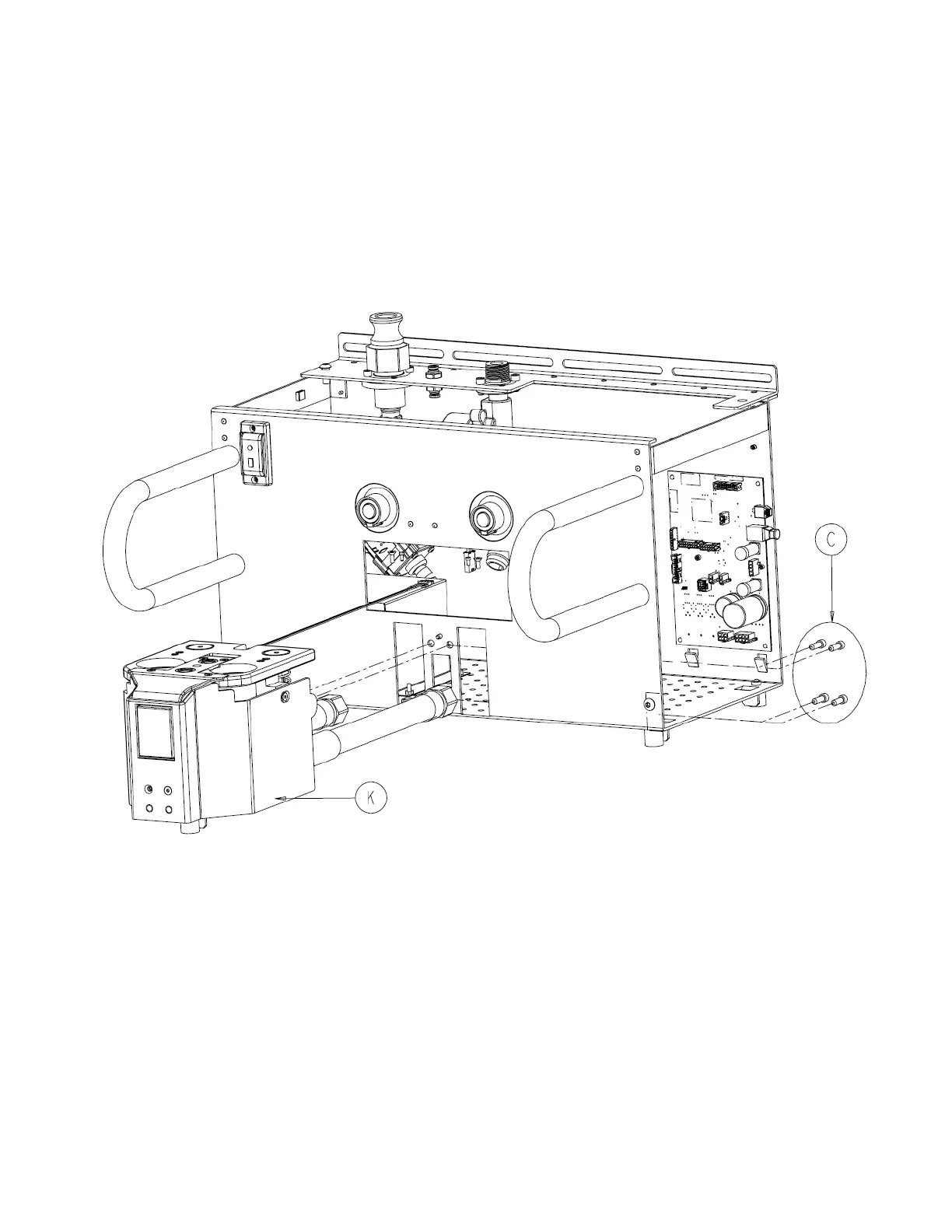

10. Using a 3/16” allen wrench, remove the four socket head cap screws (P/N 0004-518-
000) (C) from inside chassis assembly from the actuator assembly (P/N 0702-014-
100) (K). Remove the actuator assembly (P/N 0702-014-100) (K) and carefully guide
the wiring harnesses through the opening in the chassis. Ensure the connectors do not
get caught on the docker chassis on the way out.
