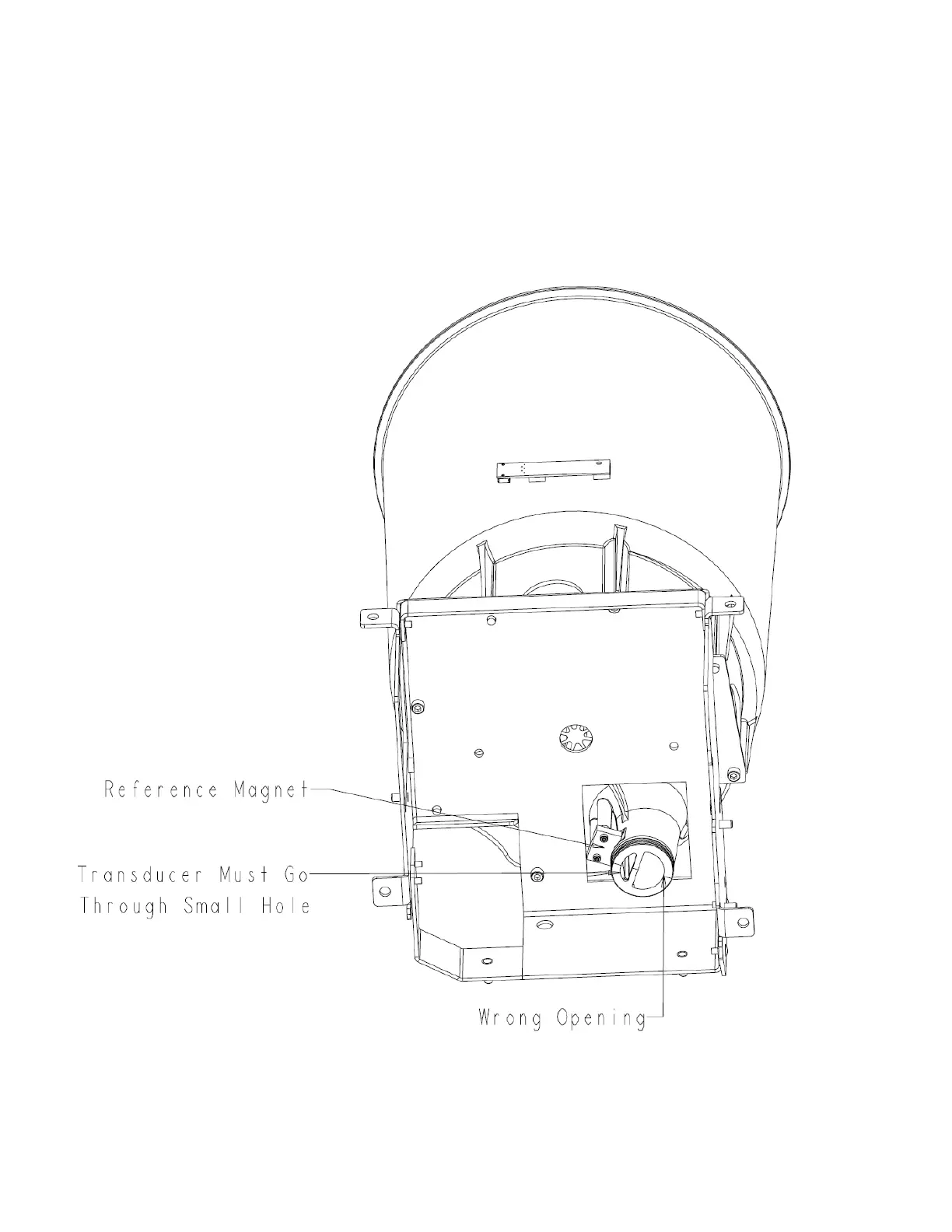

3. Be especially careful when reinstalling the fluid level transducer. There are two
compartmented sides at the opening in the bottom of the large canister. The transducer
must be routed through the small opening. The reference magnet for the volume
sensing subsystem is adjacent to the small opening. If the transducer rod is not routed
correctly, the rover will not read fluid volume in the large canister.
2-32
