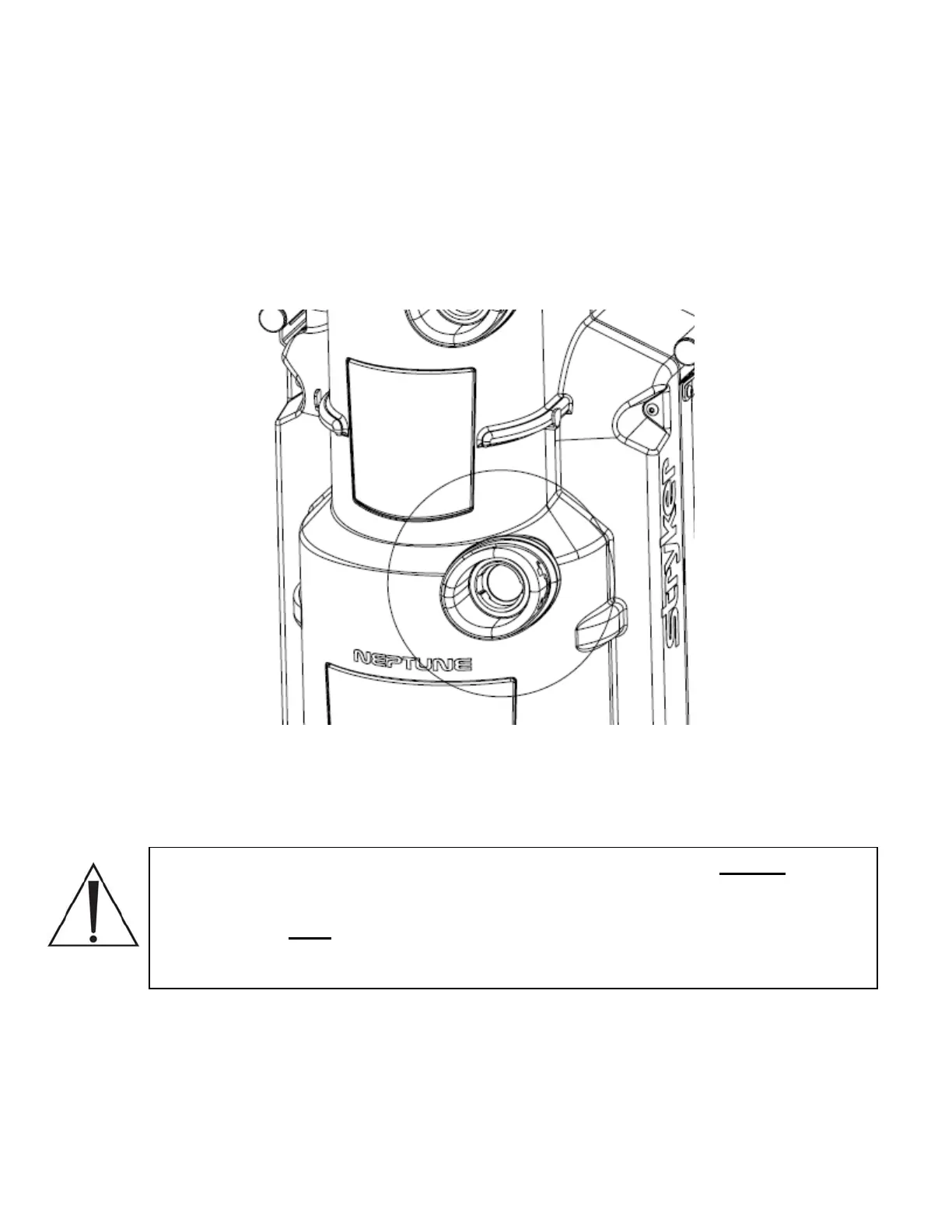

5. When reinstalling the front cover assembly, make sure that the manifold receptacle
opening is lined up properly. Failure to do so may cause the grey manifold boot to come
loose. To allow sufficient clearance when reinstalling the front cover, follow the
procedure on p. 2-5 for removing the Rear Panel Assembly. The technician should
remove the rear panel, reinstall the front cover, and finally reinstall the rear panel
assembly.
Caution: The rear panel illustration shows the rear panel assembly without the
HEPA filter, HEPA filter door, and the smoke filter installed. The technician must
remove the HEPA filter door on the lower left side of the rear panel and then remove
the HEPA filter prior
to removing the rear panel. Also, ensure the smoke evacuator
filter is not installed. Failure to do so will prevent the technician from removing the
cover properly and may cause damage to the equipment.
2-53
