Stryker Neptune 2 Service And Installation Manual

9. Disconnect the smoke blower wiring harness labeled 702-001-872. (white connector
with purple wires)
10. Disconnect the grey cable labeled smoke sensor. (grey cable with black connector)

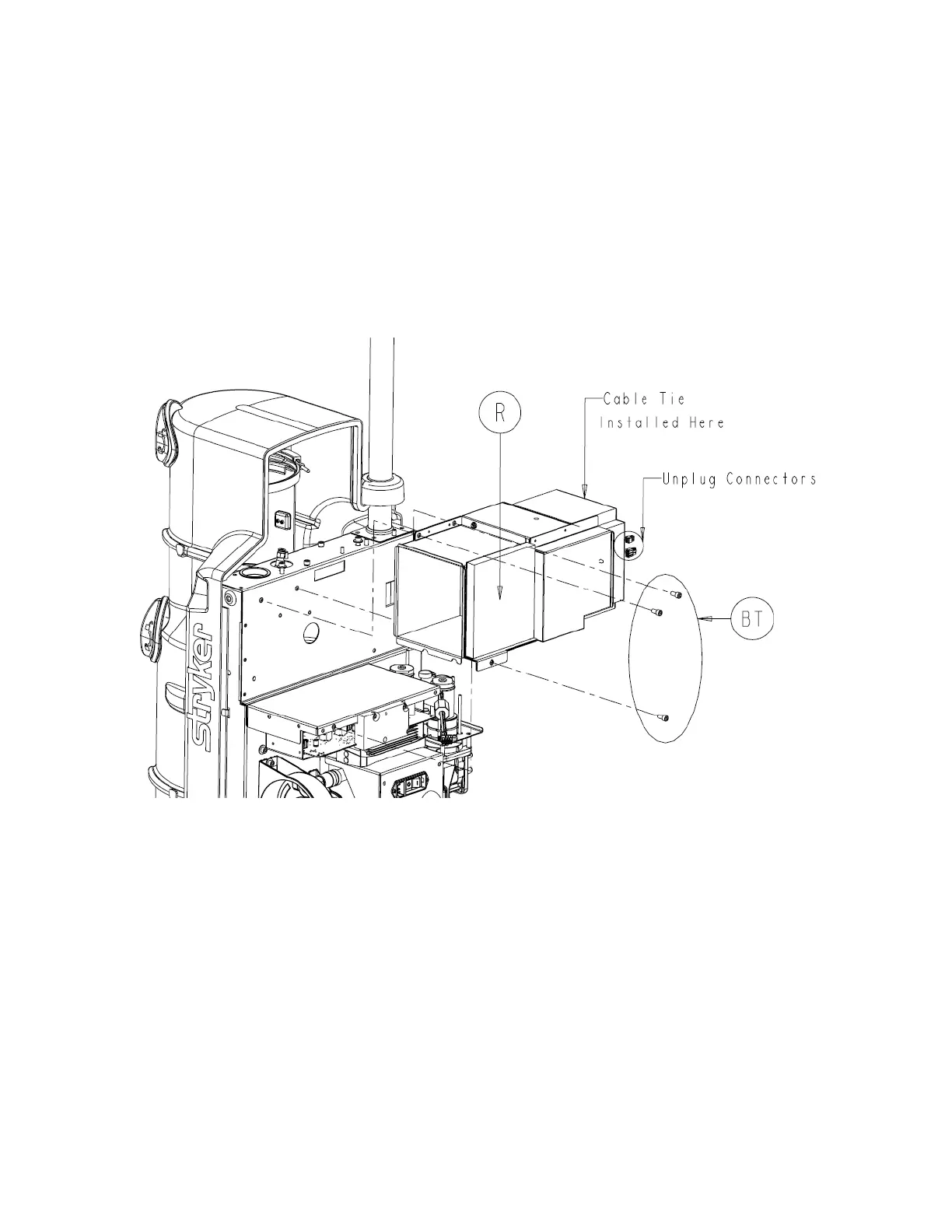

11. Remove the three socket head cap screws (P/N 0004-645-000) (BT) that hold the
smoke evacuator assembly (P/N 0702-001-400) (R) to the rover chassis.
12. Remove the smoke evacuator and set aside.
2-55
