4. If the silencer manifold was removed in step 3, set the manifold aside. If not then
proceed to step 5.

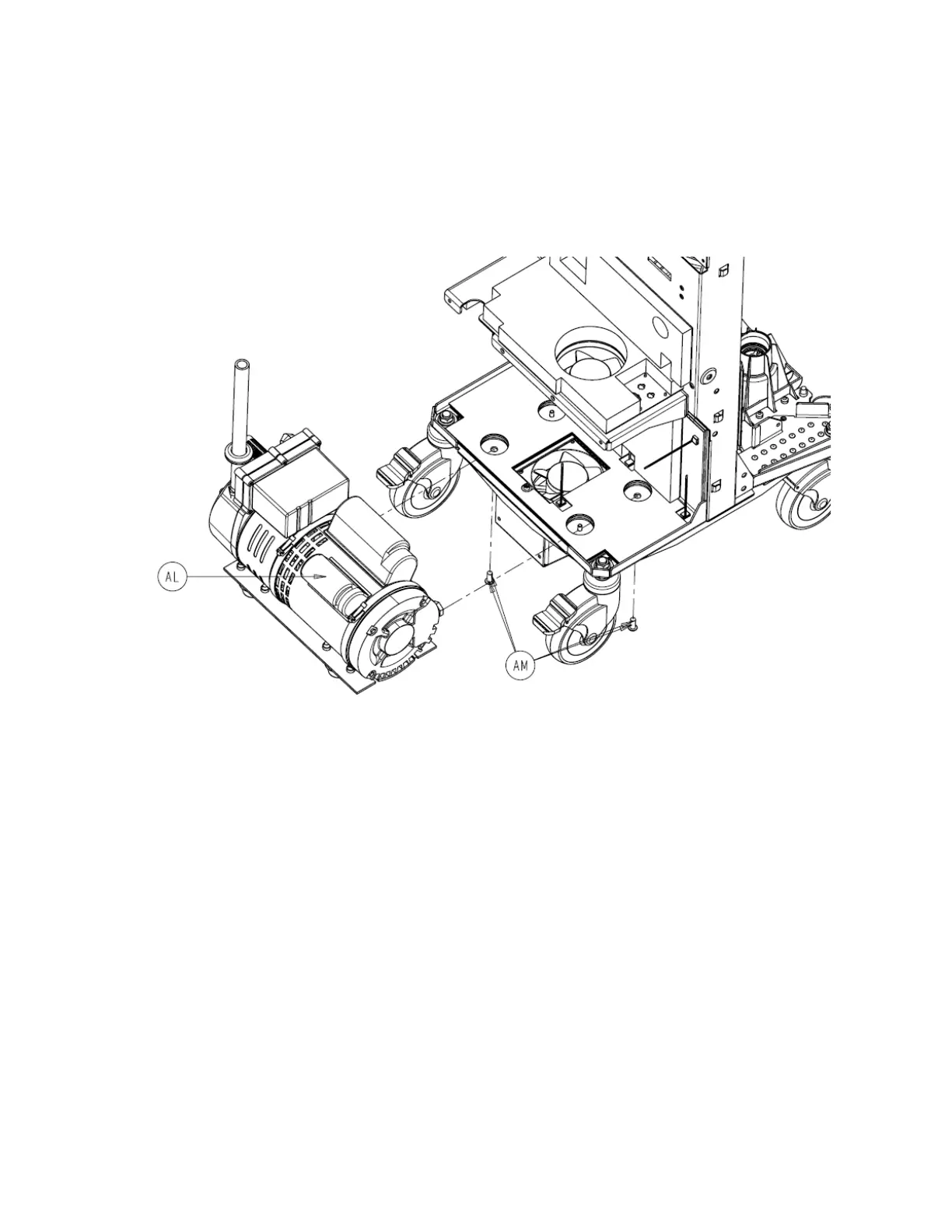

5. Using a 3/16” allen wrench, remove the two socket button head cap screws (P/N
0004-651-000) (AM) from underneath the rover.
6. Lift the vacuum pump assembly (P/N 0702-001-100) (AL) far enough to clear the
recessed holes the in the chassis and remove.
2-63
