OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Configuration 12-15

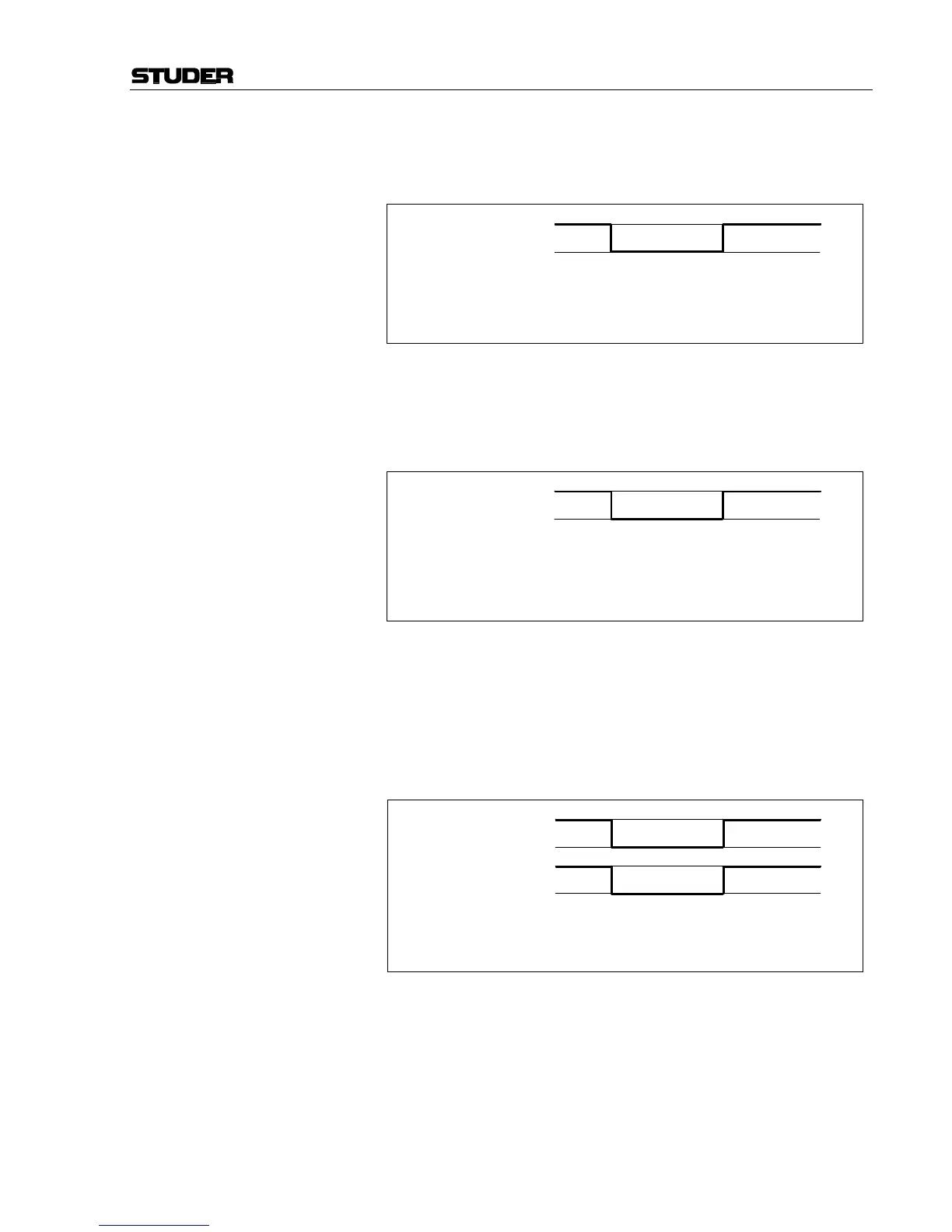

NONE If one of the F1 to F5 keys is configured to NONE, pressing this key has
no effect at all – neither for the F1 to F5 output, nor for the CR source se-
lection. The key LED is not illuminated unless the system is in test mode.
MONITOR EXT 7 According to the first table in chapter 7, each of the F1 to F5 keys is re-
lated to one of the external control room monitoring inputs. In our exam-
ple, F4 is configured to act as CR monitoring selector with EXT7 being the
corresponding input. The key LED is on if the corresponding source is se-
lected.
The relationship between the F1 to F5 keys and the EXT4 to EXT8 inputs
is given through hardware wiring. The table in chapter 7.1 gives in-
formation on the default wiring.
IMPULS If one of the F1 to F5 keys is configured as “IMPULS”, the output is active
for as long as the key is pressed. Neither the CR monitoring level nor the
CR source selection are affected. The key LED is on for as long as the key
is pressed.
Fx output:
CR source selection:
No effect
No effect
Key pressed
Key released
Fx key:
Fx output:
CR source selection:
No effect
Selects corresponding CR source (e.g. EXT7 with F4)
Key pressed
Key released
Fx key:
CR dim:
No effect
CR source selection:
No effect
Key pressed
Key released
Fx key:
Fx output:
