OnAir 2000M2 Digital Mixing Console
12-16 Configuration SW V 4.0 Date printed: 12.11.03
TOGGLE If one of the F1 to F5 keys is configured as “TOGGLE”, the output
changes its status each time the key is pressed. Neither the CR monitoring
level nor the CR source selection are affected. The key LED is on for as
long as the output is active.
TB FROM CR TO... If one of the F1 to F5 keys is configured as “TB FROM CR TO...”, the
output is active and the key LED is on as long as the key is pressed, the CR
monitor speakers are dimmed, and the outputs of all microphone input
modules with the configuration “TB SOURCE” = CR and “SIGNALING”
= CR are routed to the TB bus. (The TB bus signal can be selected with an
appropriate jumper or DIP switch setting on the output modules).
Additional Talkback Targets: In addition to the standard talkback targets (selected with the STUDIO,
AUX 1/2, and N–1 A/B keys), the following talkback targets can be con-
figured as well for the F1 to F5 keys:
TB FROM CR TO
N–1 C (if installed)
N–1 D (if installed)
N–1 E (if installed)
N–1 F (if installed)
ALL N–1
ALL AUX
ALL
For further information on this subject, please refer to chapter 7.3.

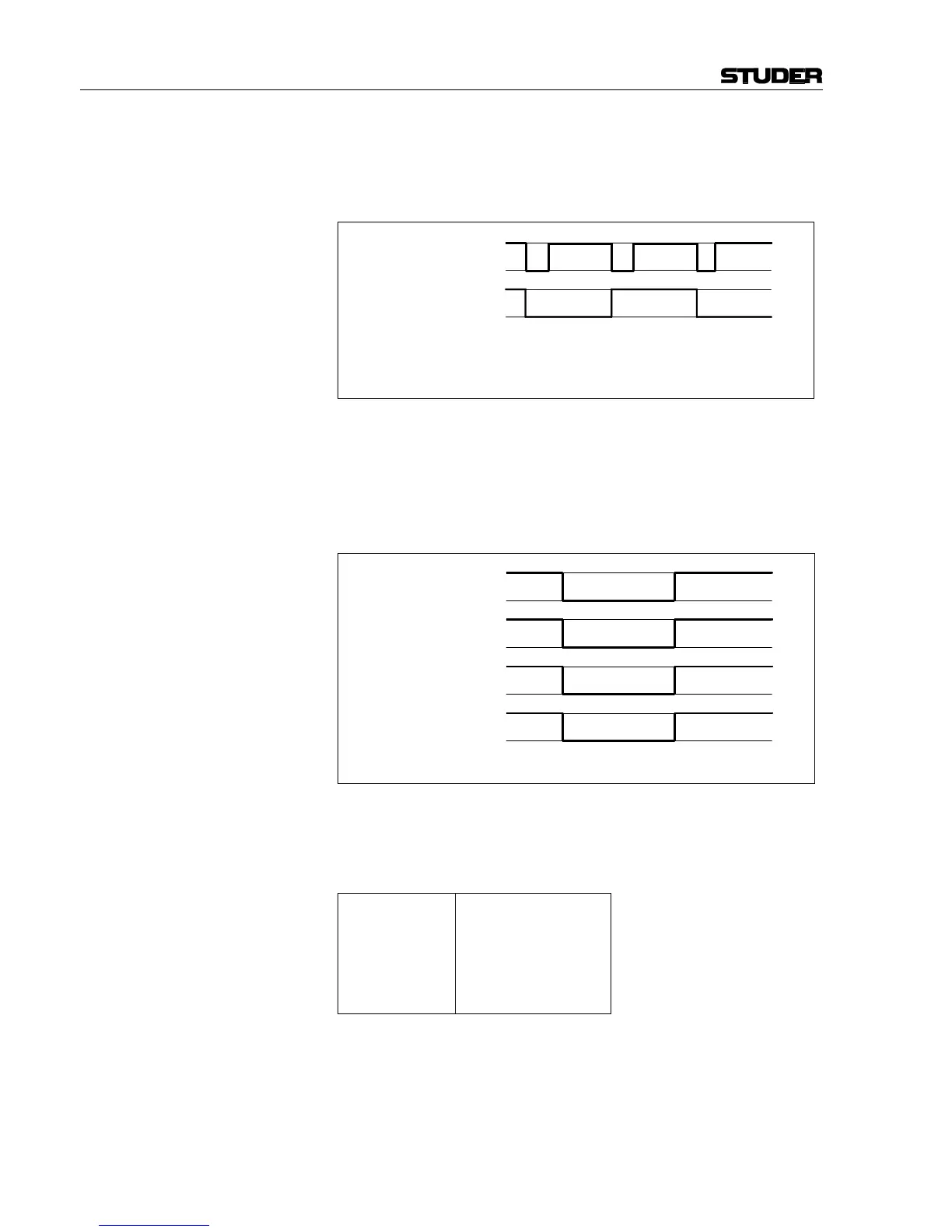

Fx output:
CR dim:
no effect
CR source selection:no effect
Key pressed
Key released
Fx key:
CR source selection:
No effect
Key pressed
Key released
Fx key:
Fx output:
CR dim:
DJ mic to TB bus:
Yes
No
Yes
No
