MultiFlow  Configuration of the MultiFlow
9.3.1.18.5 Notes on Flow Control
The flow control offers the user a precise preset of the discharge volume.
The exact discharge will thereby achieved by a two stage shutdown.

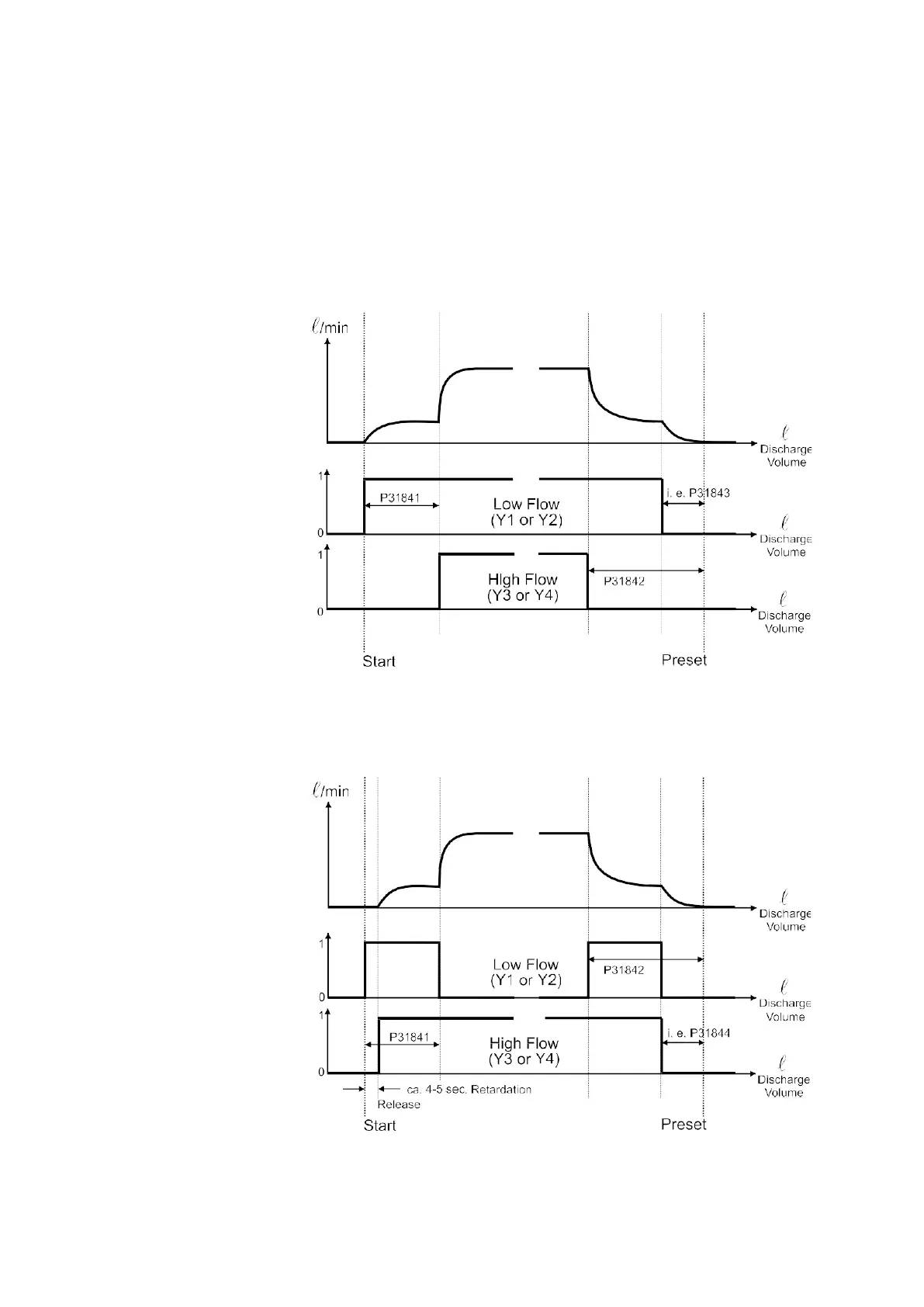

Flow control at general valve compilation:
Flow control utilizing the GVLx-xM valve compilation (only dry
hose):
