Sening

®

is a registered trademark of FMC Technologies

MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)

323

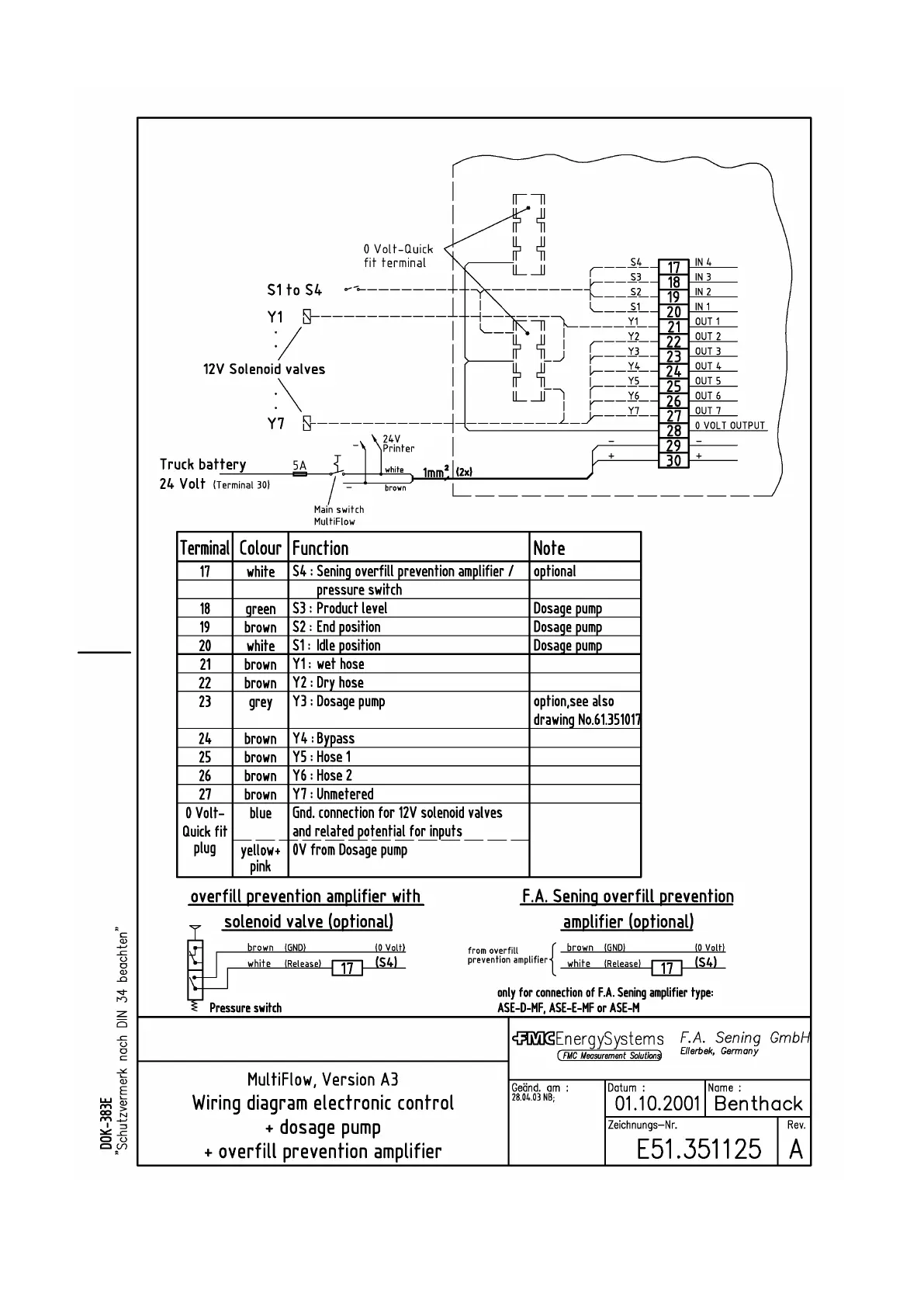

E51.351125 - Wiring diagram electronic control + dosage pump + overfill prevention amplifier
