Sening

®

is a registered trademark of FMC Technologies

324

MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)

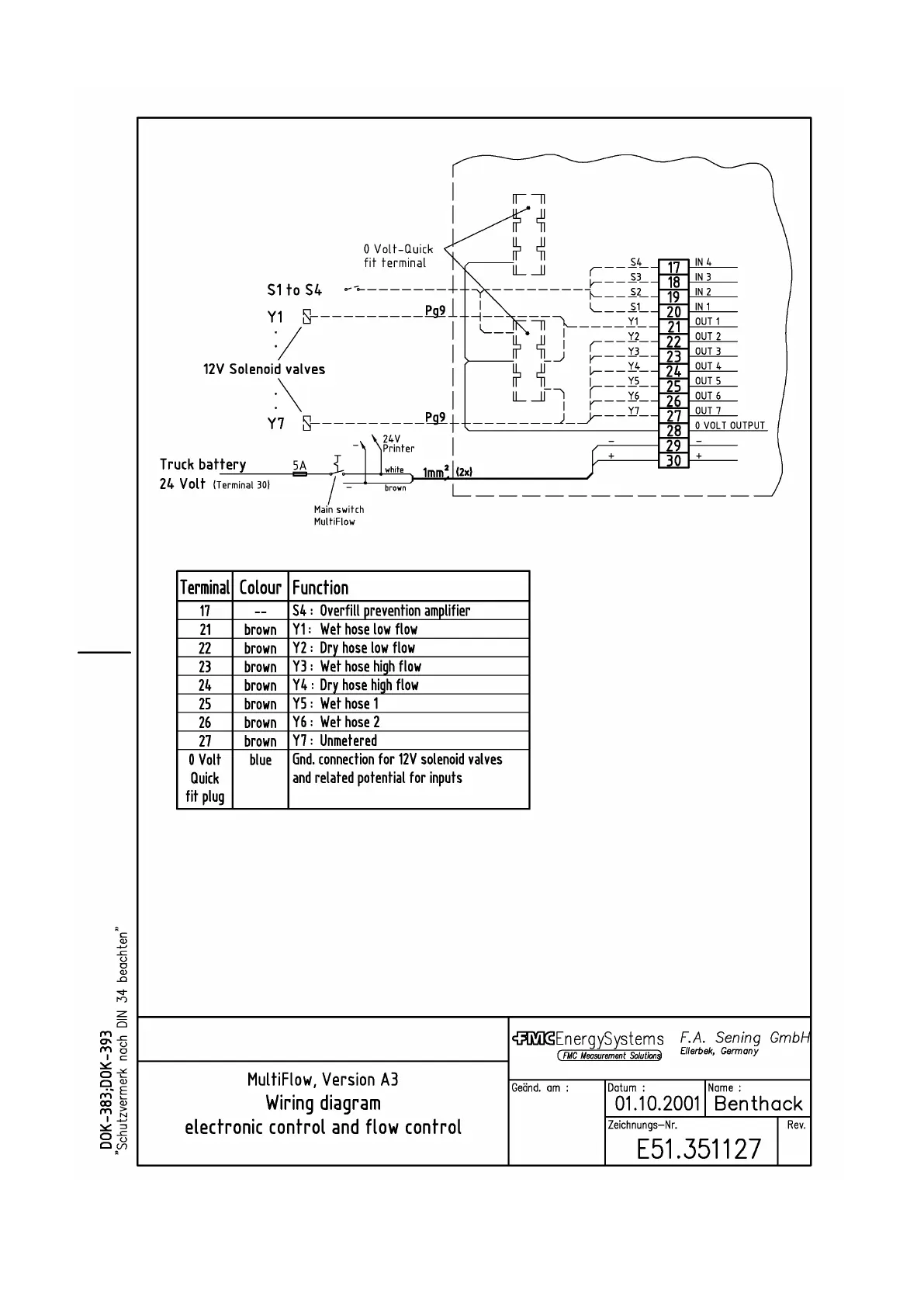

E51.351127 - Wiring diagram electronic control + flow control
