Telex IP-223 - Reset IP-223 Functionality

107
Save to EEPROM Window
Reset IP-223 Button
The Reset IP-223 button is used to perform a full reset of the IP-223. This is the software equivalent of a power down reset.
To save changes to permanent memory, do the following:
1. Click Save to EEPROM.
The Save Setup Parameters window appears.
2. Click Save Parameters.
The parameters are saved to permanent memory.
NOTE: Clicking Submit saves changes in temporary memory only.
To reset the IP-223, do the following:
1. Click Save to EEPROM.
The Save Setup Parameters window appears.
2. Click Reset IP-223.
A momentary loss of connectivity occurs and the window shown in Figure 57 appears. The connection is restored
after several seconds.
3. Click a link to access a setup window, otherwise close the web browser.

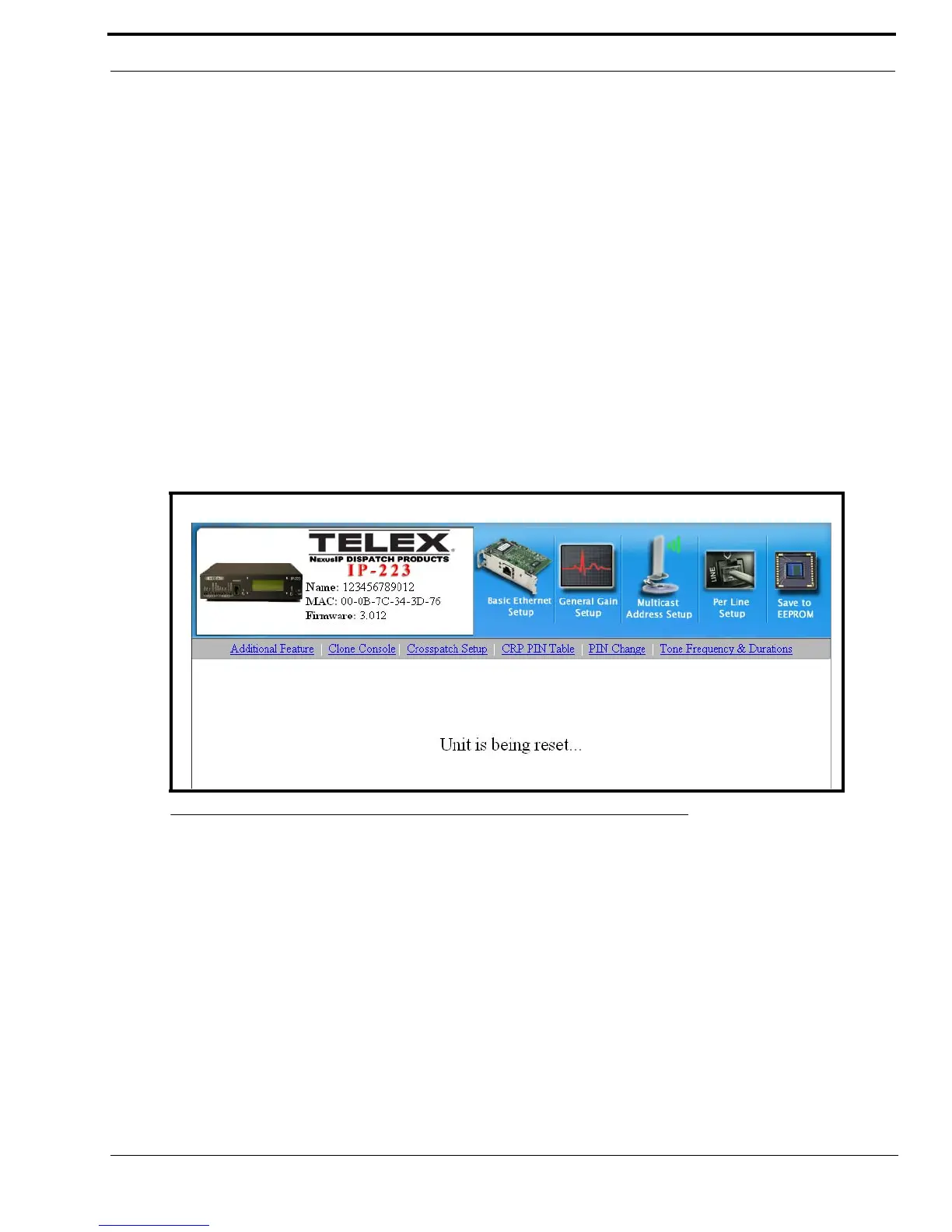

FIGURE 57. Reset IP-223
