Front Panel
Front Panel
Test and Adjustment Points
Test and adjustment points for Radio 1 and Radio 2 are provided on the front panel. Newer versions of the IP-223 provide
access to additional test and adjustment points on the case top, as shown in Figure 4.
NOTE: Radio 1 and radio 2 are also referred to as line 1 and line 2 in this manual.

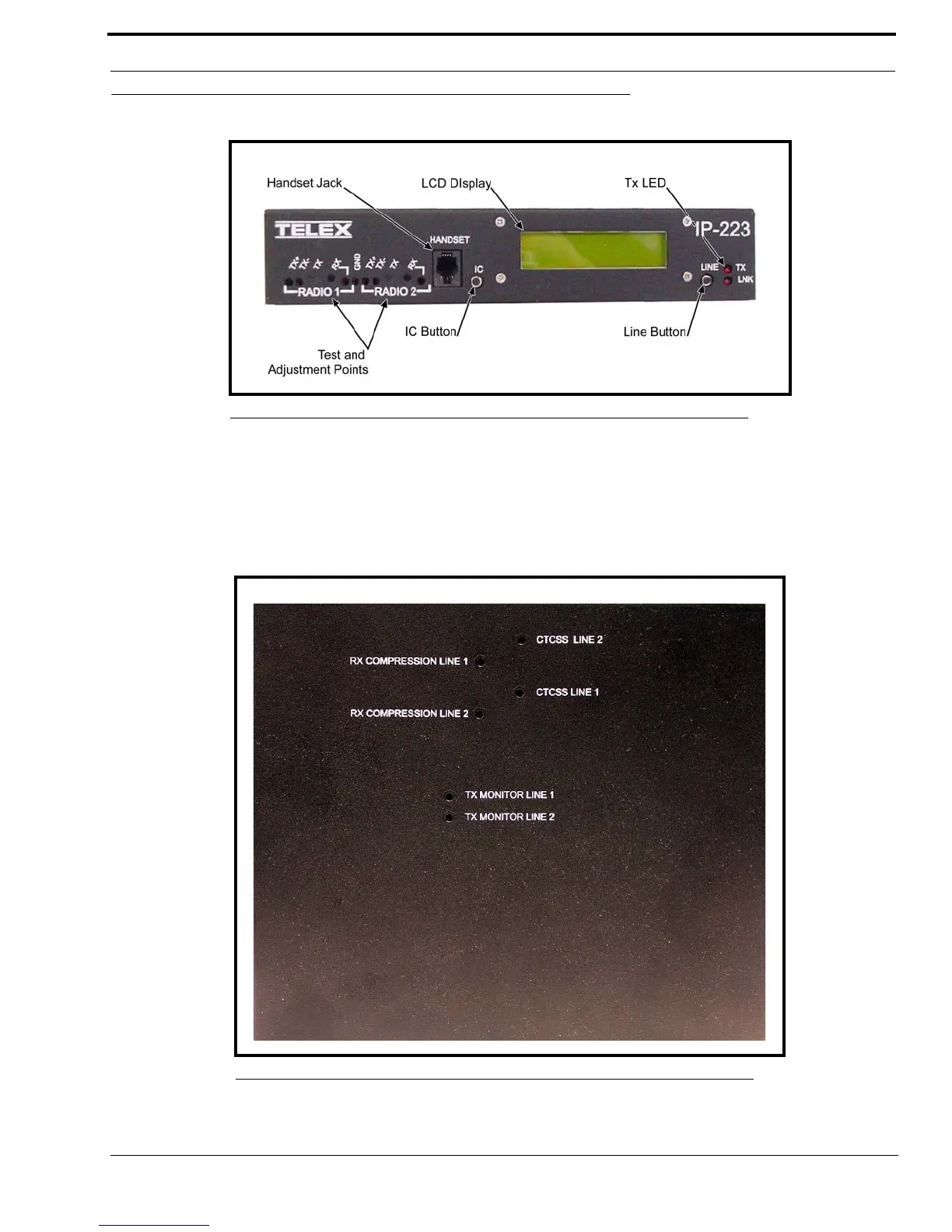

FIGURE 3. IP-223 Front Panel
FIGURE 4. IP-223 Case Top Test Points
