Setup Information
54
CTCSS/Recorder Out Gain Drop Down Menu
The CTCSS/Recorder Out Gain drop down menu is used to set the CTCSS/recorder gain, in dB, for either line 1 or line 2.
Available selections are 12.0, 10.5, 9.0, 7.5, 6.0, 4.5, 3.0, 1.5, 0, -1.5, -3.0, -4.5, -10.5, -16.5, -22.5, -28.5, and -34.5.
TX Voice Gain Field
The TX Voice Gain field indicates the transmit voice gain, in dB, for either line 1 or line 2.
The range for this field is 10dB to -60dB.
MSK Tone Gain Field
The MSK Tone Gain field is used to set the MDC-1200 and FleetSync MSK (Minimal-Shift Keying) signal gain, in dB, for
Line 1 or Line 2.
This field can range from 10dB to -60dB.
Default is 0dB.

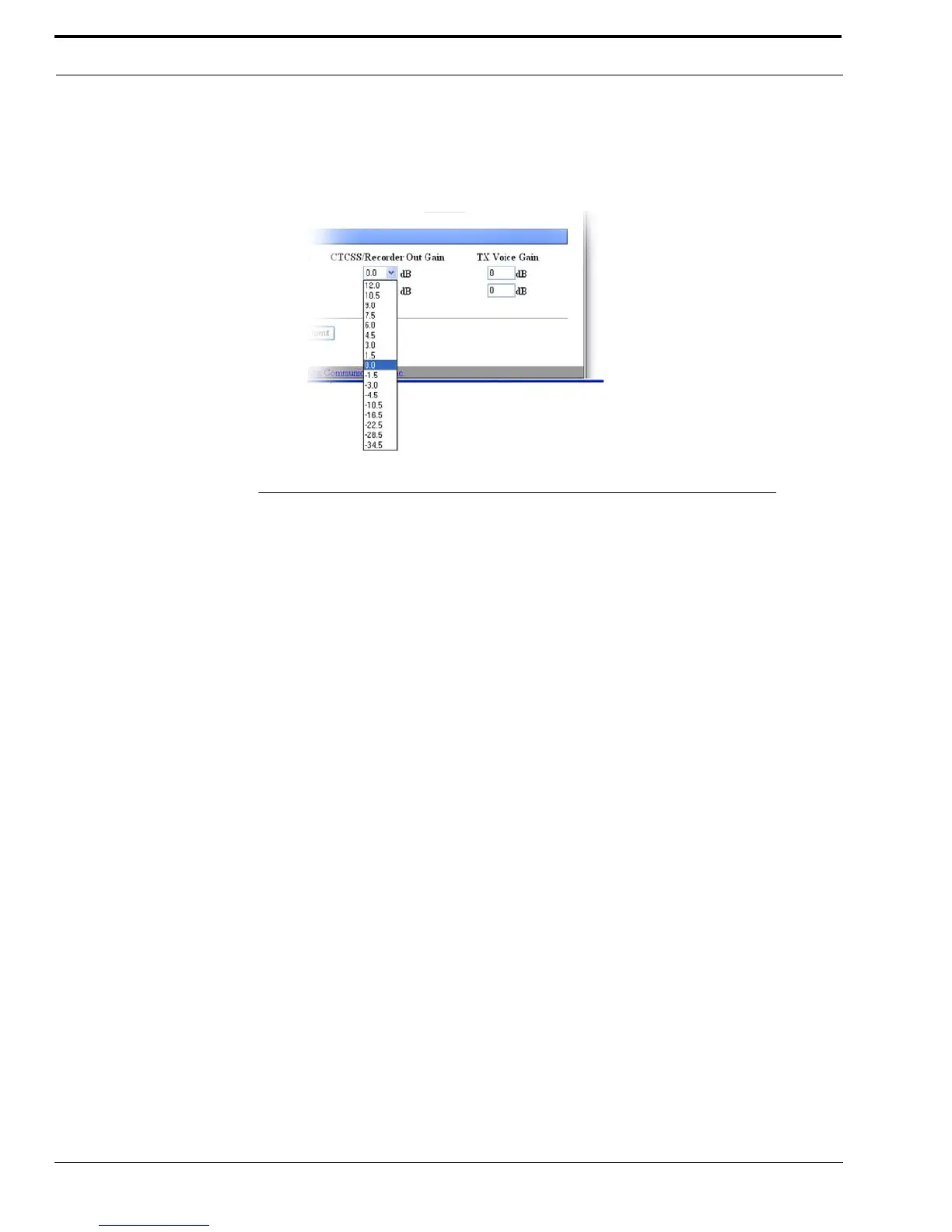

FIGURE 22. CTCSS/Recorder Out Gain Drop Down Menu
