Tone Frequency & Durations Window
The Tone Frequency and Durations window, shown in Figure 76, identifies frequencies and function tones. The IP-223 is
capable of generating the standard tone packages required to control a radio with a tone termination panel.
Monitor Frequency Field
The Monitor Frequency field identifies the value, in Hz, of the function tone sent when the MON button on the console is
pressed. In most cases, this value is set at 2050Hz.
The range for this field is 0 to 3200 Hz.

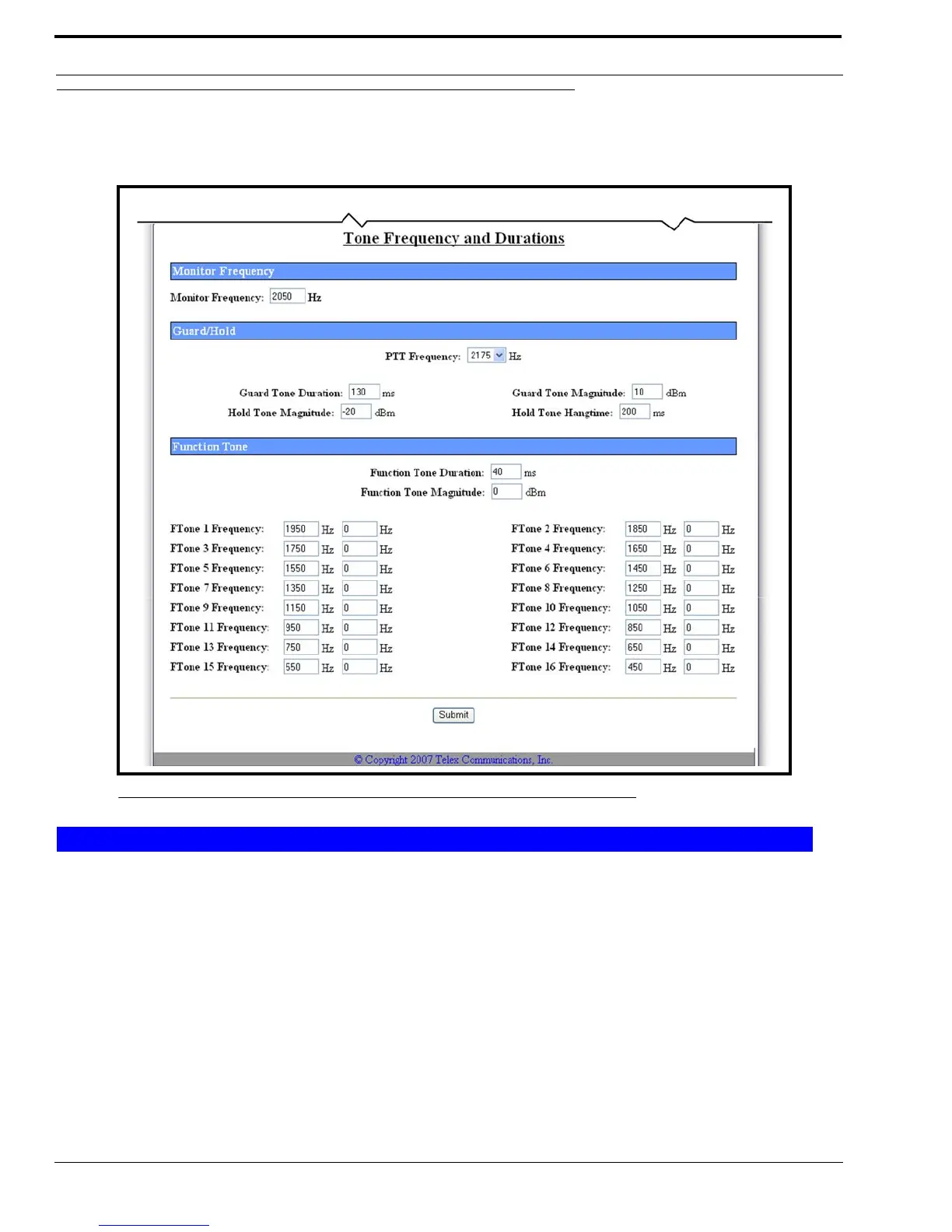

FIGURE 76. Tone Frequency and Durations
Monitor Frequency
