General Gain Setup Window
General Gain Setup Window
The General Gain Setup window, shown in Figure 17, is used to adjust gain levels, as required. Except for handset sidetone
gain, the gains are set to 0dB, by default, and can be adjusted up or down. The IP-223 is based largely on software controlled
resistors with a resolution of 1.5dB per step.
EXAMPLE: If it is determined the output level for a transmission line is 3.0dB too high, an entry of -3.0dB should be
entered in the corresponding Transmit Gain field for the line.

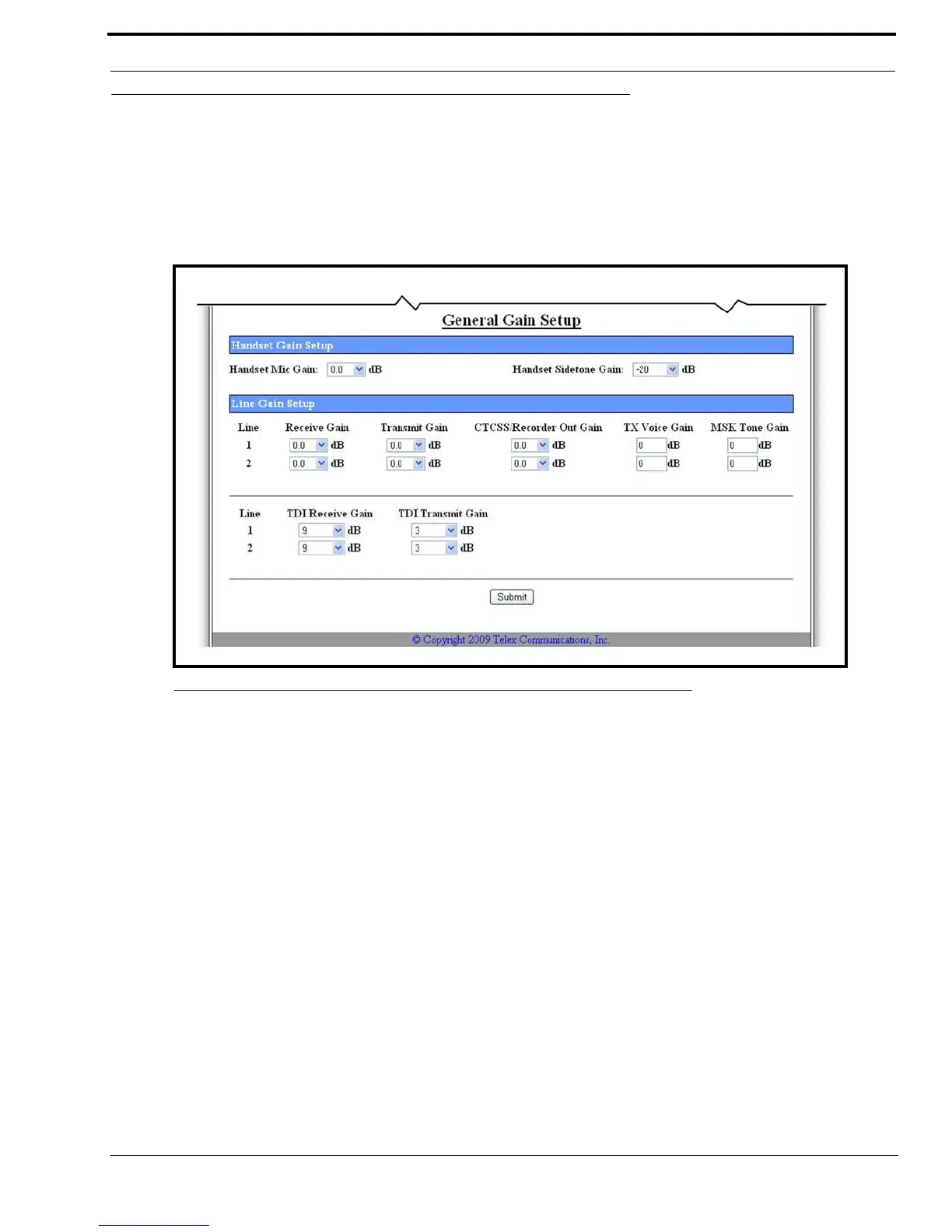

FIGURE 17. General Gain Setup Window
