Tescom TC-3000C - Flow Chart for DLL Functions

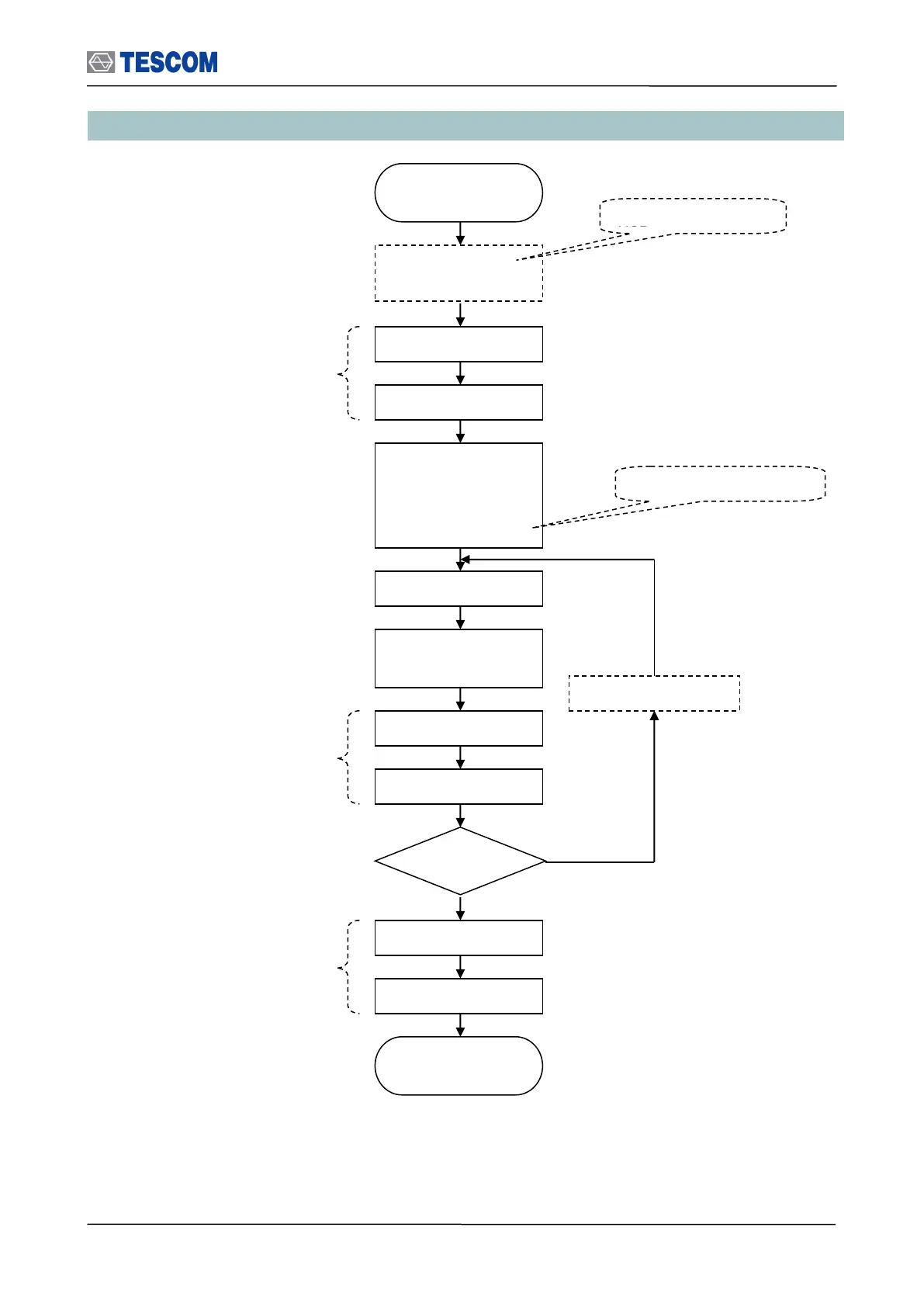

5.8 Flow Chart for DLL functions
202
5.8 Flow Chart for DLL functions
< RF Test Cases >
write_tester_tx_pow
write_tester_rx_att
write_dut_path_loss
write_dut_test_mode
Quit ?
Yes
No
Start
write_tester_hci_tl
write_tester_hc_port
tester_init
dut_init
End
Initialization(Only one call)
Basic Configuration
activate_dut
Replace DUT
outp_pow
ber
Connection & Entering Test Mode
dut_close
tester_close
Termination(Only one call)
dut_detach
tester_reset
Reset(including Disconnection)
Measuring RF Test Items
Transmitter or Loopback
TCP/IP, RS-232C,
USB
