3.1.15 Typical Test Configurations
Diagrams below are an ideal set up for testing Bluetooth devices. Since most
Bluetooth devices use sealed antenna due to their size, final RF tests must be done
over the air (OTA). In case of module or PCB testing, contact probes may also be
used. In either case, testing must be completed under an adequately RF isolated
condition with reliable RF coupling.
If the DUT has a standard HCI, the TC-3000C can communicate with the DUT via
USB(HCI) of TC-3000C for control DUT.

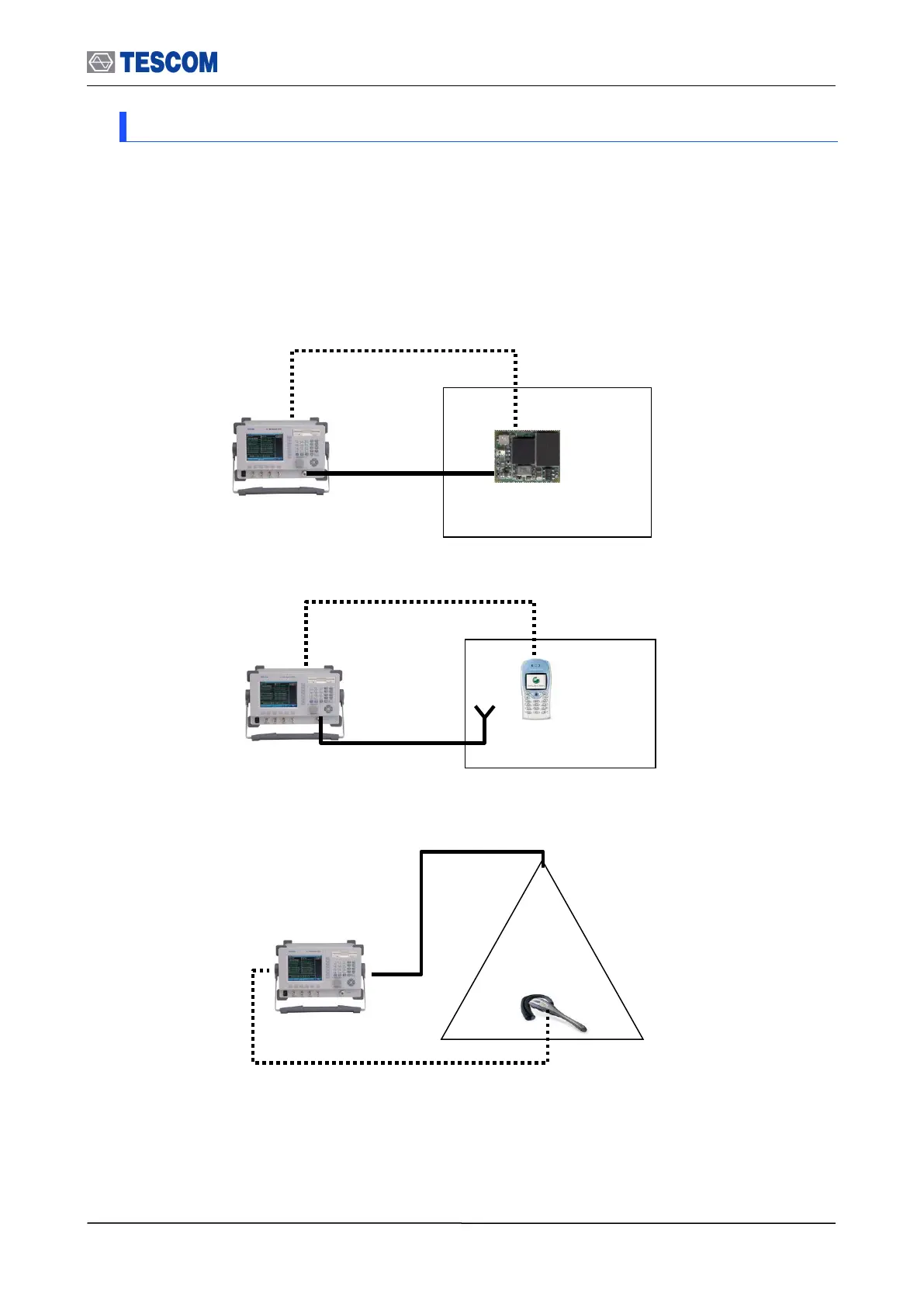

[Figure 4] Typical Test Configurations
TC-59XX Shield Box
Probe/ Connector
HCI
Set Test Mode
TC-59XX Shield Box
Set Test Mode
RF Coupler
HCI
HCI
Set Test Mode
TC506X
TEM Cell
