3.4.2 Step 3. Viewing the Recorded Data
1. L2CAP Messages: This screen shows the L2CAP messages exchanged between the
TC-3000C and the DUT. To access L2CAP screen, press M2 soft key.
2. RFCOMM messages: This screen shows the RFCOMM messages exchanged
between the TC-3000C and the DUT. To access RFCOMM screen, press M3 soft key.
3. SDP Messages: This screen shows the SDP messages exchanged between the TC-
3000C and the DUT. To access SDP screen, press M4 soft key.

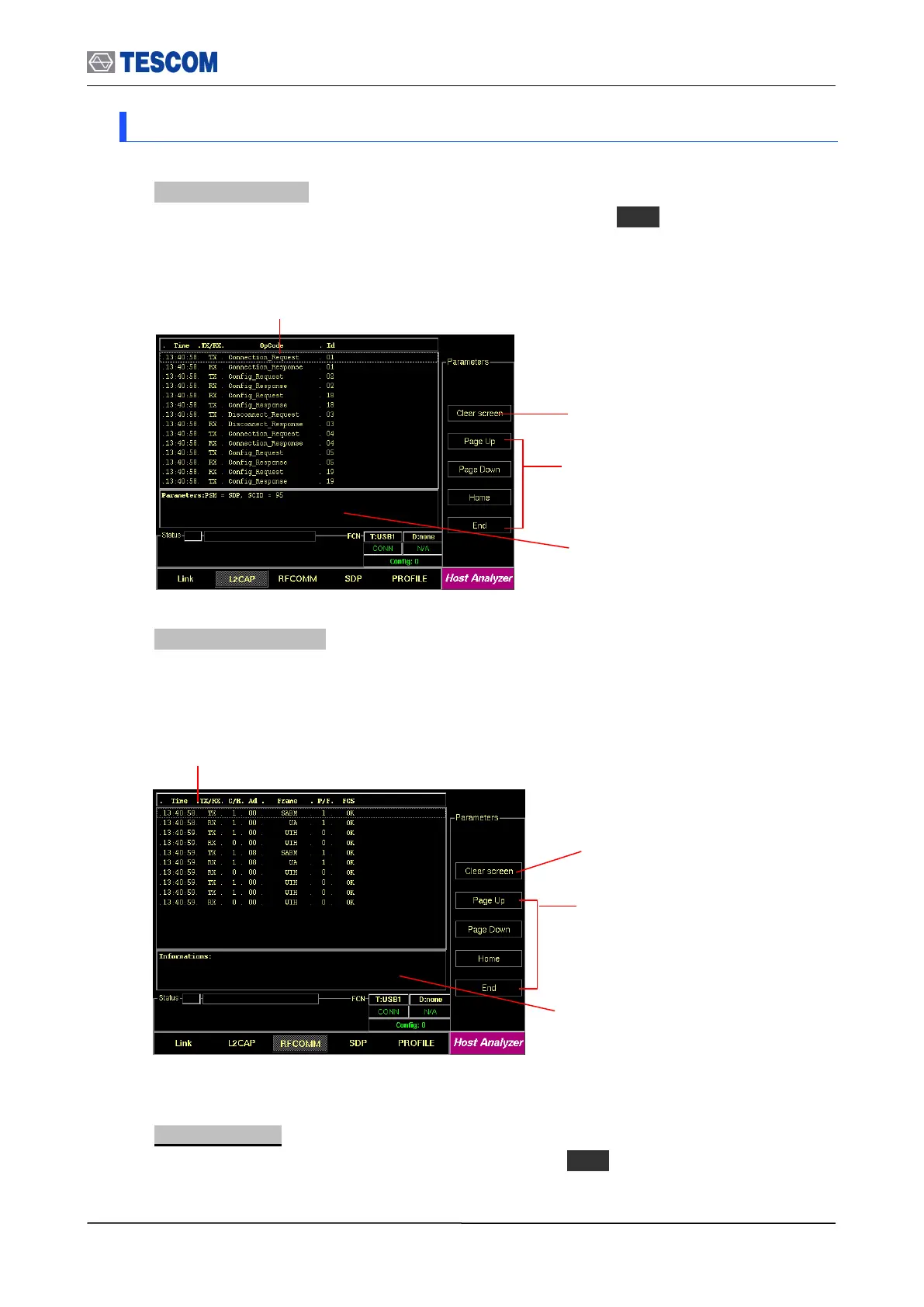

L2CAP Messages: This window displays the L2CAP
messages exchanged between the TC-3000C and the DUT.
RFCOMM Messages: This window displays the
RFCOMM messages exchanged between the
TC-3000C and the DUT.
Cursor movement functions: For
easy scrolling the messages.
Parameters window: This window
shows detail parameters about the
highlighted RFCOMM message.
Cursor movement functions: For
easy scrolling the messages.
Parameters window: This window
shows detail parameters about the
highlighted L2CAP message.
Clear screen: Clears all messages
Clear screen: Clears all messages
