Textron Jacobsen AR-5 Technical/Repair Manual

6-42 4181383 First Edition
HYDRAULICS
6
Disassembly, Inspection, and Assembly
See Figure 6-37.

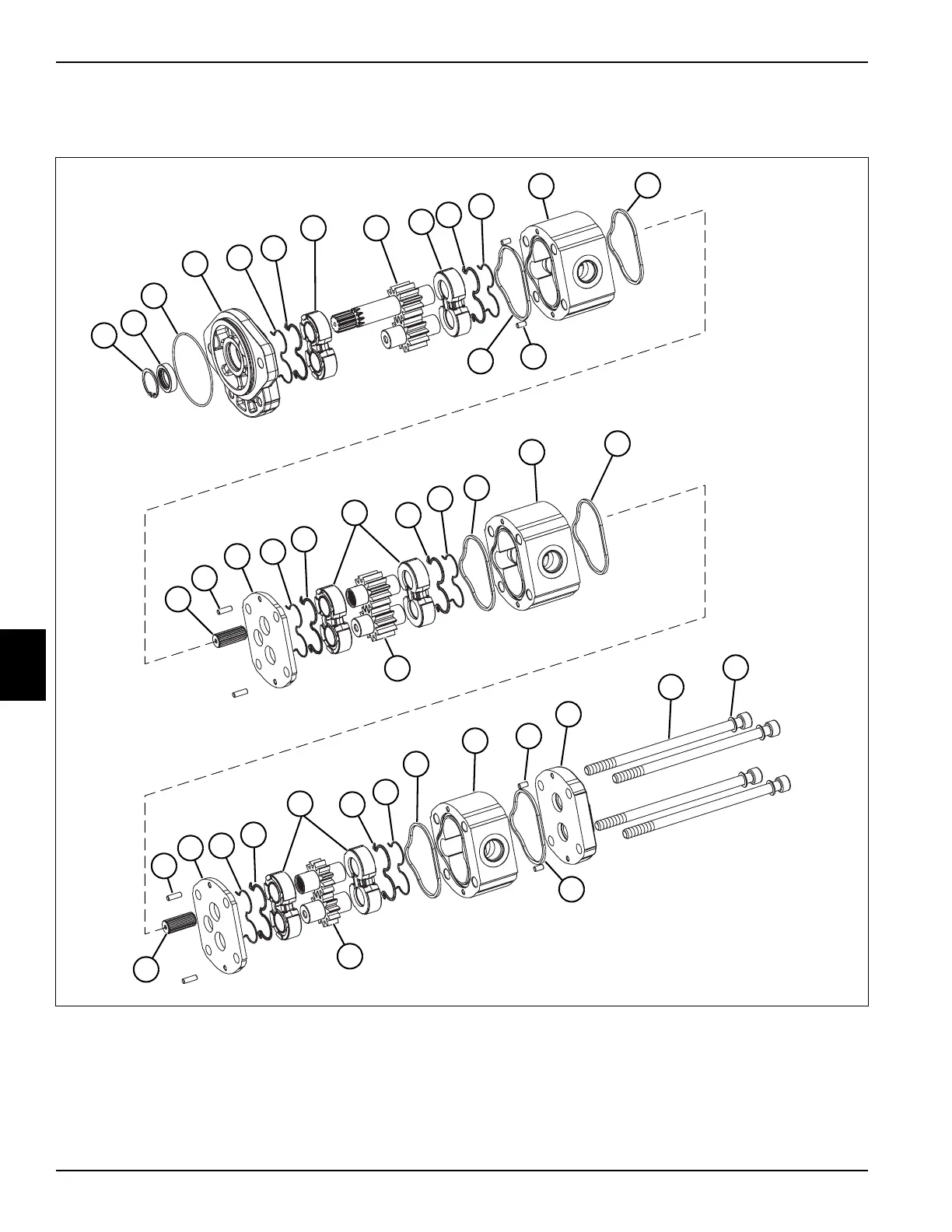

Figure 6-37
1 Retaining Ring 6 Seal (6) 11 Dowel Pin (4) 16 Rear Cover
2 Seal 7 Thrust Plate (6) 12 Splined Connecting Shaft (2) 17 Bolt (4)
3 O-Ring 8 Gear Set (Drive Shaft) 13 Dowel Pin (4) 18 Washer (4)
4 Front Cover/Flange 9 Body (3) 14 Spacer (2) 19 Gear Set, End
5 Backup Washer (6) 10 Seal (6) 15 Gear Set, Intermediate
TN1383
3
2
1
4
8
7
6
5
9
10
7
6
5
12
7
5
10
9
10
15
6
6
5
14
13
11
9
11
16
17
18
10
19
7
6
5
10
12
14
5
6
10
11
