Textron Jacobsen AR-5 Technical/Repair Manual

6-46 4181383 First Edition
HYDRAULICS
6

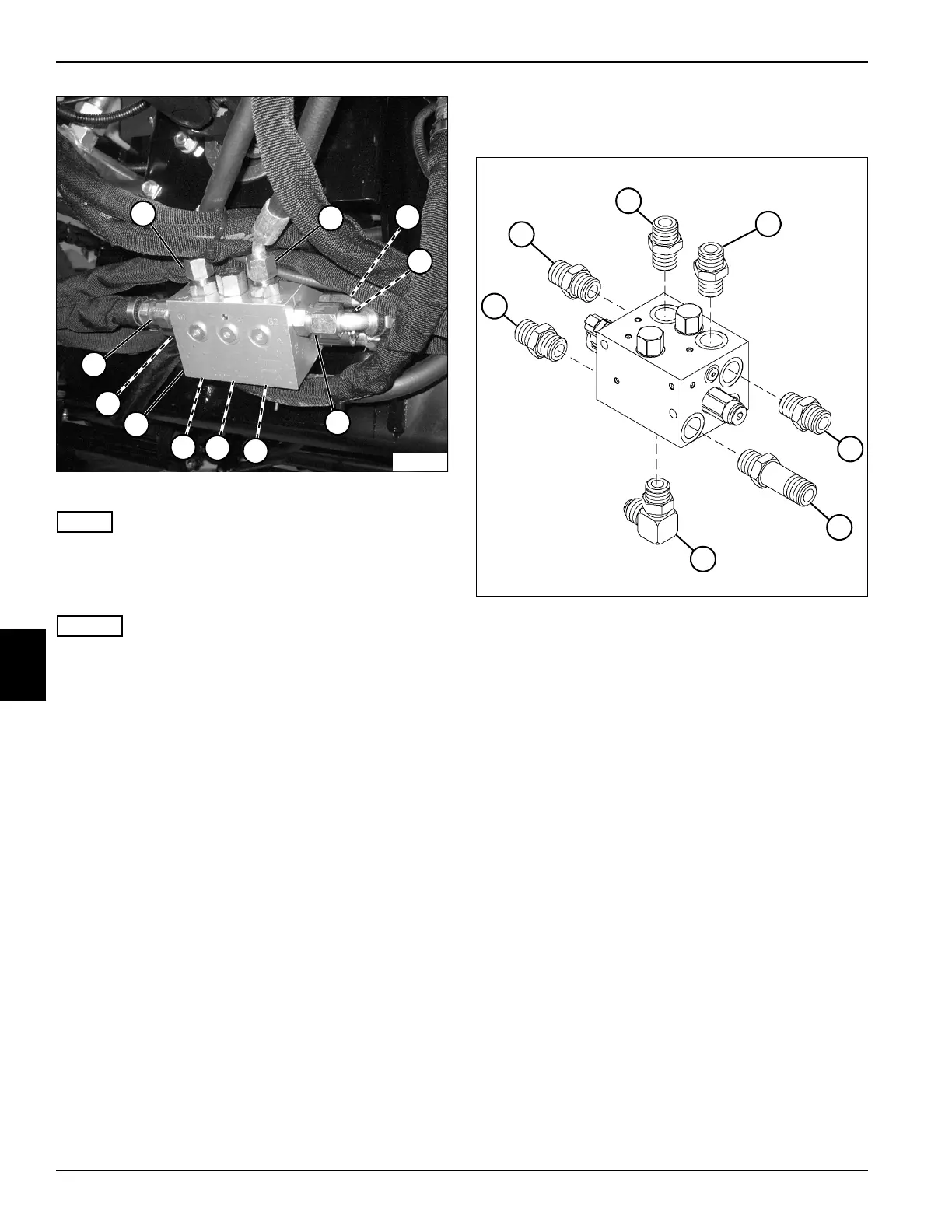

Figure 6-43
NOTE
Label connector before disconnecting to ensure correct
installation.
4. Disconnect electrical connector (4) from solenoid.
NOTES
• Label all hydraulic hoses and tubes before
disconnecting to aid in installation.
• Close all openings with caps or plugs to prevent
contamination.
5. Disconnect hydraulic hoses (1—3).
6. Disconnect hydraulic hoses (5 and 7).
7. Disconnect hydraulic hoses (9 and 10).
8. Support the deck valve (8).
9. Remove the two mounting screws, lock washers, and
washers (6) from the deck valve (8).
10. Remove the deck valve (8).
Installation Notes
• Install the deck valve by reversing the order of
removal.
• Ensure new O-rings are in place before installing
hoses on fittings.
• Replace hydraulic oil filter.
• Refill hydraulic tank. (Refer to “Safety, Operation, and
Maintenance Manual” for oil specifications.)
• Start engine. Check hydraulic system for leaks.
Repair as necessary.
• Check hydraulic oil level and add if necessary.
Disassembly, Inspection, and Assembly
See Figures 6-44 and 6-45.
Figure 6-44
1. Remove fittings (1—7) from the lift valve.
TN1429
5
1
9
2
10
4
8
6
7
6
3
TN1430
1
2
3
4
5
6
7
