STEERING
4181383 First Edition 7-9
7
NOTICE

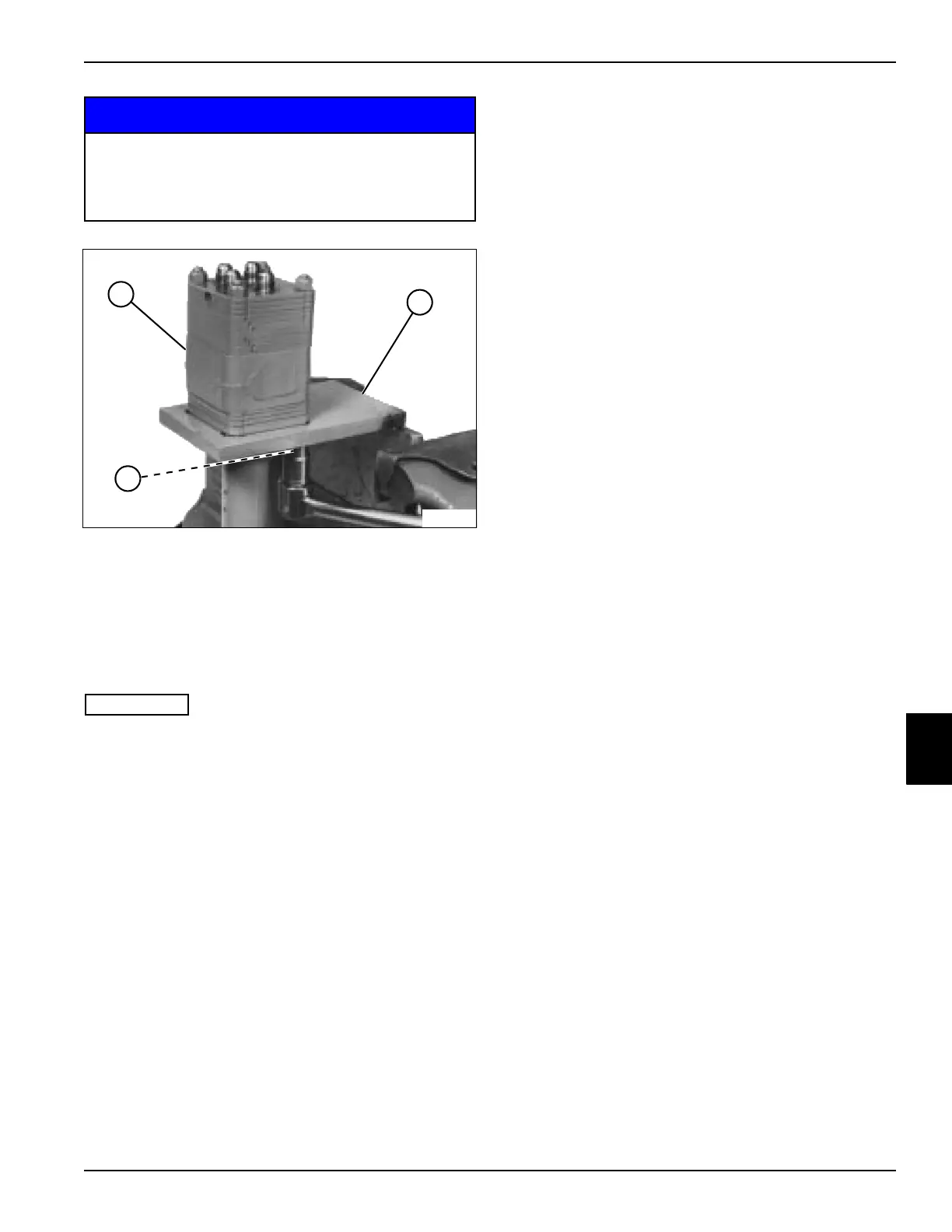

Figure 7-11
1. Place the steering valve service fixture (2) securely in
a vise.
2. Place the steering valve (1) into the service fixture
(2), input shaft down.
3. Secure the steering valve to the service fixture using
four nuts (3).
IMPORTANT
Scribe a line from the top to the bottom of the
steering valve assembly, not including the
steering tube. Use the scribed line for reference
when assembling the valve sections.
Do not clamp the steering valve assembly directly
into a vise. Clamping the steering valve directly
into a vise may damage or distort the steering
valve.
TN1437
3
1
2
