Textron Jacobsen AR-5 Technical/Repair Manual

7-10 4181383 First Edition
STEERING
7
Disassembly

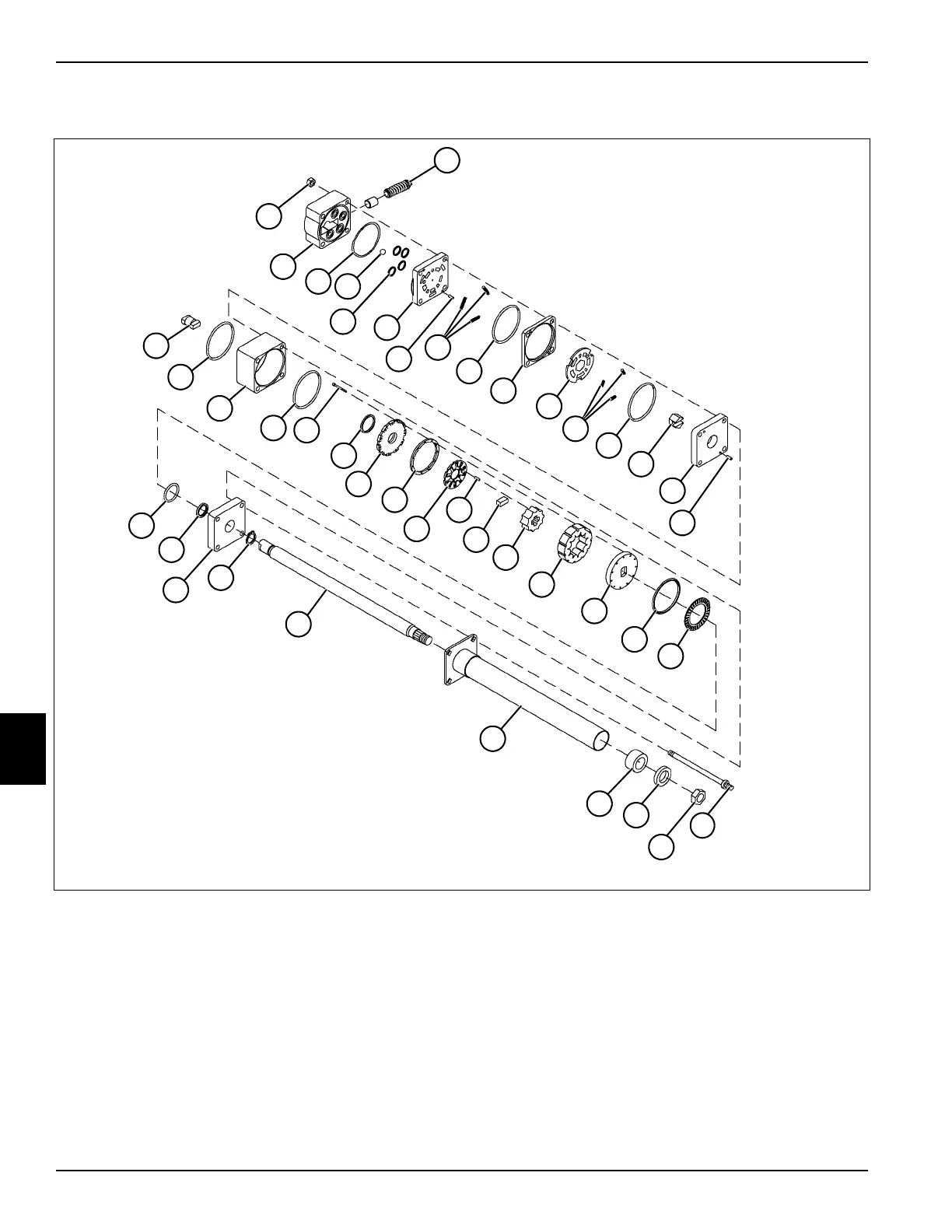

See Figure 7-12.
Figure 7-12
1Nut
2Port Cover
3 Relief Valve Assembly
4 Seal Ring
5 Ball 9/32 inch
6O-Ring (4)
7 Port Manifold
8Alignment Pin
9Spring
10 Seal Ring
11 Valve Ring (Matched Set)
12 Valve Plate (Matched Set)
13 Spring
14 Seal Ring
15 Hex Drive Assembly
16 Isolation Manifold
17 Alignment Pin
18 Drive Link
19 Seal Ring
20 Metering Ring
21 Seal Ring
22 Socket Head Cap Screw (11)
23 Commutator Seal
24 Commutator Cover
25 Commutator Ring
26 Commutator
27 Alignment Pin
28 Drive Link Spacer
29 Rotor
30 Stator
31 Drive Plate
32 Spacer
33 Thrust Bearing
34 Face Seal
35 Seal Spacer
36 Upper Cover Plate
37 Retaining Ring
38 Steering Shaft
39 Steering Tube
40 Bearing
41 Seal
42 Shaft Nut
43 Special Bolt
3
1
11
10
9
8
7
6
5
4
2
17
16
15
14
13
12
29
28
27
26
25
24
23
22
21
20
19
18
33
32
31
30
36
34
35
37
38
39
40
41
42
43
TN1428
