STEERING
4181383 First Edition 7-25
7
Disassembly, Inspection, and Assembly
See Figure 7-28.
Figure 7-28
Disassembly Notes
• Before disassembly, clean and remove all dirt and
grass from rear axle assembly.
• Inspect all bushings, thrust washers, and bearings for
damage or wear.
• Inspect steering cylinder for leaks or dents to the
barrel and rod.
• Inspect all ball joints for wear or torn dust seals.

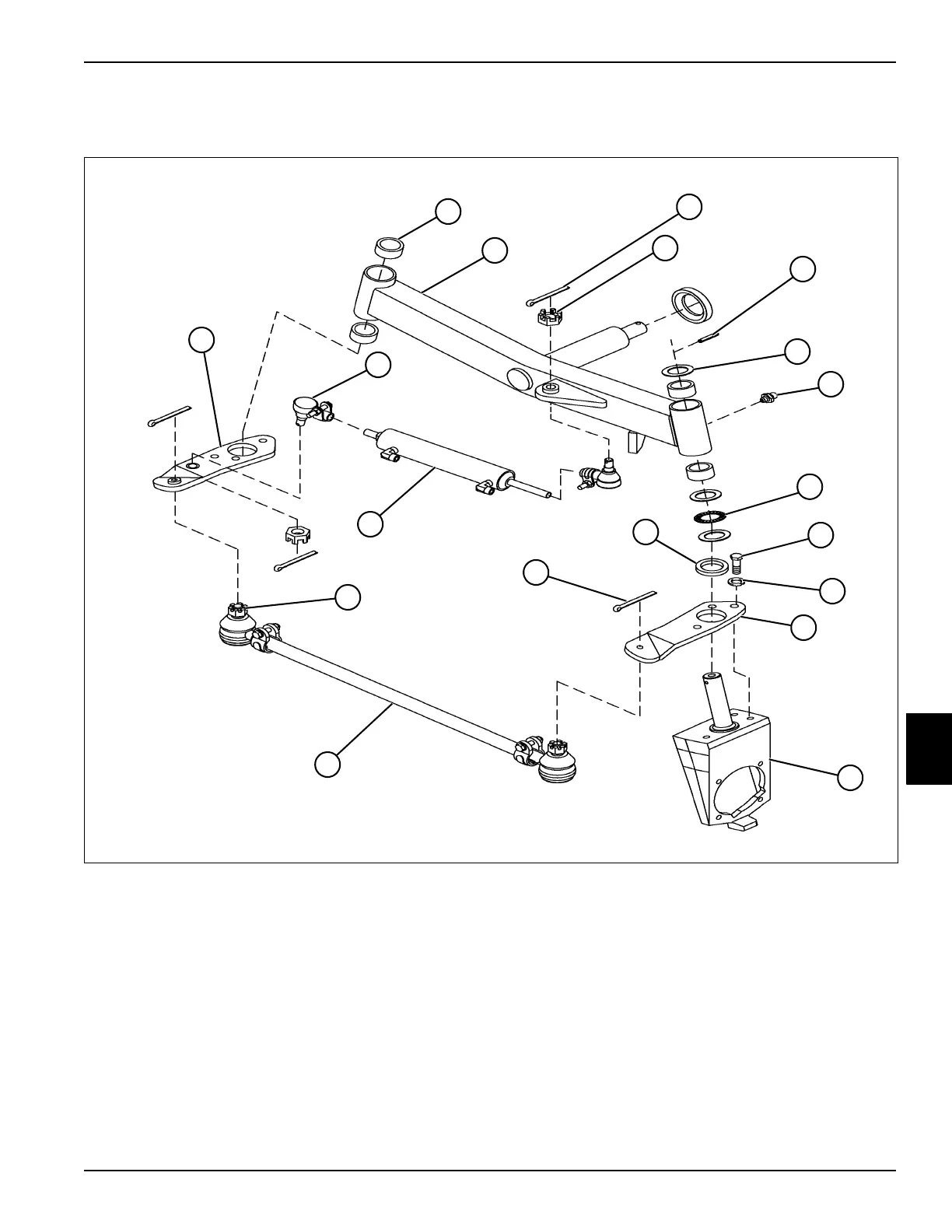

1 Bushing (4) 6 Thrust Washer (6) 11 Steering Arm, Left 16 Castle Nut (2)
2 Axle 7 Grease Fitting (2) 12 Motor Mount (2) 17 Steering Cylinder
3 Cotter Pin (2) 8 Thrust Bearing (2) 13 Cotter Pin (2) 18 Ball Joint (2)
4 Castle Nut (2) 9 Hex Bolt (6) 14 Thrust Washer (2) 19 Steering Arm, Right
5 Spring Pin (2) 10 Lock Washer (6) 15 Tie Rod
