Chapter 3 ’Web Browser Interface’ — Advanced Settings
108 Amethyst III DTV Smart Switch
User Manual
3.
Right-click the Input GPIx node then select the switch operation from
the Add drop-down list.

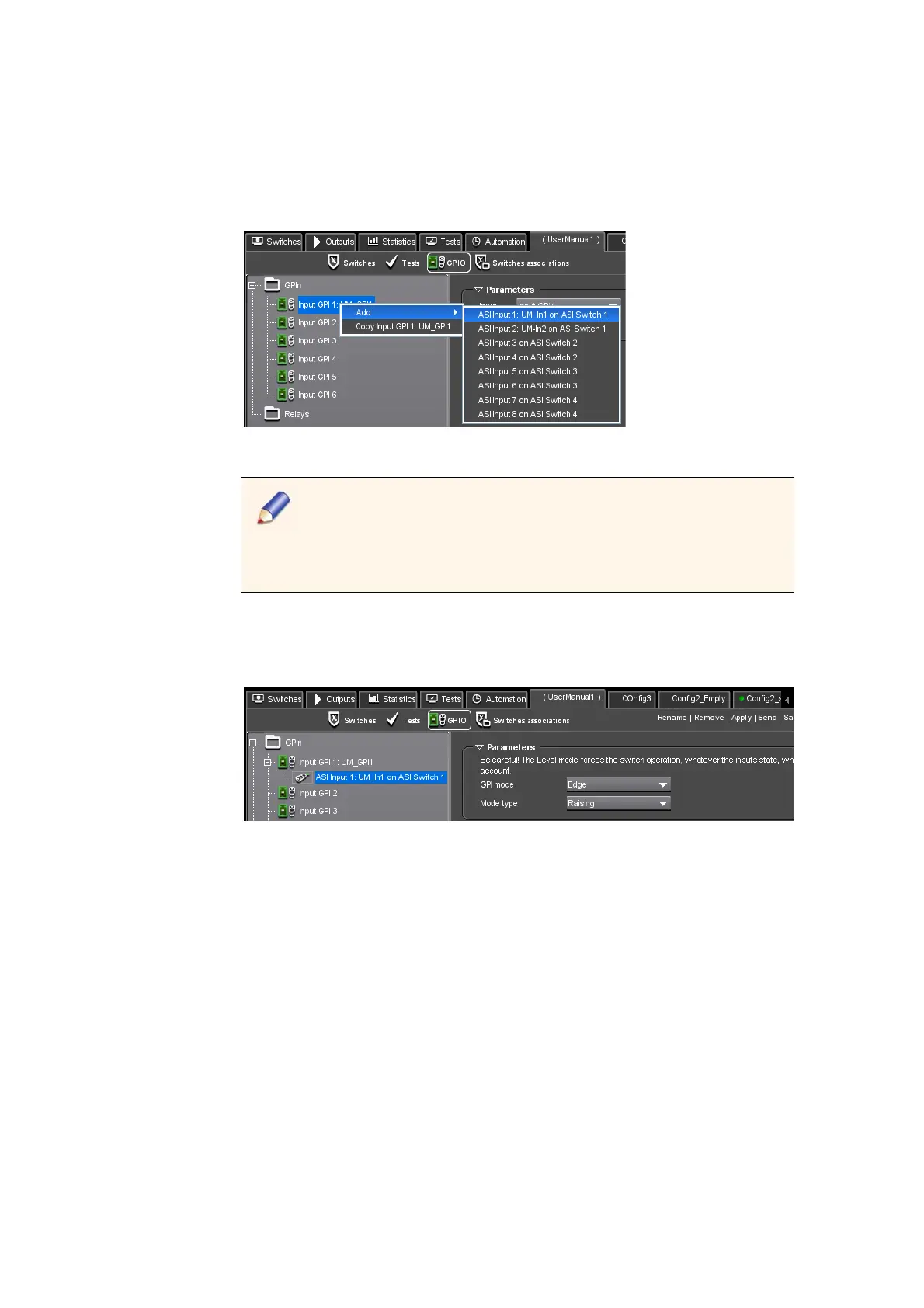

Figure 3-58. Associating a switch operation to the Input GPI
A same Input GPIx can command several
switch operation
s.
If a switches association is defined, all inputs of this switches
association must be commanded by the same Input GPI and with the
same parameters.
If two GPI pilot the two inputs of the same switc
h and are both ON,
the active input will be the one declared in the first GPI of the list.
4.
Select the switch operation sub-node then edit the GPI parameters.
Figure 3-59. Editing the GPI parameters
The GPI action should be performed on Edge or Level.
On Edge, a switc
h request is emitted, but may be refused by
Amethyst III, for instance if the new input to be active is in error
state.
On L
evel, the switch operation is forced, whatever the inputs
state. In this mode, make sure that your configuration does not
contain contradictory rules.
The type can be Raising or Falling for the Edge mode, High or
Low for the Level mode.
5.
Repeat steps
2
to
4
for each GPI input you want to configure.
