Chapter 3 ’Web Browser Interface’ — Interface Description
Amethyst III DTV Smart Switch 123
User Manual
The Switches view displays the items present in the active configuration,
of the following types:
 Inputs: ASI or IP inputs items (orange items)
 Switches (green items)
 Outputs (purple items)
This view is used to edit or modify the configurations.
ASI Input Items

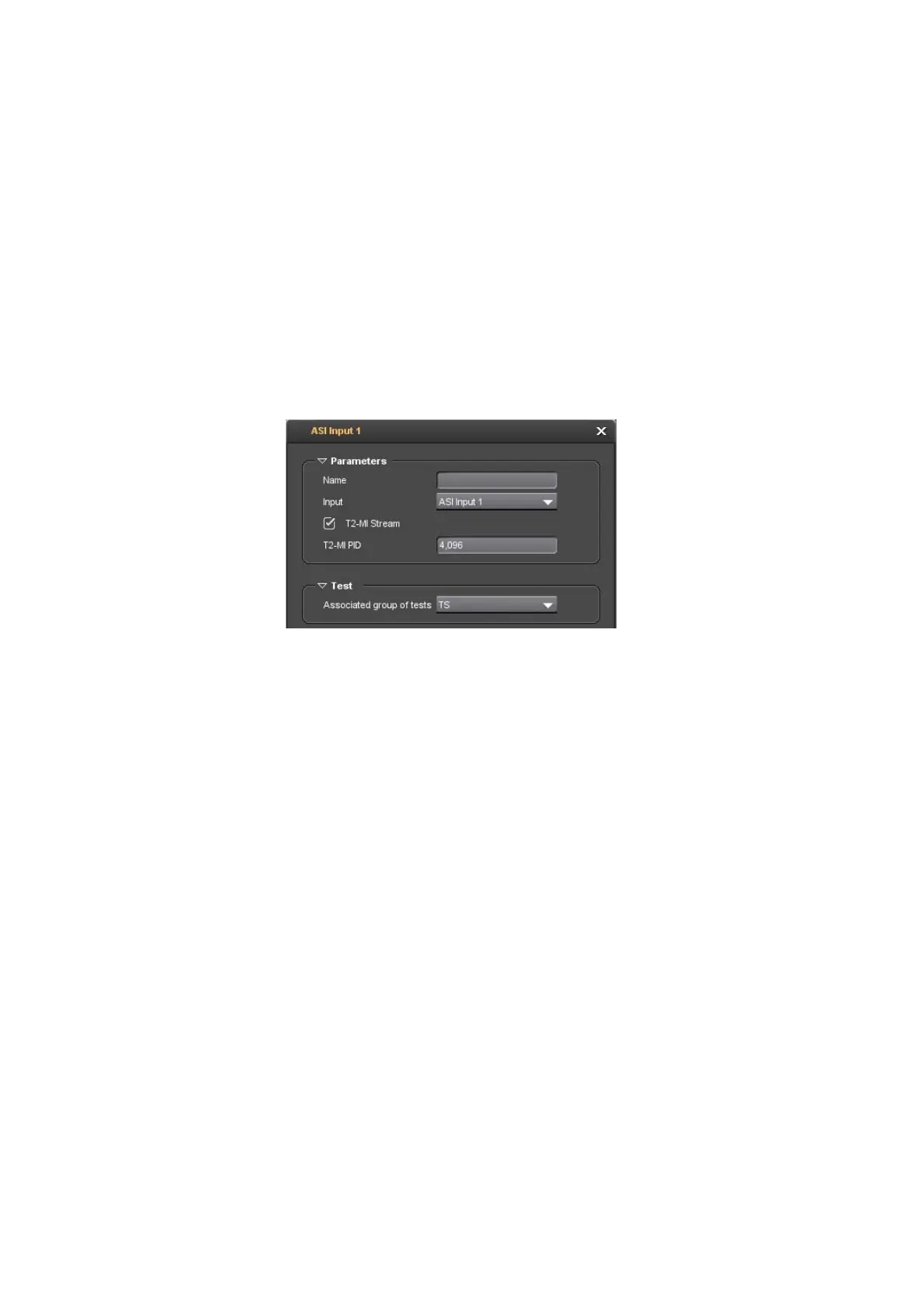

Figure 3-74. ASI Input dialog box
The following parameters shall be set:
Parameters Area
 Name: enter a name for the input, at your convenience. This name is
used in the Switches tab for a better readability.
 Input: select an input from the drop-down list.
 T2-MI Stream: if the input stream is a T2-MI stream, check this box and
indicate the PID that carries the T2-MI stream in the T2-MI PID field.
Tests Area
 Associated group of tests: select the group of tests to carry out. These
groups of test can be configured from the Te st s tab (refer to the
Section ’Tests Tab’ on page 174 for more information). 
If the stream is a T2-MI stream, add at least the T2-MI presence test. It
is also recommended to add the T2-MI PID continuity counter and
T2-MI Packet count error tests as these kind of errors may reset the
following modulator.
