Chapter 3 ’Web Browser Interface’ — Interface Description
168 Amethyst III DTV Smart Switch
User Manual

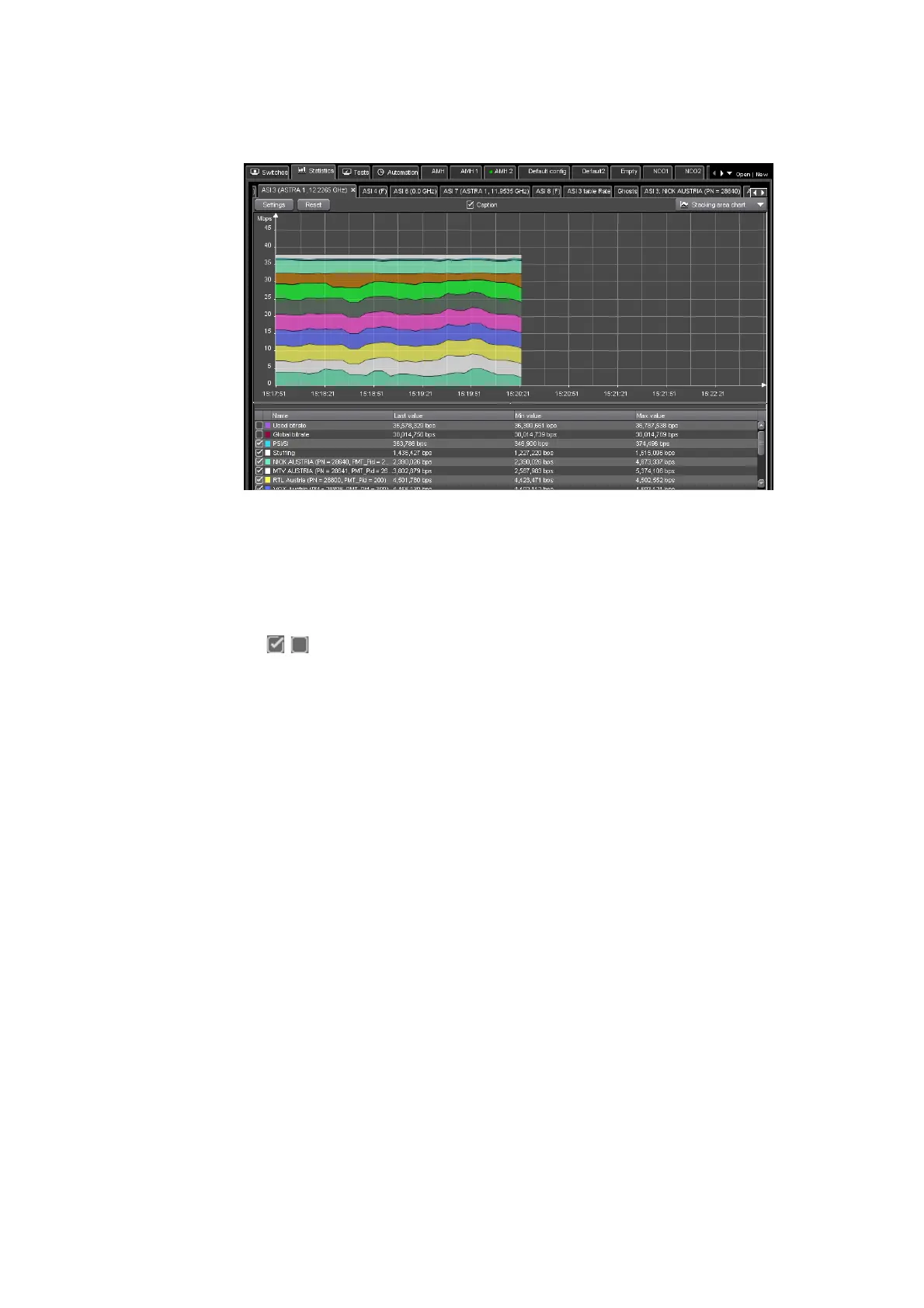

Figure 3-100. Statistics tab
On the top-right corner, you can select the type of chart to display: pie
chart, line chart, stacking area chart or bar chart.
Below the chart, a caption is displayed
in an array of stream elements.
Columns Overview
/ : check the box to display the corresponding element on the
chart.
Color rectangle: indicates the color used to represent the element on
the chart. To change the color, double-click the small color rectangle.
The Pick a Color
dialog opens for you to choose a new color. Click OK
to validate.
Name: depending on the selected item, this column displays:
For an input:
-
Name and number of the programs
-
PSI/SI for MPEG/DVB system tables
-
Stuffing for unused bit rate
For a PSI/SI item: PID and type of the PSI/SI components
For a program: PID and type of the program components
For a ghost: PID of the ghost components
Last value: last bit rate value for this element.
Min value: minimal bit rate value for this element.
Max value: maximal bit rate value for this element.
Display Customization
The caption array can be customized. You may indeed:
