38
OPUS Projektor Manual
User Interface

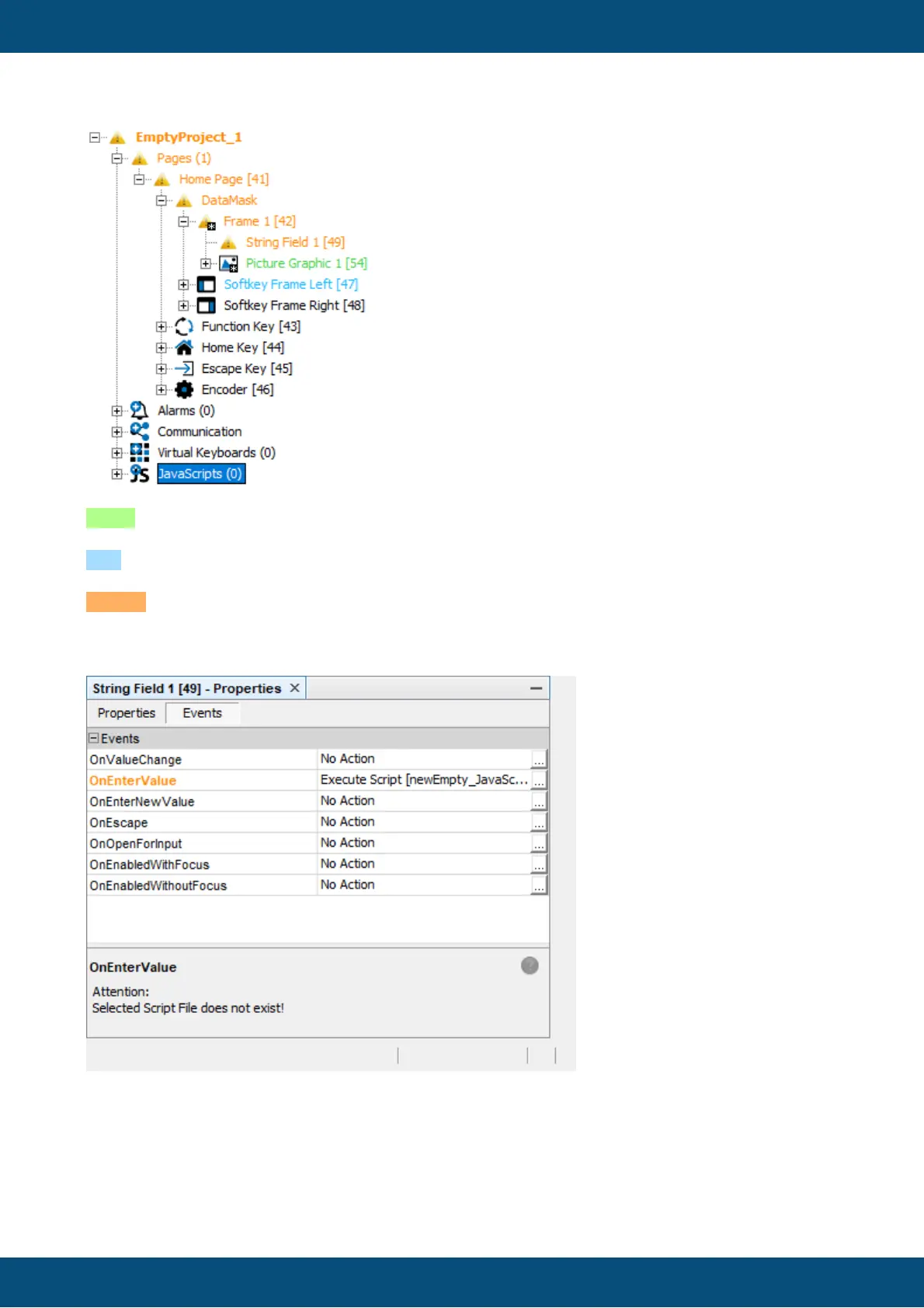

Green - This object has been created since the last save. Also indicated with a black asterisk
next to the object icon.
Blue - This object has been modified since the last save (or a child object has been added).
Also indicated with a black asterisk next to the object icon.
Orange - There is a problem with the properties for object. Select the object and then the
colored property or event to see a description of the problem. Also indicated with the yellow
warning icon.
The colors will be passed to the parent objects up to the project name. Note that with a new
object, only the object itself will be marked green. All parents will be marked blue, since for the
parents the new object is a change, but the parents themselves are not new.
In case there is both a problem and an object modification, the problem will be shown in the
project tree with higher priority.
