Jam Symbols

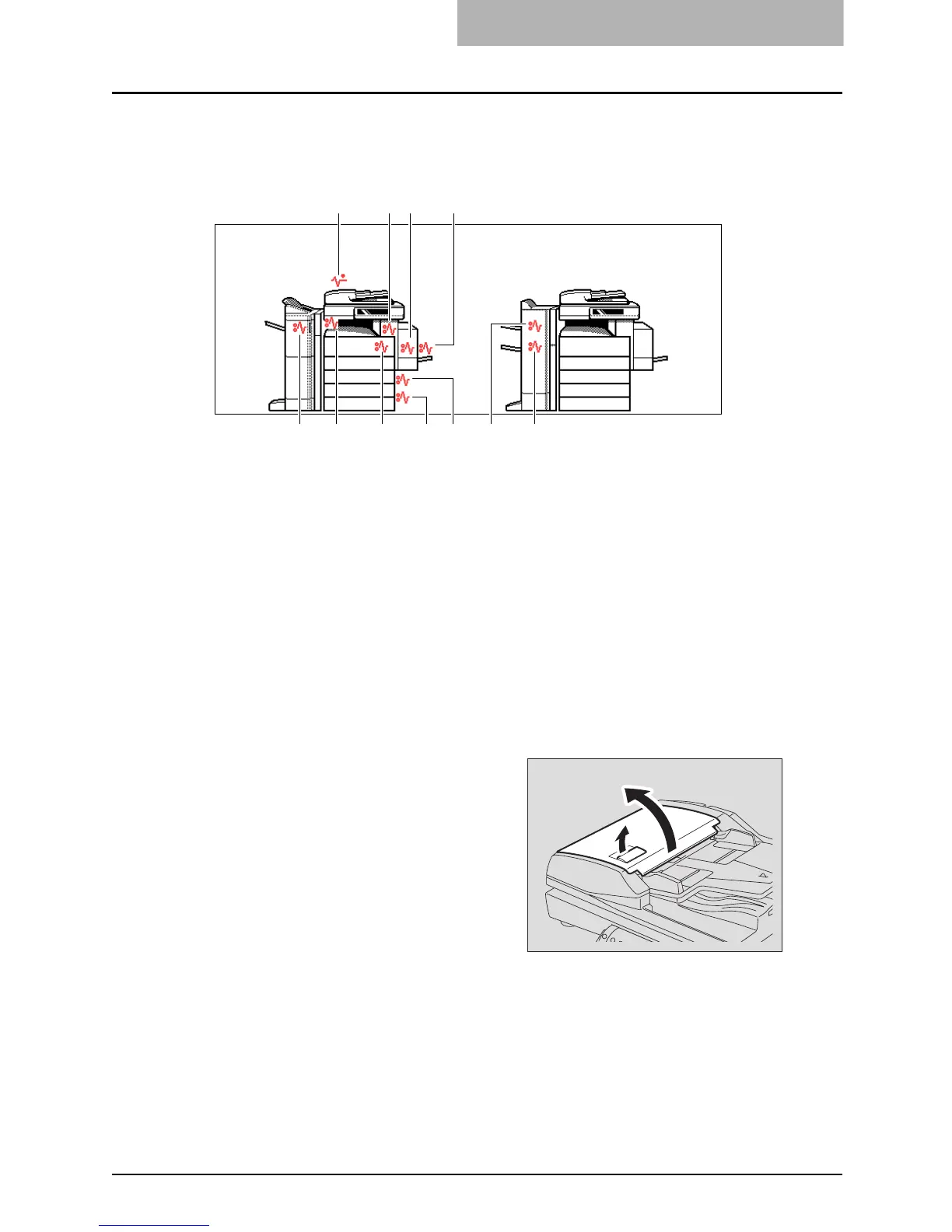

When a paper misfeed occurs in the equipment, the jam symbol blinks in the positions where the
paper is misfed. Follow the guidance on the touch panel to remove the misfed paper properly.
y The misfed paper may not be in the correct position as shown in the illustration depending on
the timing of the misfeeding.
1. Reversing Automatic Document Feeder (optional) ( P.305)
2. Fuser Unit ( P.312)
3. Automatic Duplexing Unit ( P. 3 11 )
4. Bypass tray ( P.310)
5. Drawer feeding area ( P.308)
6. Large Capacity Feeder or Paper Feed Pedestal (both optional) ( P.309)
7. Jam releasing cover ( P.311)
8. Bridge Unit (optional) ( P.315)
9. Finisher and Hole Punch Unit (both optional: MJ-1101, MJ-6101) ( P.316)
10. Finisher and Hole Punch Unit (both optional: MJ-1030, MJ-6004) ( P.321)
11. Saddle Stitch Unit of Saddle Stitch Finisher (optional) ( P.323)
Misfeed in the Reversing Automatic Document Feeder (optional)
1 42 3
7 119 8 56 10
1
Raise the lever, and then open
the upper cover.
