Once communicating with the Environmental Monitor (EVM) and Detection Management Software

(DMS), you have the option to download data, configure instrument parameters, and configure quick

setup features, such as the time and date settings. The following explains the EVM communication

download and/or setup steps.

1. Plug the USB cable into the powered on EVM and then connect it to the computer port.

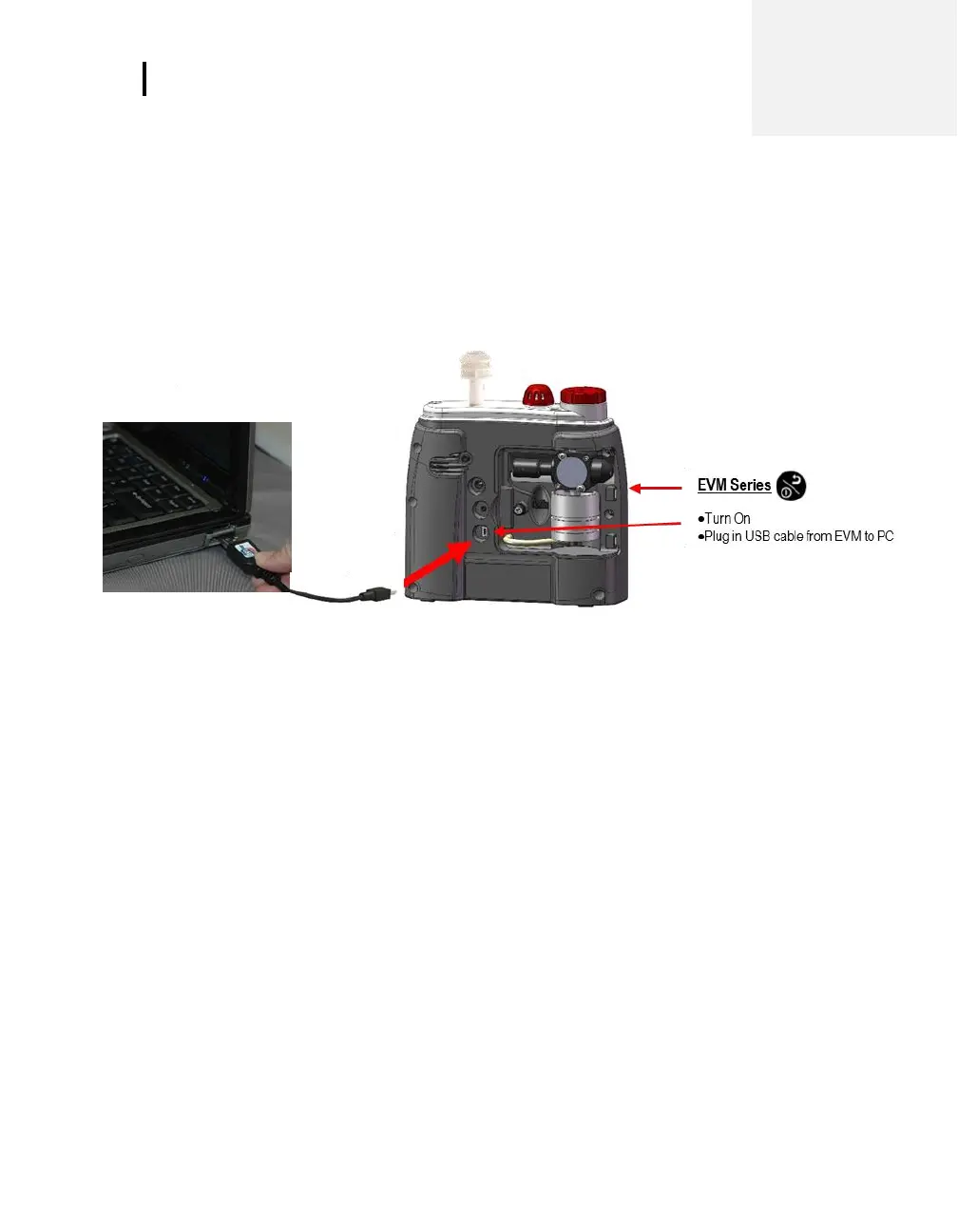

Figure 6: Communicating with the Environmental Monitor

and Detection Management Software
