TSI Quest EVM-7 User Manual

156 Appendix D

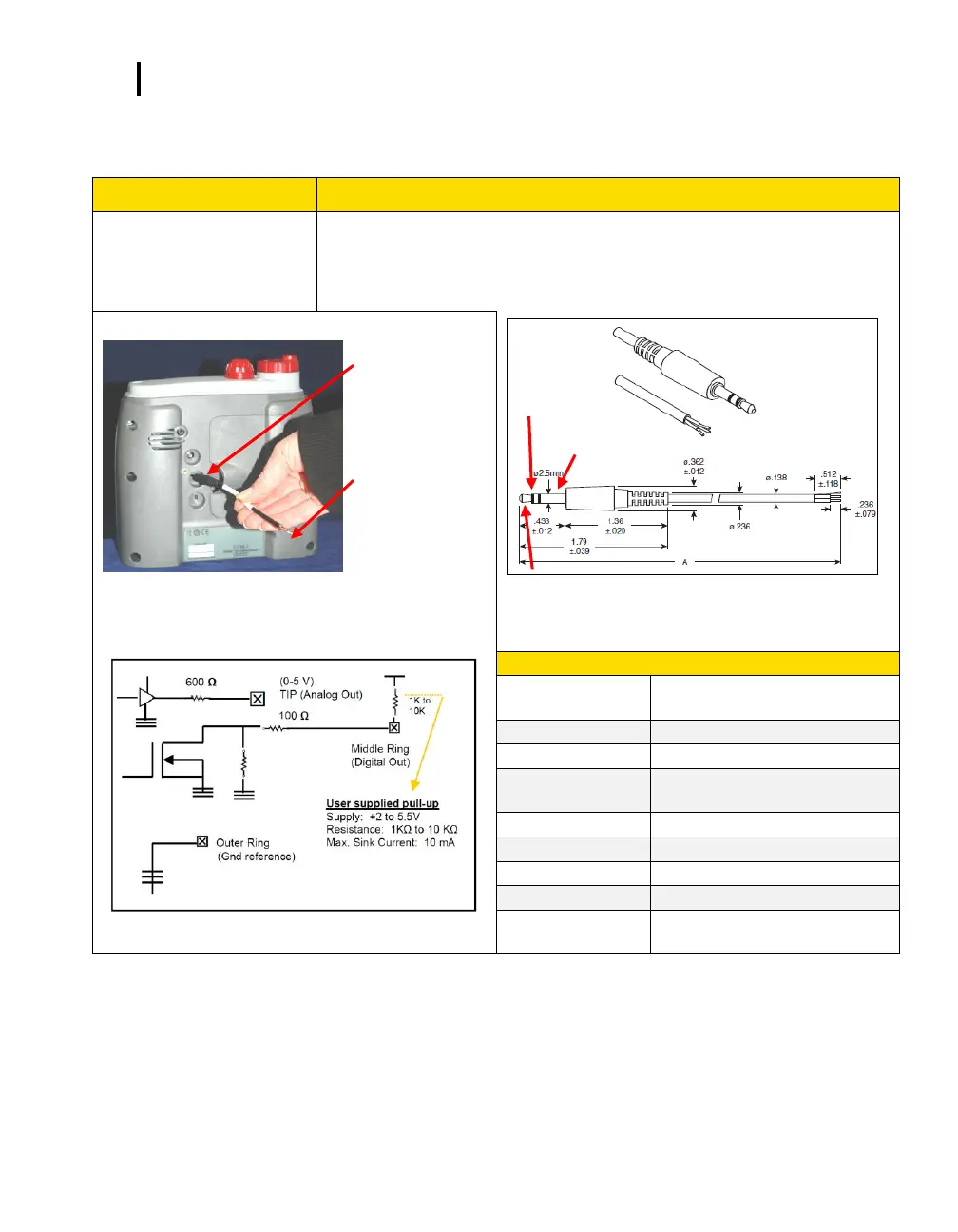

Digital Output (using stereo plug & diagram)
EVM Series User Manual
Digital Output (using stereo plug & diagram)
Question
Response/Solution
1. How do I access my
analog or digital out
connection?
Using a Stereo plug (as the example shows below), connect the analog tip of the
plug to the analog/digital output port (Figure A). Use Diagrams below to connect
external device. (Please contact TSI technical support for stereo plug details.)
(Figure B).
Figure A: Analog/Digital Output
Figure B: Stereo plug
Stereo Plug Specifications (See “Figure B” above)
Type:
2.5-mm Stereo Plug, Stripped &
Tinned, Shielded
Temperature:
60
o
C
Voltage Rating:
24 VDC
Conductor:
26 AWG (.12 mm x 10) Copper Wire
with PVC Jacket
Shield:
.12 mm x 30 Wrapped Copper Wire
Plug:
Brass
Tip Insulator:
ABS
Body & Jacket:
PVC
Wire Color Coding:
Plug Tip (White), Ring (Red),
Sleeve (Shielding)
Input/Output
Port
User connector
end (e.g. for a
chart recorder or
for a light
notification
device)
Analog (tip)
Digital
(Middle ring)
Ground
(outer ring)
