Summary Data
In each of the measurement screens, a Detail soft key will appear. Once selected, you can view a quick
summary of all measurement calculations in one screen. This is explained below.
Viewing Details in the Measurement Screen
 Viewing the composite measurements in individual summary screens
1. To view details of a sensor, select a measurement screen and then select/highlight a specific
sensor (if more than one is displayed).
 For example, to select PM from the Composite screen, press ▲/▼ Arrows or the Select
soft key.
2. Press the Detail soft key and a summary screen of the selected measurement screen (i.e., PM 2.5
– particulates screen) will appear.
PM (Composite) details
screen
Exit soft key

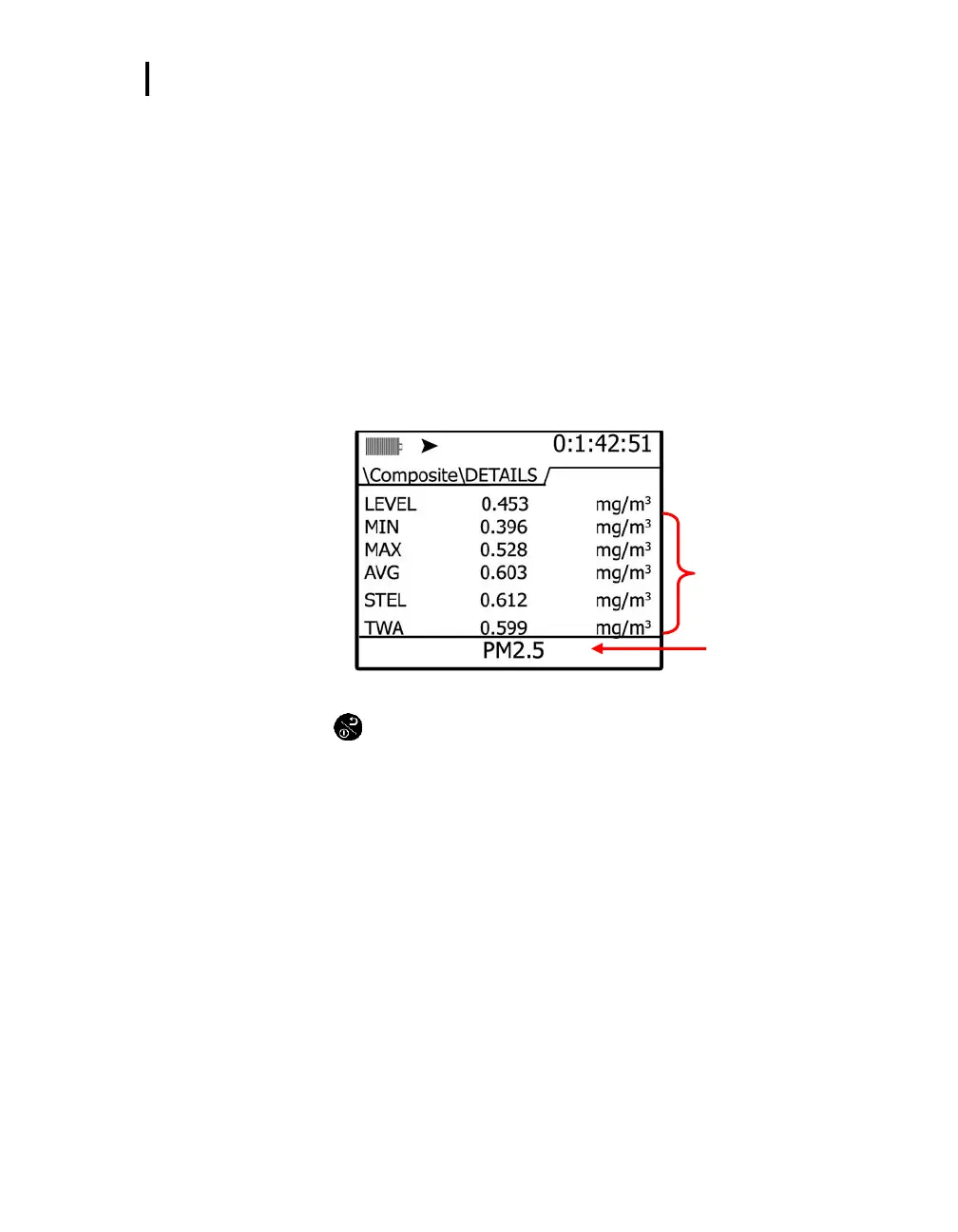

Figure 5-12: Details of the composite measurement screen
3. Press On/Off/Esc to return to the previous screen.
 Repeat these steps to view other sensor measurements.
