EVM Series User Manual
Setting Analog-Out
1. From the setup screen, select Aux I/O and press Enter
.
2. Press ▲/▼ Arrows to select Analog-Out and press Enter
.
3. To enable or disable, press Enter
when Analog-out is selected and press ▲/▼ Arrows to
change the setting. Press Enter
to move back to the 1
st
column.
4. To select a sensor, ensure Sensor is selected and press Enter
. Then, press ▲/▼ Arrows to
page through the selection list. Once the appropriate sensor is selected, press Enter
.
5. To return to the start screen, press On/Off/Esc twice.
Disable/Enable Analog-out field
Select a Sensor

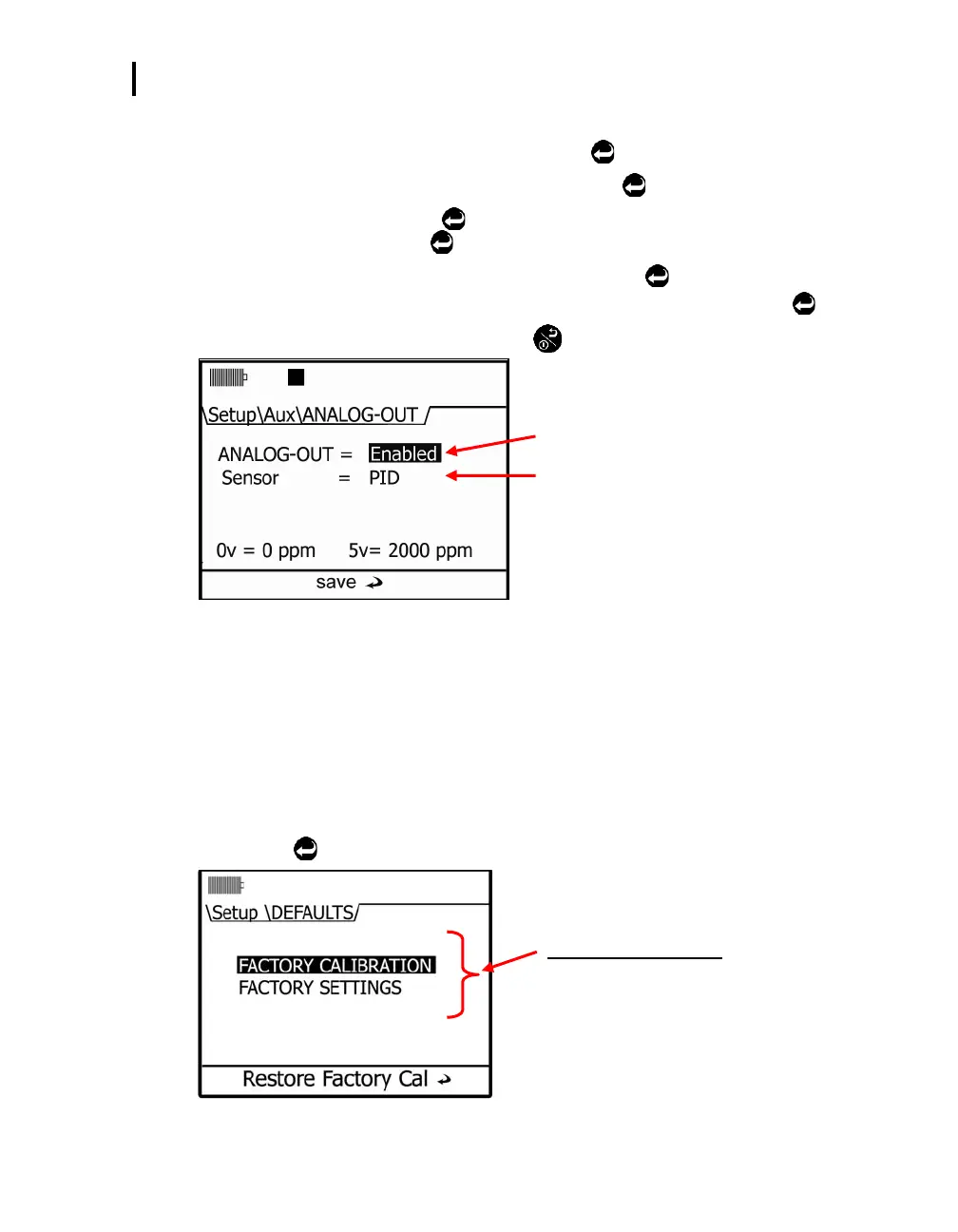

Figure 3-16: Analog-Out screen
Restoring Default Factory Settings
The EVM is equipped to restore all factory settings and factory calibration settings via the Defaults
screen.
NOTE: Dew Point and Air Velocity are not user calibrated and therefore, not listed in the restore
factory calibration screen.
1. In the Setup menu, press ▲/▼ Arrows until Defaults is selected (or highlighted).
2. Press Enter
(to open the screen).
Restoring Default settings
Select either (or both) to restore all
factory cals/settings.
Figure 3-17: Defaults screen (restoring factory settings)
