Particulate Pump: Enable or Disable
EVM Series User Manual
Particulate Pump: Enable or Disable
You may want to disable the particulate pump for situations in which the environment is too dirty for the
particulate optical engine or if you want to keep the engine and pump clean and dry from oily mists,
liquids, or fogs elements. Additionally, you may want to log other parameters, such as CO
2
, Toxic,
and/or temperature and humidity parameters and exclude the particulate measurements from a log
session. This is changeable in the particulate screen.
Enable/Disable the pump
1. From the Start screen, select the Setup menu by pressing ▲/▼ Arrows and press Enter
.
2. Press ▲/▼ Arrows repeatedly until Particulate is selected and press Enter
. (The particulate
setup screen will appear.)
3. To enable/disable the particulate setting/pump, ensure Particulate is selected and press
Enter
.
4. Press ▲/▼ Arrows to select either Enabled or Disabled and press Enter
. (Refer to Figure 3-7
to view a sample screen.)
5. Press On/Off/Esc twice to return to the start screen.
Resetting the Gravimetric Filter
The Gravimetric accumulators display the calculated accumulated mass of particles and the
accumulated volume through the gravimetric filter (since the last time these accumulators were reset).
At the same time, the particles are actually collected in the gravimetric cassette in the back of the unit.
Typically the gravimetric accumulators are reset when the gravimetric cassette is replaced by the user.
Resetting gravimetric filter
1. From the Start screen (see Figure 3-2 for details), select Setup by using ▲/▼ Arrows. Press
Enter
.
2. Press ▲/▼ Arrows to select the Particulate screen and press Enter
. (The particulate screen
will appear.)
3. To reset the Gravimetric filter, select the Grav. Mass/Grav. Volume fields by pressing ▲/▼
Arrows. Once selected, the Reset soft key will appear. Press this soft key to reset.
Reset soft key
Visible when grav. mass
menu item is highlighted
Displays accumulated
particulate mass & volume

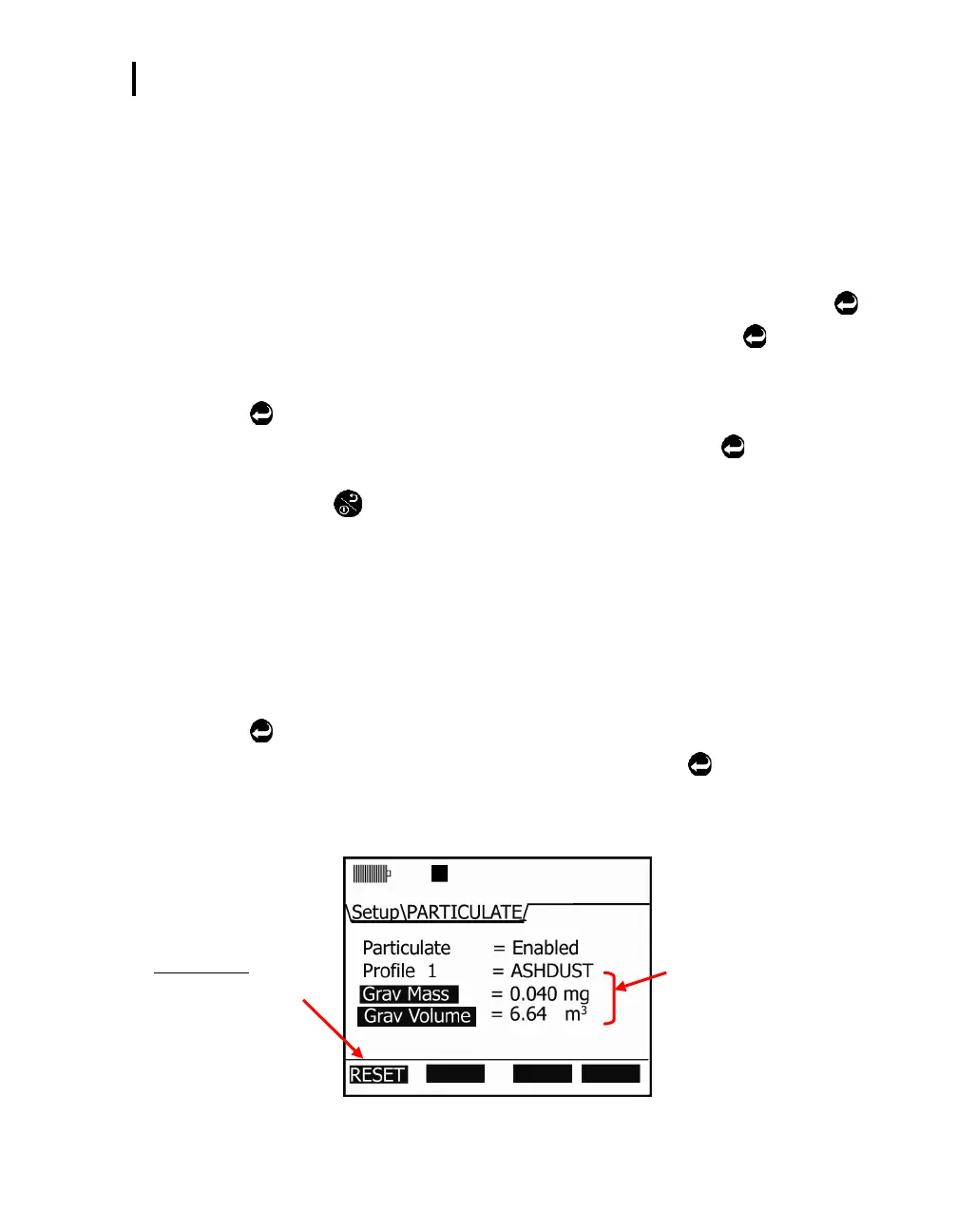

Figure 3-12: Particulate setup screen
