Setting up Parameters via the Keypad
How Particulate Factors are Adjusted and Calculated
EVM Series User Manual
4. Select the Profile field by pressing ▲/▼ Arrows and press the Edit soft key.
Profile
Select this field and then press Edit soft key to
modify the Profile screen.
Edit soft key
Visible when profile menu item is highlighted

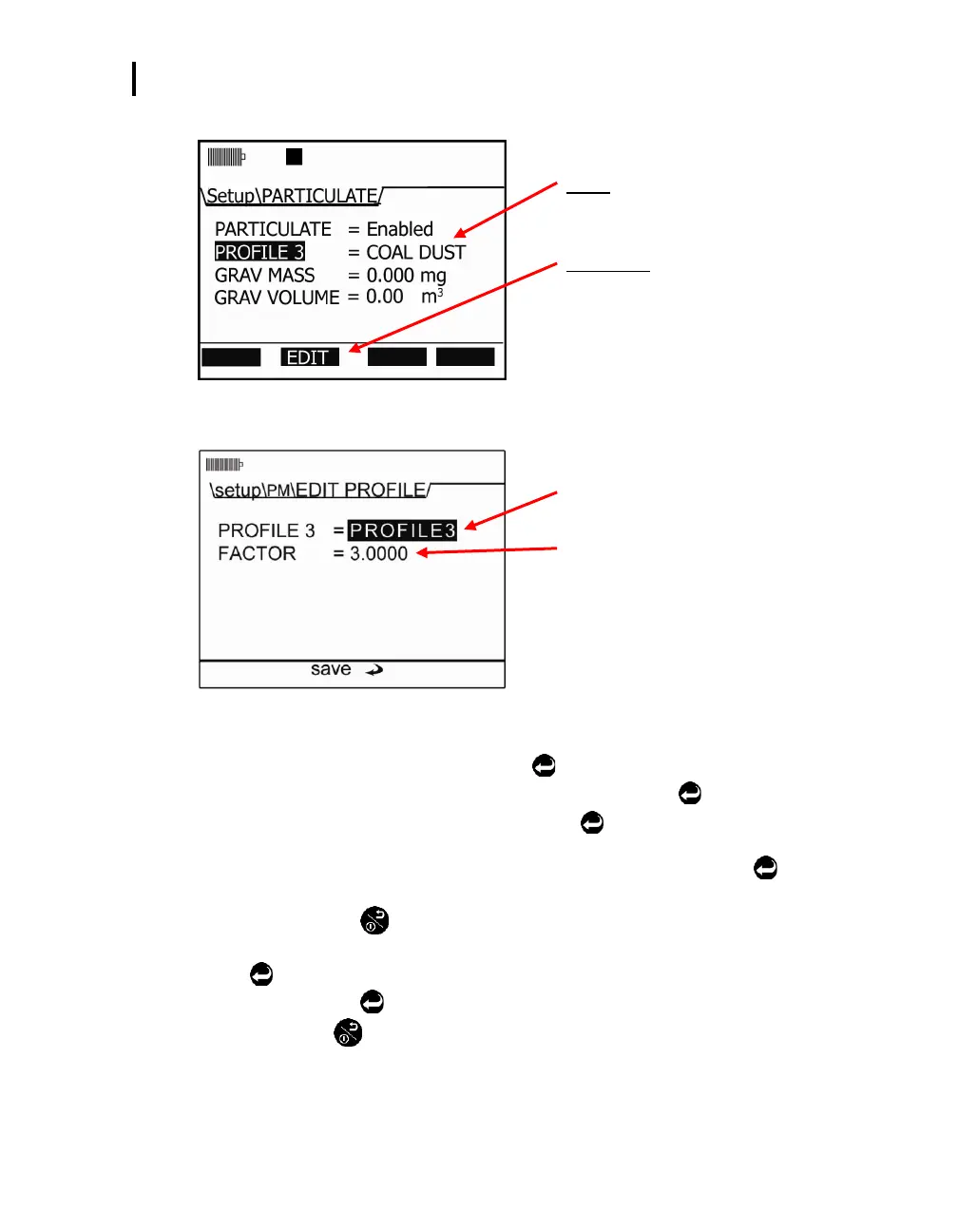

Figure 3-10: Edit profiles for dust calibration
5. Press the Edit soft key and the Edit Profile screen will open.
Profile name
Optional: customize the profile name
Factor
Figure 3-11: Entering a profile for particulate calibration
6. (Optional, see step seven if not changing profile name.) To change the name of the profile, ensure
the profile field is selected and press the Enter
. Press ▲/▼ Arrows to change the characters.
To move to the next position, press ◄/► Arrows then press Enter
.
7. Press ▼ Arrow to select the Factor and press Enter
to move to the 2
nd
column. Press ▲/▼
Arrows to change the numeric value. Press the left/right arrow key to move to the next position.
Continue this process until the appropriate number is selected and press Enter
to confirm or
Esc key to cancel changes.
8. Press the On/Off/Esc
to return to the particulate screen.
9. To apply a new profile, select the profile field and move to the second column (by pressing
Enter
.) Then continuously press ▲/▼ Arrows until the appropriate profile/correction factor is
selected. Press Enter
to return to the first column.
10. Press On/Off/Esc twice to return to the start screen.
