Placement and Calibration of Sensors
Calibrating Toxic Gas Sensors
EVM Series User Manual
Toxic Gas Span Calibration
When conducting a span calibration, the calibrated gas used should match the sensor you will be
calibrating.
NOTE: For Ozone span calibration, an ozone generator should be used.) If you are continuing from
the Toxic Zero cal section, the screen you will be viewing is the Calibrate/Pause screen. (If
you are performing a Span cal only, ensure you are at the Start screen and select the
calibrate menu. Then select the specific sensor by pressing up/down arrows. Press the Cal
soft key and then press the Span soft key. Proceed to Step 2.
Performing a span cal for Toxic gas
1. Continuing from the zero cal procedures, you should be viewing the Cal/Pause screen (as
displayed in Figure 4-17). Press the Span soft key.
2. Apply the gas at full flow rate while observing the “Level” field on the display. Wait for the current
level to stabilize (allow a couple of minutes).
Level
Allow to stabilize
Set

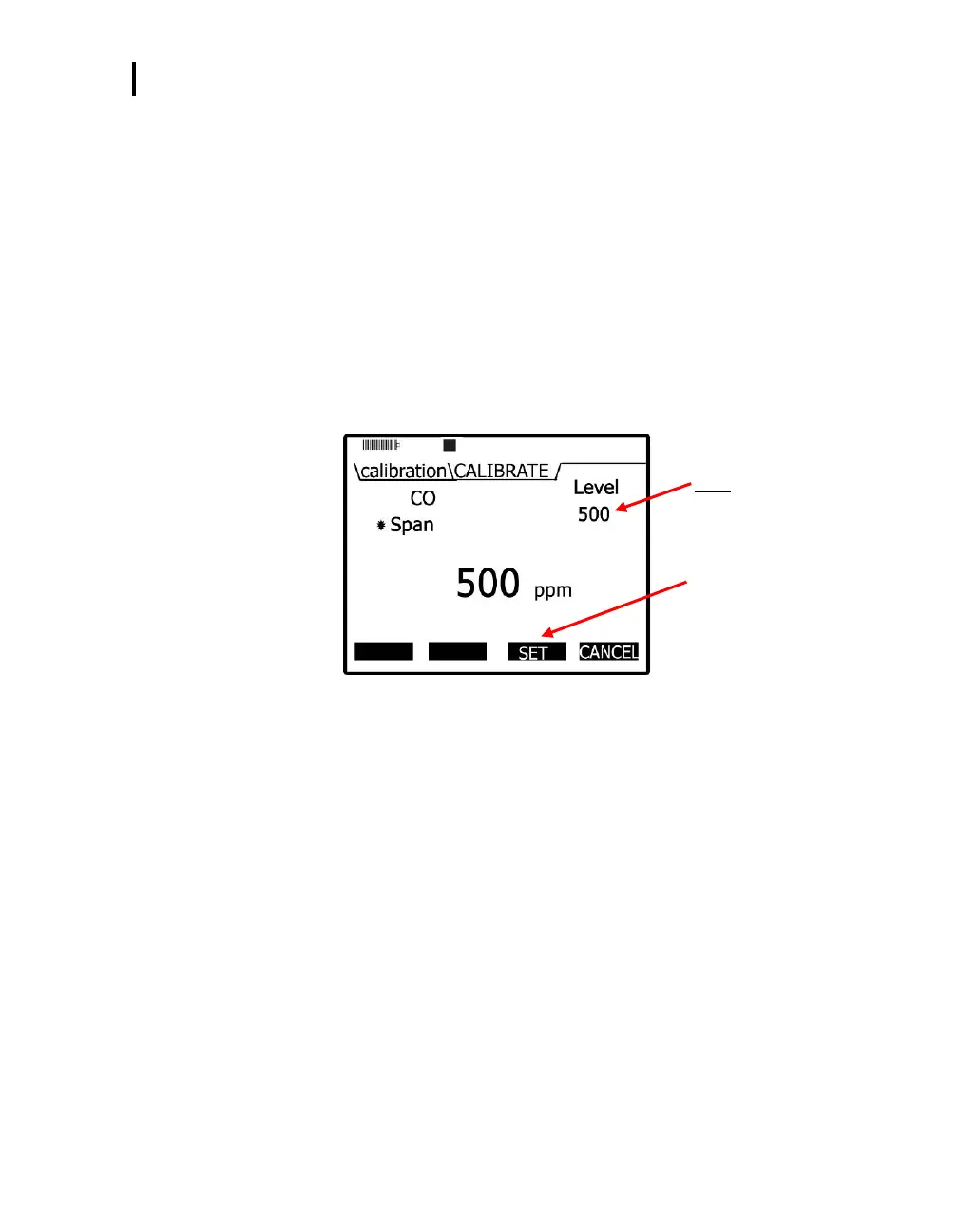

Figure 4-21: Span Calibration
3. Adjust the span value by pressing ▲/▼ Arrows on the keypad.
4. Press the Set soft key to store the span cal. point. (A screen will appear displaying that you set the
span cal. point.)
To Next Page
