Commissioning

Setting the IP address

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 33

 Change the IP address and if necessary the network mask and gateway.

 Accept the changes by clicking Set in device.

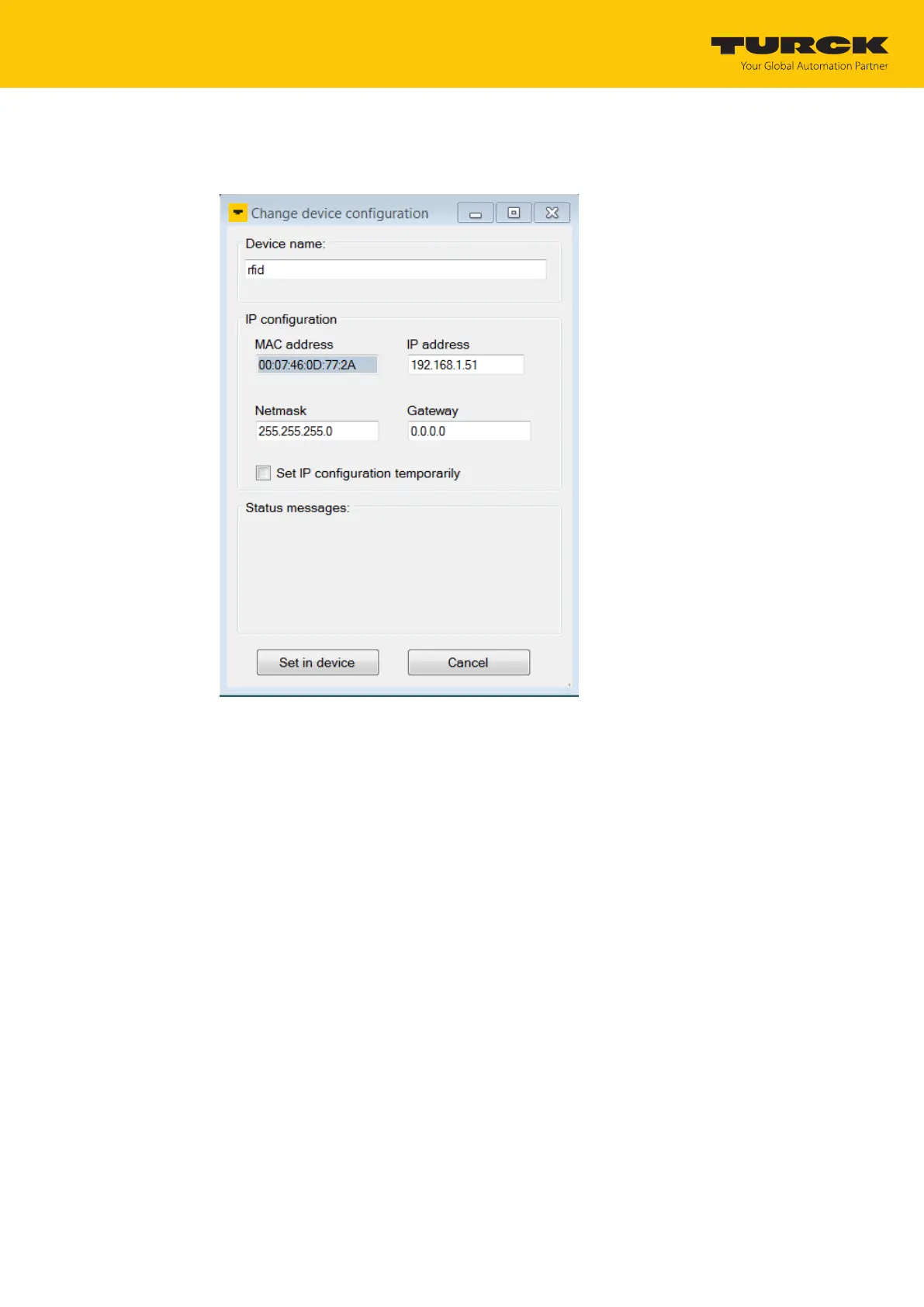

Fig.31: Turck Service Tool — changing the device configuration
