Commissioning

Connecting the device to a Modbus master with CODESYS

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 39

 Select Append device.

 Select Ethernet adapter.

 Click Append device.

a The Ethernet adapter appears as Ethernet (Ethernet) in the project tree.

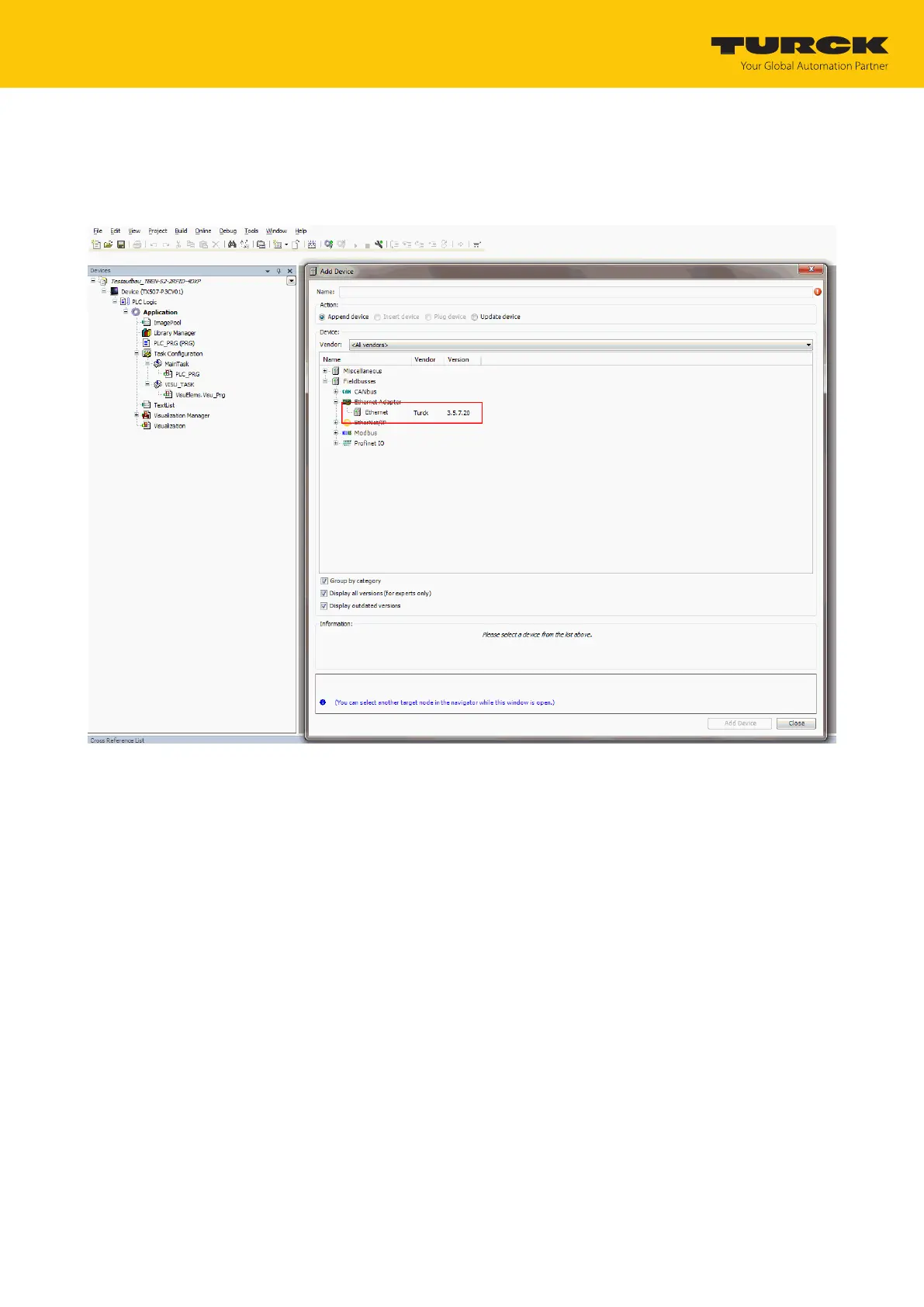

Fig.36: Adding an Ethernet adapter
