Waters GCT Premier - Page 174

9-4 FI/FD Operation
2. Remove the EI/CI outer source assembly from the instrument.
See also: Removing the EI/CI outer source from the instrument on
page 2-6.
3. Carefully lower the FI/FD outer source lid assembly vertically into the
outer source enclosure using the two studs to ensure correct alignment.

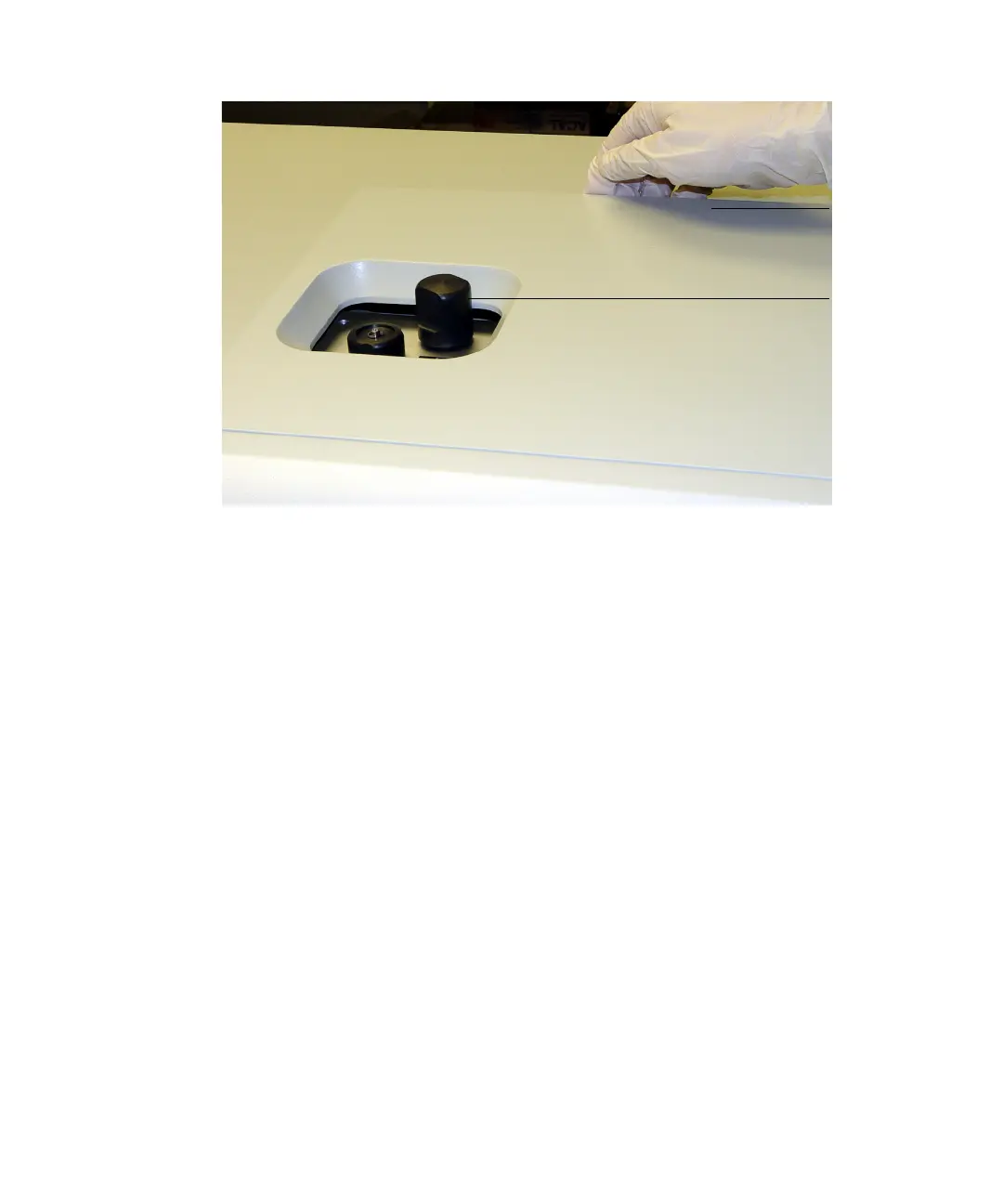

Top cover
Reference
reservoir
pump
valve
