EI/CI inner source maintenance 10-25

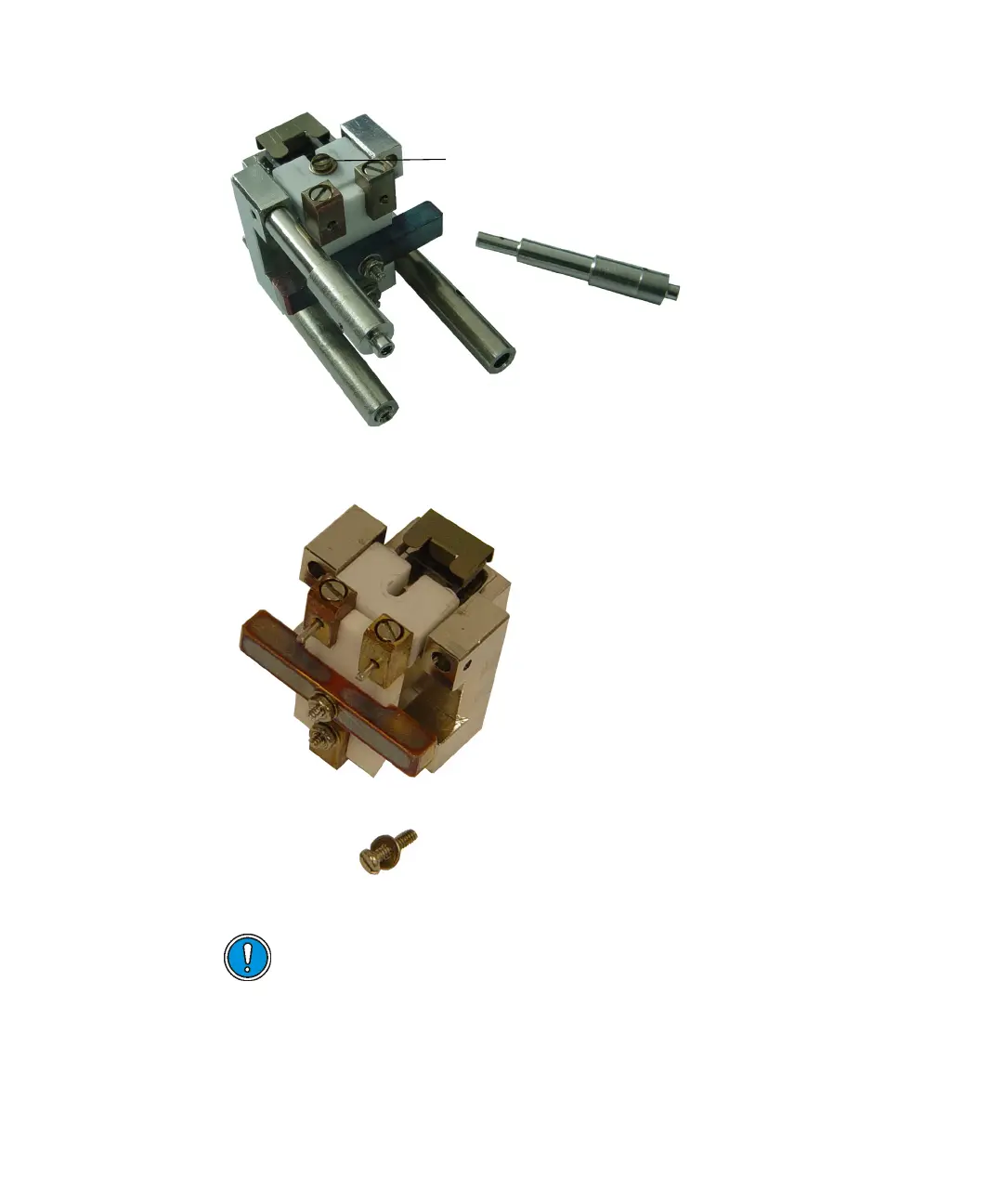

8. Unscrew and remove the filament securing screw.

9. Remove the filament from the inner source.

Caution: The filament is fragile. To avoid damaging it, handle

with care.

Filament securing screw
