Chapter 10 Troubleshooting 40058725 BTA Alpha HSM
Version: 12.19.17 Page 105 of 112 GB
The label is crooked on the product.

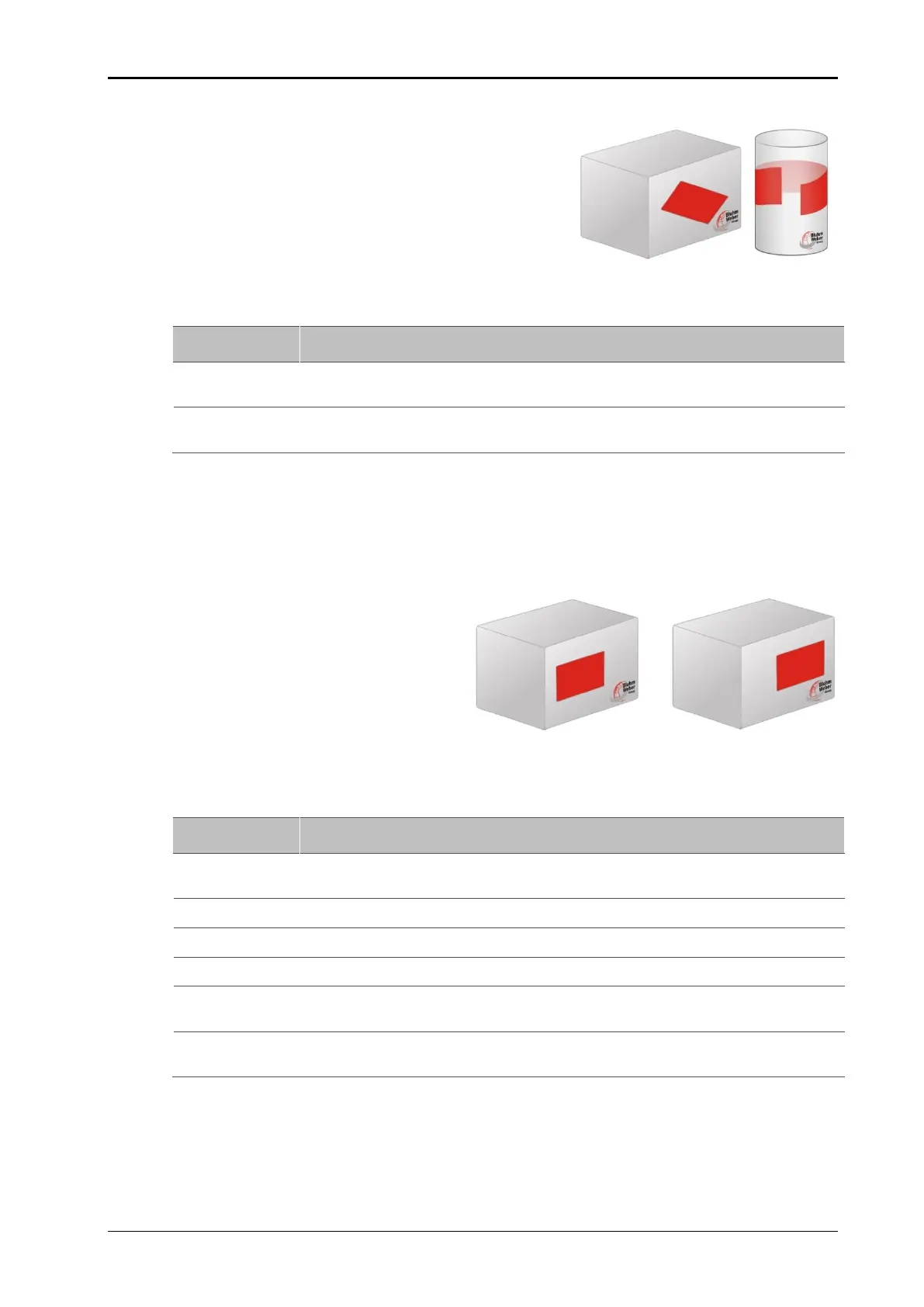

Fig. 10-3: Product with a crooked label
The labeling result must be corrected as follows:
Step
Approach
1
The inclination of the peeler plate could be set incorrectly. Check and correct
the inclination of the peeler plate.
2
The pressure roller could slow down the product too much. Check and cor-
rect the application pressure.
The position of the label changes from product to product.
Fig. 10-4: Product with a position shift of the labels
The labeling result must be corrected as follows:
Step
Approach
1
The dispensing rate might be too high or too low. Correct the application
speed of the label.
2
Check and correct the sensor for product recognition.
3
Check and correct the distance from the peeler plate to the product.
4
Check and correct the label sensor...
5
The pressure roller could slow down the product too much. Check the appli-
cation pressure.
6
The start delay time may be too short or too long. Correct the input of the
start delay time.
