Chapter 7 Settings and commissioning 40058725 BTA Alpha HSM
Version: 12.19.17 Page 50 of 112 GB
Unwinder (Performance)
Dancer arm adjustment
Depending on the label format, the retraction force of the dancer arm can be reduced or
increased. If, under certain circumstances, very narrow label material tears or stretches to
such an extent that the dispensing accuracy fluctuates, it is advisable to reduce the force
of the dancer arm. Conversely, a stronger force can be advantageous for very wide label
material.
With the adjusting handle (pos. 2, Fig. 7-1) the retraction force can be adjusted in two
stages, stage 1 corresponds to the lowest and stage 2 to the highest force setting.

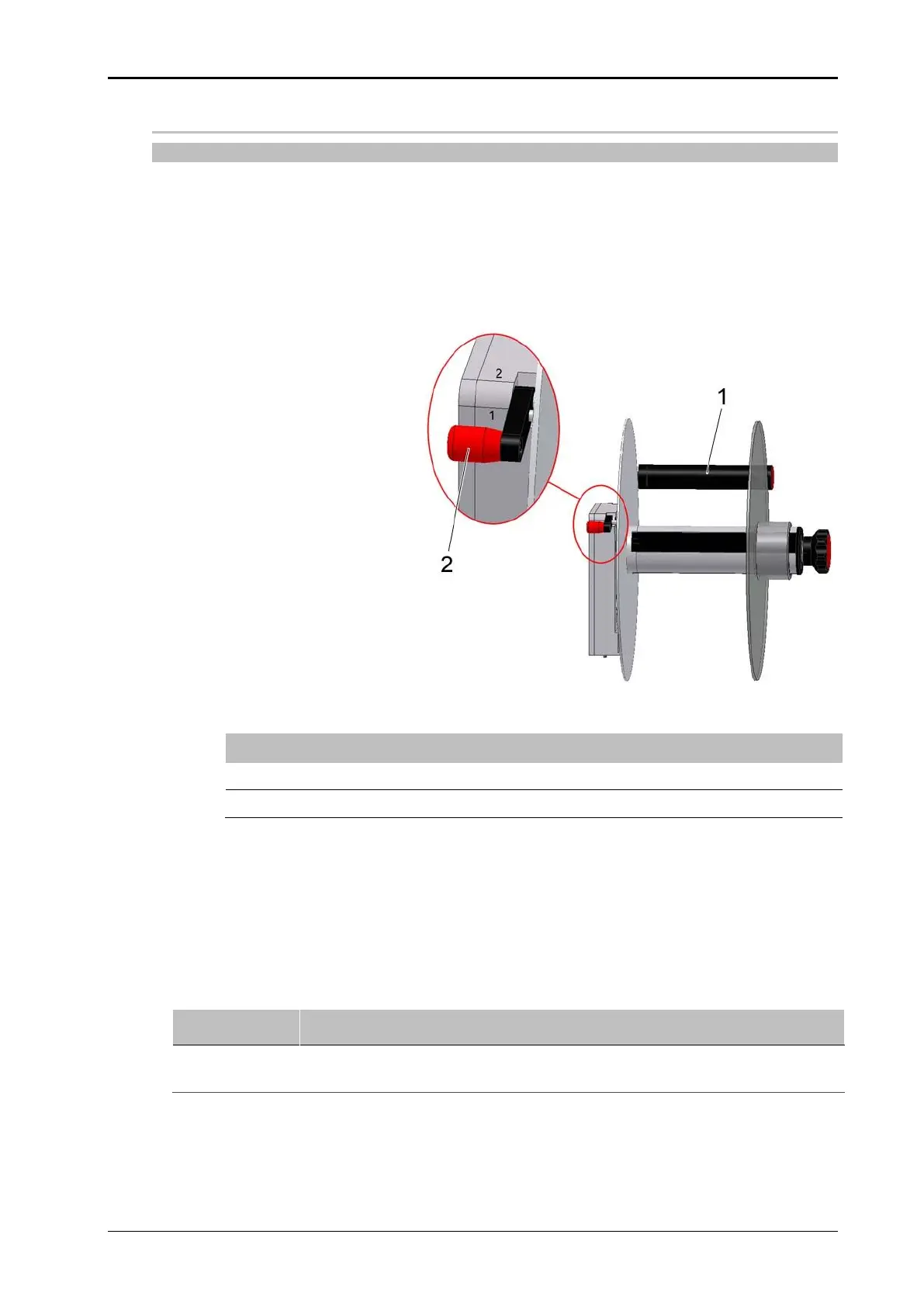

Fig. 7-1: Adjusting the dancer arm on the unwinder
Prerequisites
No product transport
The labeler is turned off
Instruction
How to adjust the dancer arm retraction force.
Position the adjusting handle in the appropriate position depending on the
label format and material properties.
