Weber Alpha HSM - Indicator Lamps Control Unit; Control Unit Drive Module; Unwinder (WAC05) and Rewinder (WAC06)

Chapter 8 Operation 40058725 BTA Alpha HSM
Version: 12.19.17 Page 70 of 112 GB

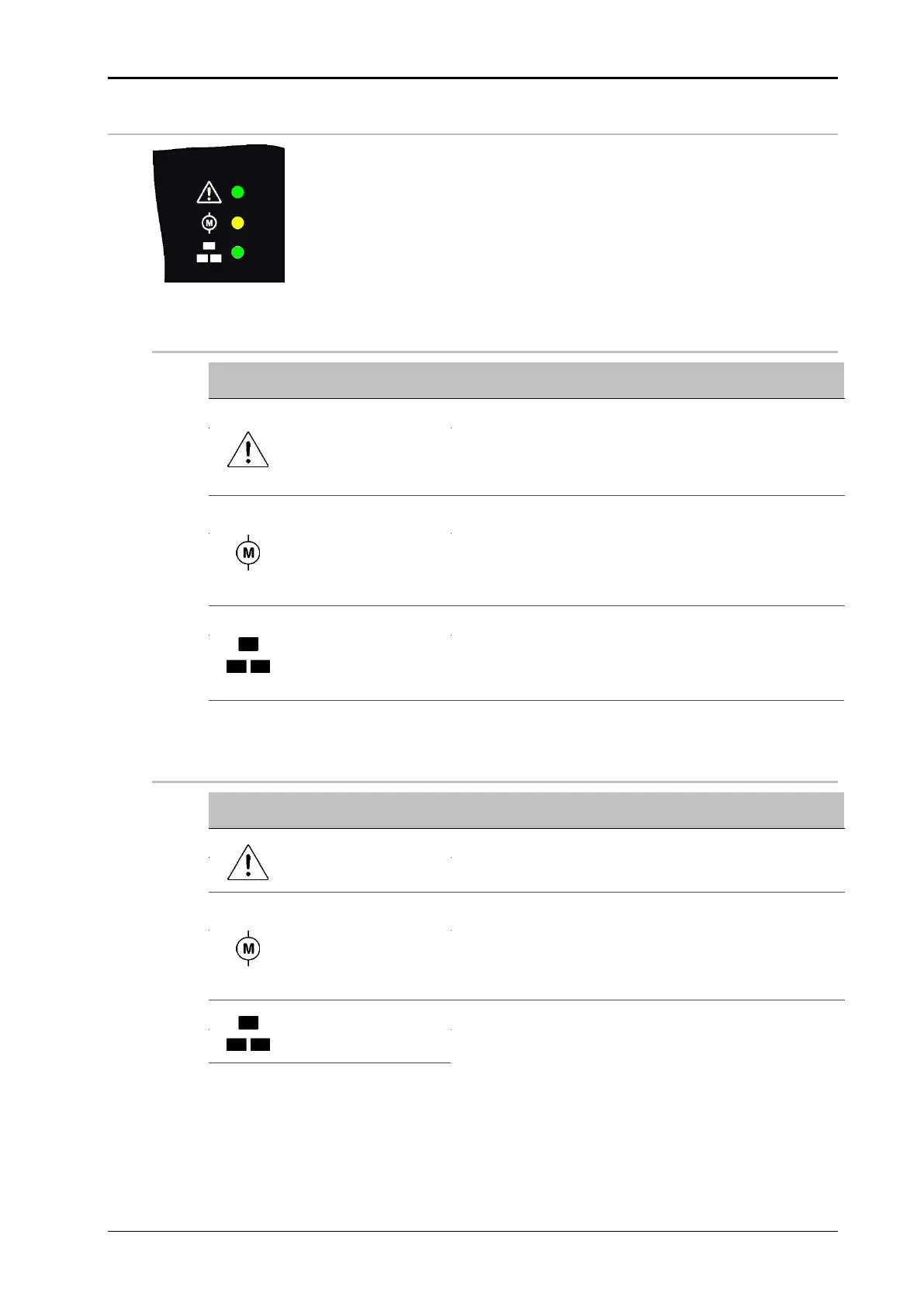

Indicator lamps control unit
Fig. 8-5: Indicator light
In addition to the symbols shown here, there are three light emitting
diodes on the control units, which light up in different colours de-
pending on the operating state.
The meaning of the different colour messages is explained in the
table below.
Control unit drive module
Symbol
Function
Description
Operating lamp

Green
Ready for use

Yellow
Warning available

Red
Error present
Motor lamp

Green
Dispenser in RUN mode

Yellow
Dispensing active

Red
Dispensing in setup mode
Network lamp

Green
Network link OK

Yellow
Data transfer active

Red
Network error
Unwinder (WAC05) and Rewinder (WAC06)
Symbol
Function
Description
Operating lamp

Green
Ready for use

Yellow
Rotor position detection active
Motor lamp

Green
Unwinder/rewinder during operation

Yellow
Reference movement dancer arm
active

Red
Error present
Network lamp

Green
Bus connection to NGDSP OK

Yellow
Data transfer active
