Weber Alpha HSM - Rewinder (Motorized)

Chapter 7 Settings and commissioning 40058725 BTA Alpha HSM
Version: 12.19.17 Page 58 of 112 GB
Rewinder (motorized)

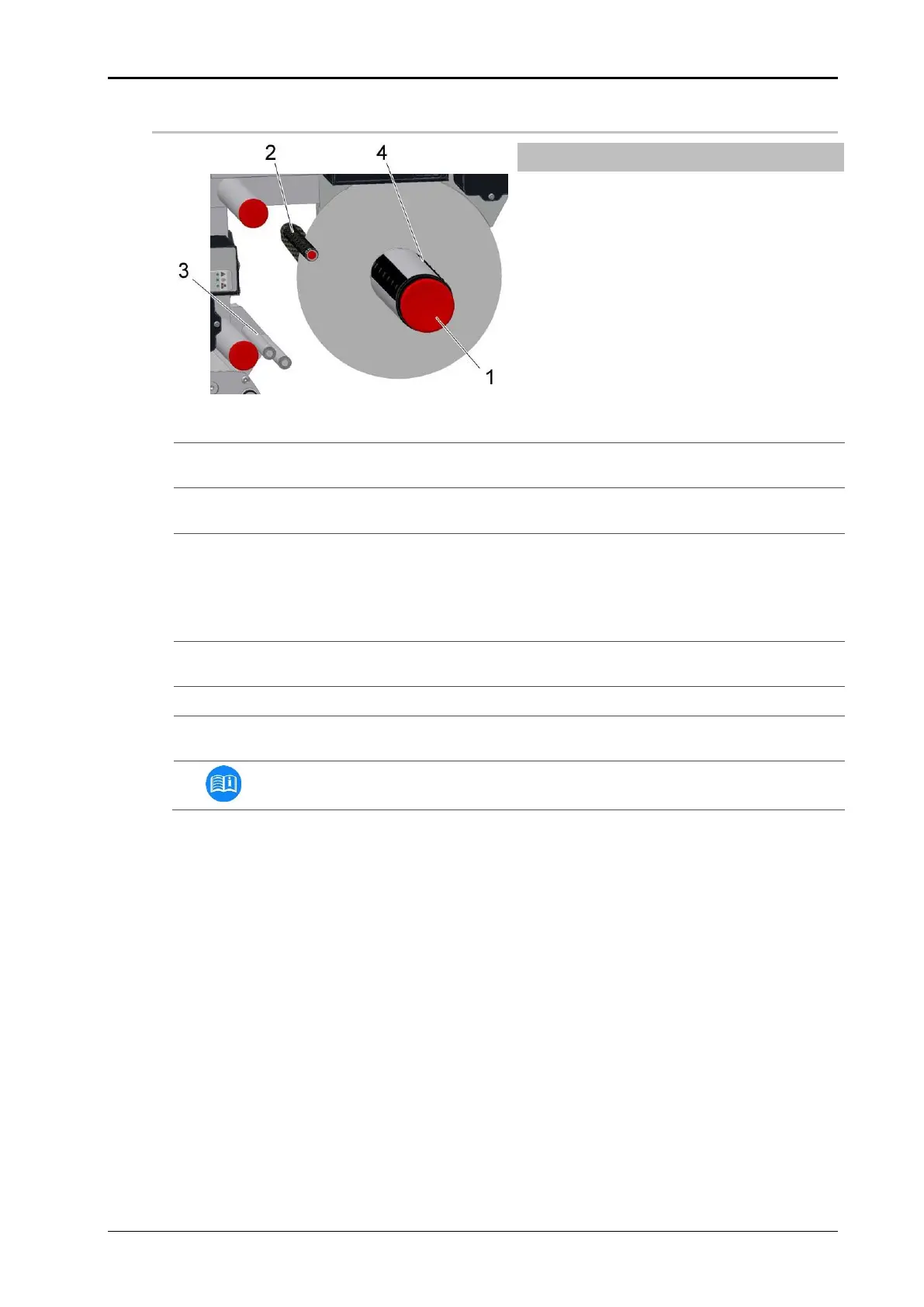

Fig. 7-12: Motor-driven rewinder, insert labels
No.
Designations
1
STAR GRIP
2
DANCER ARM
3
DEFLECTION ROLLERS
4
SLOT (WINDING AXLE)
1
To open the clamp, use the star knob (pos. 1, Fig. 7-12) and turn it counter-
clockwise until it clicks into place.
2
Guide the carrier material over the dancer arm (pos. 2, Fig. 7-12) und deflec-
tion roller (pos. 3, Fig. 7-12) to the rewinder axle.
3
Guide the carrier material around the winding axle and guide it into the slot
(pos. 4, Fig. 7-12).
or
Place an empty cardboard sleeve on the rewinder axle, attach the carrier
paper to the cardboard sleeve using an adhesive strip (label) and rewind it.
4
Turn the star knob clockwise until the star knob engages and the carrier
material or cardboard sleeve is clamped.
5
Turn the rewinder axle until the carrier material is tightened.
6
Make sure that the label web runs in a straight line from unwinder to rewind-
er.
7
Set the web brake on the peeler plate to a low braking force.
