Chapter 8 Operation 40058725 BTA Alpha HSM

Version: 12.19.17 Page 80 of 112 GB

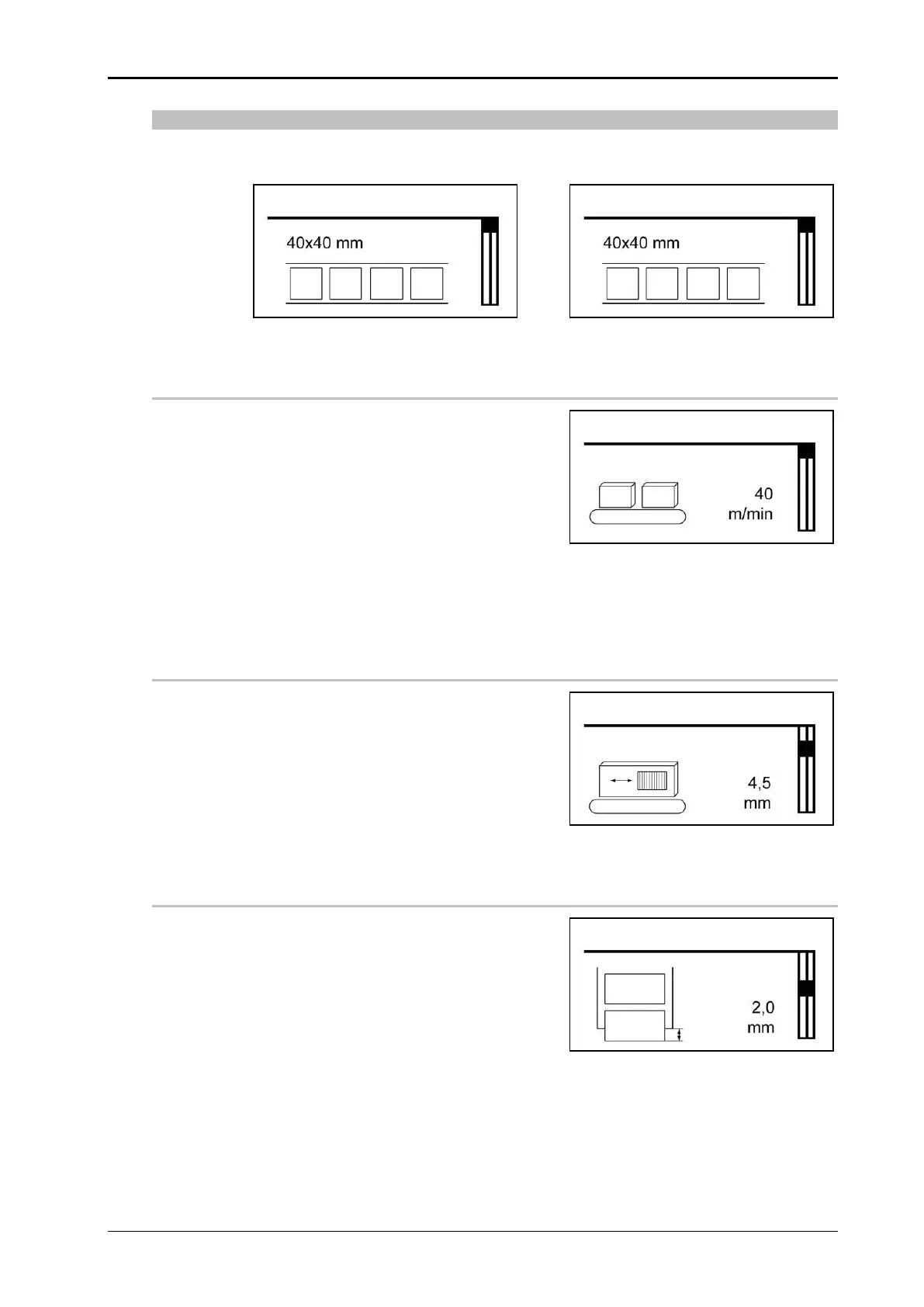

Loading a parameter set

After selecting an inactive parameter set, you can load this parameter set into the control-

ler and activate (allocate) (see Fig. 8-22) or delete it (see Fig. 8-23).

Fig. 8-22: Config the parameter set

Fig. 8-23: Deleting the parameter set

Speed

Speed at which the label is dispensed.

The advance speed of the labels can be set to a

fixed value.

If the speed is to be automatically adapted to the

conveyor belt technology, this requires the connec-

tion of a rotary encoder and setting of the parame-

ter "Speed control” (see page 83).

Fig. 8-24: Speed

The labeler speed and the product speed must be the same to achieve optimal results.

The adjustment range is 1.0 - 70.0 m/min.

Trigger delay

This parameter can be used to delay the labeling

process. i.e. determine by how many millimetres

the label must be offset when it is applied onto the

product. The adjustment range is 0 – 999.9 mm.

Fig. 8-25: Trigger delay

Label position

The label position is a value that ensures that the

label stops flush at the peel bar. The value can

here be adjusted and the label can be set forwards

or backwards. The adjustment range is -50.0 to

200.0 mm.

With the calibration function, this value is deter-

mined automatically (see page86).

Fig. 8-26: Label position

Delete configuration?

Set config?

Speed

Trigger delay

Label position
