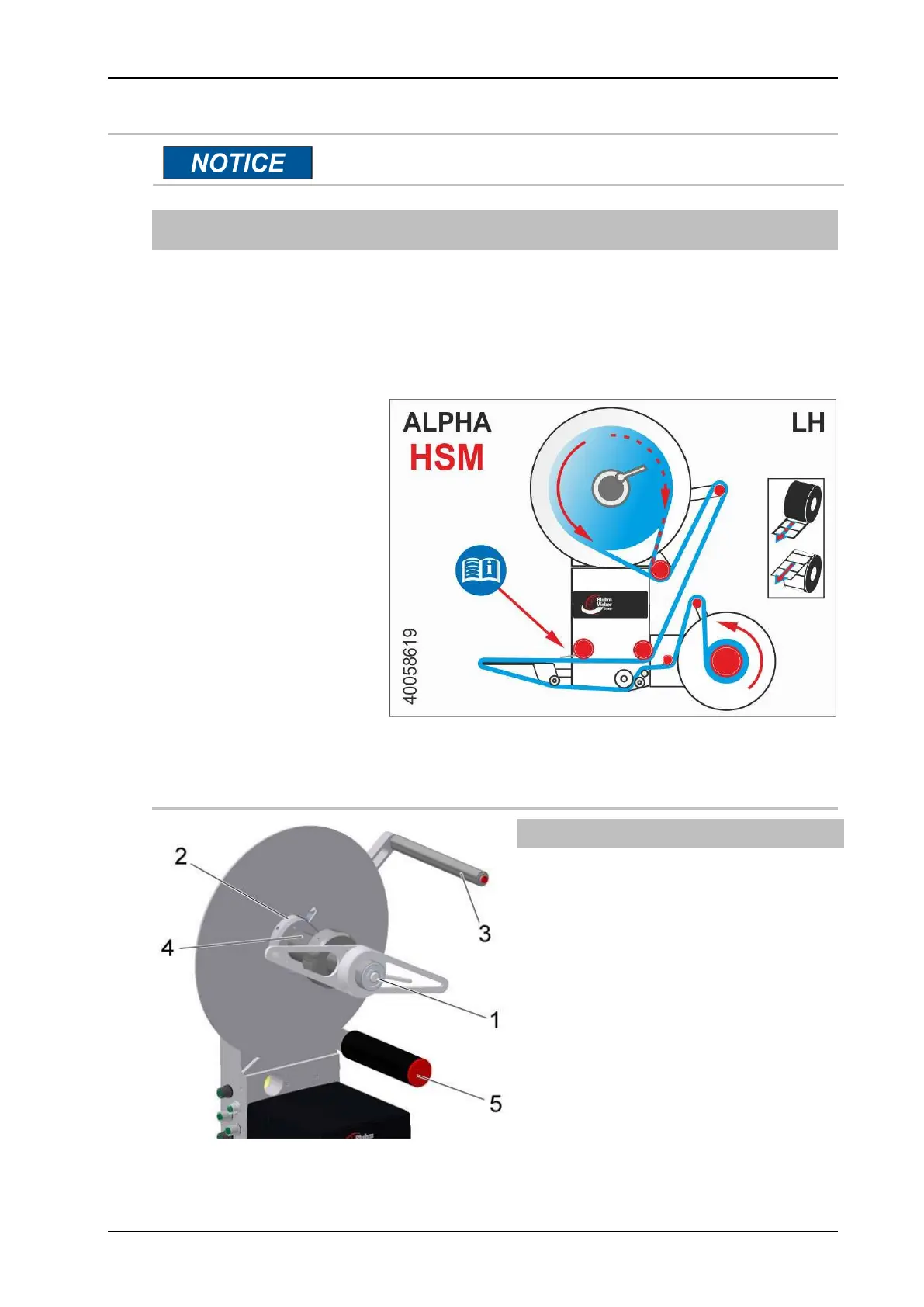

Weber Alpha HSM User Manual

Chapter 7 Settings and commissioning 40058725 BTA Alpha HSM
Version: 12.19.17 Page 54 of 112 GB
Loading the label material
Before inserting the label material, make sure that the la-
beler is switched off.
A system-specific threading pattern is affixed to each labeler, and this must always
be considered as a priority.
Prerequisites
 The labeler is turned off
 No product transport
 Label roll
Fig. 7-5: Example Threading pattern
Unwinder (mechanical)
Fig. 7-6: Unwinder mechanical, loading labels
No.
Designations
1
CLAMPING BAR
2
ADAPTER RING
3
DANCER ARM
4
CLAMPING AXLE
5
DEFLECTION ROLLER
