Chapter 4 Description of the labeler 40058725 BTA Alpha HSM
Version: 12.19.17 Page 28 of 112 GB
9
LABEL SENSOR
Stops the label feed after dispensing the label.
10
DISPENSING
Module for applying labels to the product.
11
PRESSURE APPLICATION DEVICE
Presses the label onto the product.
12
REWINDER
Accepts the empty carrier material.
13
DANCER ARM
Controls the winding speed and keeps the carrier material evenly tensioned.
14
CLAMPING AXLE
Accepts the carrier material.
15
ROTARY KNOB
Fixation of the carrier material on the clamping axis
16
HMI DISPLAY
Entering commands to the labeler and displaying operating states and error
messages.
Module overview
The Alpha HSM can be configured to meet customer requirements in several ways. Below
are some examples of modules:

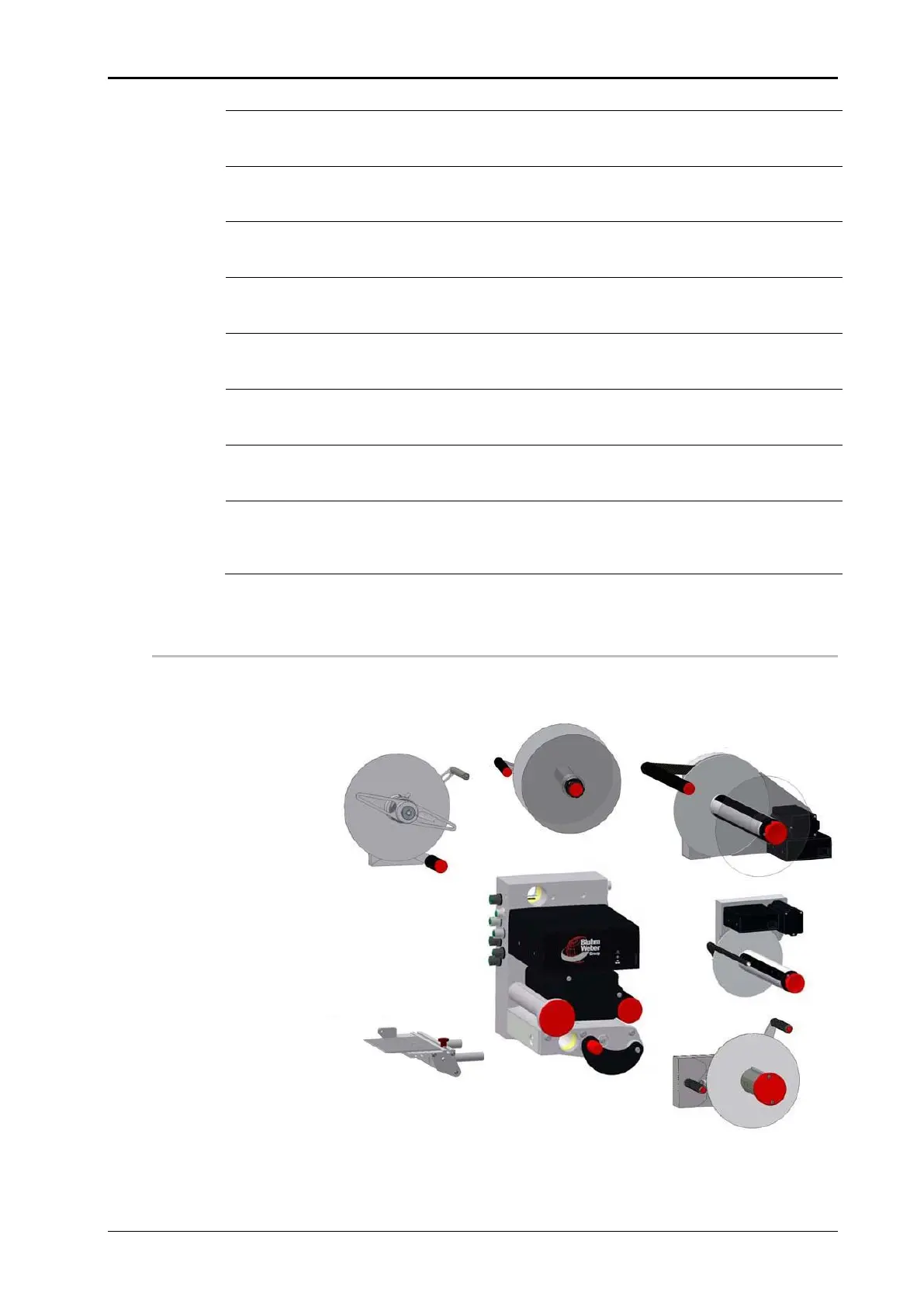

Fig. 4-2: Module examples (LH version)
