Weber Alpha HSM - Technical Specifications; Machine Specifications; Label Format and Performance Data

Chapter 3 Technical Specifications 40058725 BTA Alpha HSM
Version: 12.19.17 Page 24 of 112 GB
3. Technical Specifications
Dimensions (H x W x D in mm):
min. 580 x 310 x 590 (depending on the configuration)
Weight:
16 - 48 kg (depending on configuration, without label roll)
Power connection:
90 - 240 VAC / 47 - 63 Hz
Power consumption:
300 - 900 W (depending on configuration)
Ingress Protection:
IP65
Ambient temperature:
0 - 40 °C
Ambient conditions:
10 - 95% relative humidity (non-condensing)
*² Compressed air connec-
tion:
approx. 6 bar (according to DIN ISO 8573-1)
Compressed air quality according to DIN EN ISO 8573-1
- Residual oil content (quality grade 5) = 25 mg/m³
- Remaining dust (quality class 3) = 5µm ; 5 mg/m³
- Residual water (quality grade 4) = 6 g/m³ ; +3°C
*² Max. Compressed air
consumption:
up to 200 l/min
(0.5 litres per application cycle)
Design variants:
right-hand construction (RH), left-hand construction (LH)
*² only with an appropriately equipped labeler.
Information about other dimensions

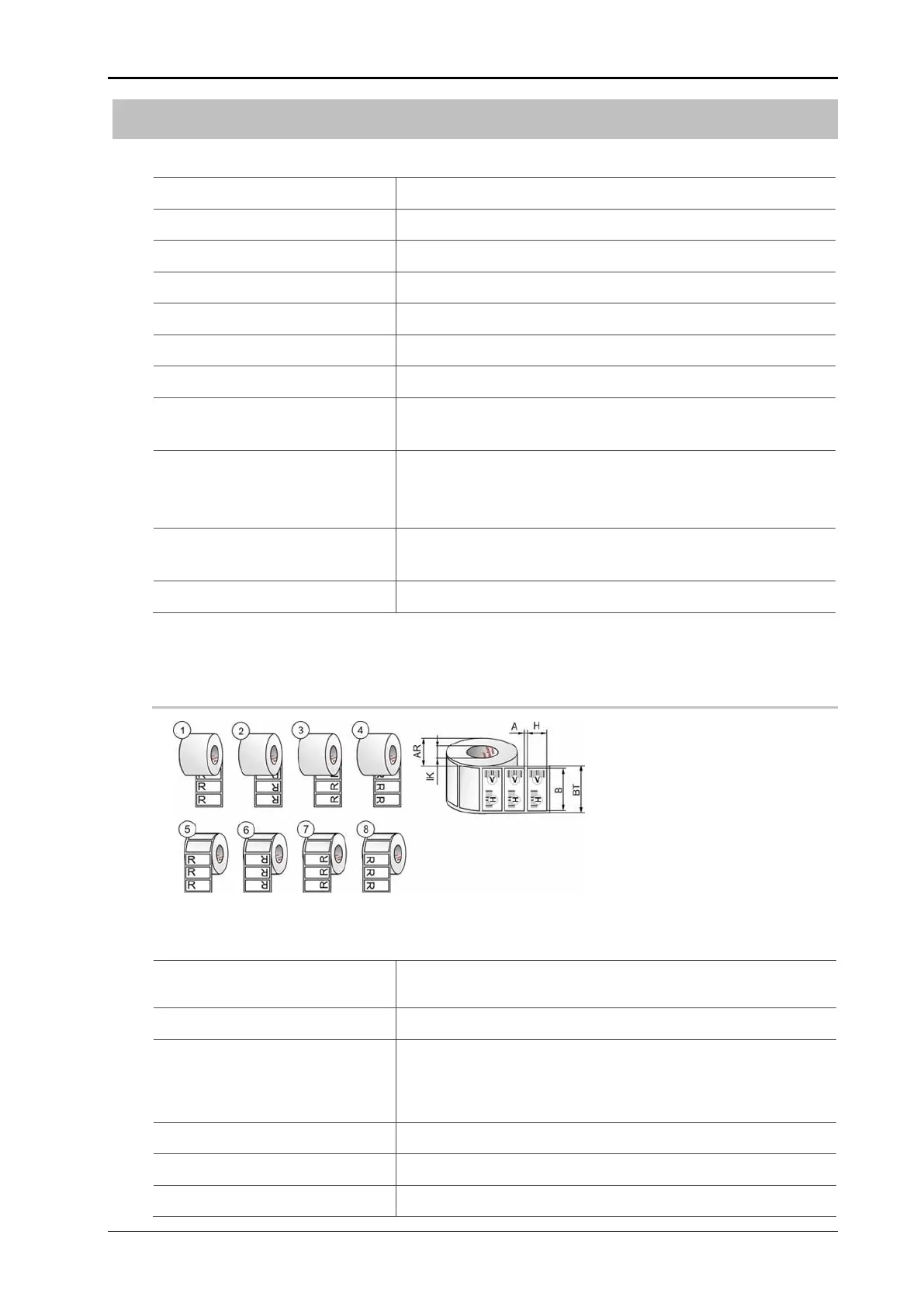

Fig. 3-1: Label layout
B
= WIDTH LABEL
BT
= WIDTH BACKING TAPE
H
= LABEL HEIGHT
IK
= DIAMETER CORE
AD
= DIAMETER ROLLER
A
= DISTANCE (GAP)
Label format (WxH):
min. 10x10 mm
max. 320x2000 mm
Label gap:
min. 3 mm
Label rolls outside diame-
ter:
Standard: 300 mm (corresponds to approx. 450 running me-
tres)
Maximum: 500 mm (corresponds to approx. 1200 running
metres)
Roller sleeve diameter:
76 mm (3"), additional Ø depending on configuration
Winding direction:
Labels pointing inwards or outwards
Spooler outer diameter:
min. 300 mm
