Label liner brake

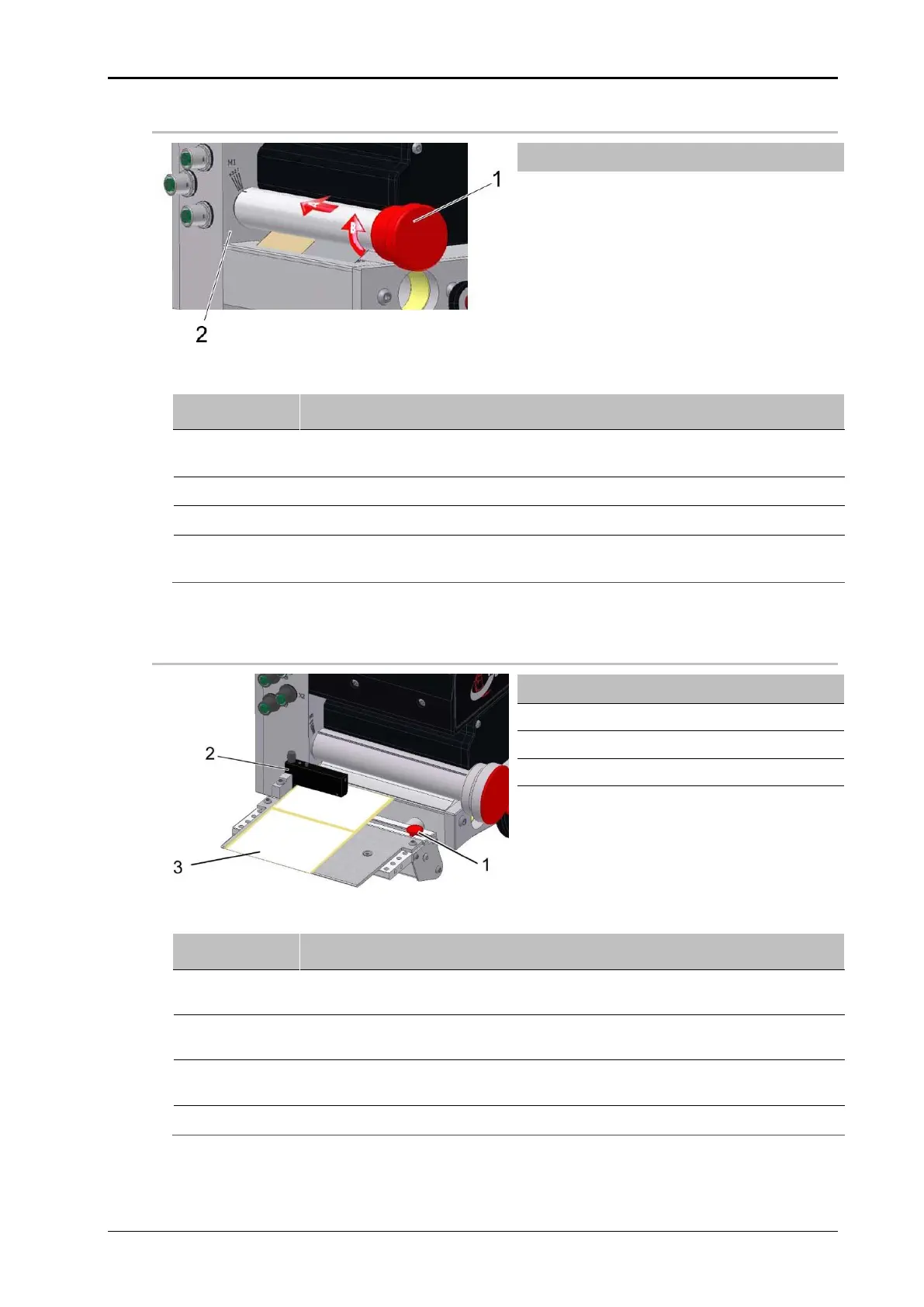

Fig. 7-8: Label liner brake, inserting labels
No.
Designations
1
WEB BRAKE
2
ENCLOSURE
Step
Approach
1
Press the liner brake (pos. 1, Fig. 7-8) to the enclosure (direction A) to re-
lease it.
2
Turn the liner brake clockwise (direction B) at the same time.
3
Slide the label web underneath the liner brake.
4
Pull the liner brake forward again and turn it counterclockwise until it engag-
es.
Application
Fig. 7-9: Peeler plate, insert labels
No.
Designations
1
PAPER GUIDE
2
LABEL SENSOR
3
LABEL
Step
Approach
1
Pass the label liner through the opening of the label sensor (pos. 2, Fig. 7-9)
the peeler plate and route it around the peeler plate.
2
Unroll approx. 1.5 m of label liner and remove all labels from the peeler plate
on the carrier material.
3
Guide the carrier material over the drive unit to the rewinder according to the
threading diagram.
4
Adjust the paper guide (pos. 1, Fig. 7-9) to the label liner.
